Introduction

Extracting data from Fusion Applications is one of the most common use cases for Oracle Data Transforms customers.

However, there is currently no out of the box feature to automatically clean up the PVO files stored in Object Storage.

The goal of this blog is to share a configuration that uses variables and a database function to help automate the cleanup process.



Mandatory Configurations

The data flows must be named using the following format:

DF_<functional_area>_<pvo_name>

Example:

DF_arbiccextractam_transactionlineextractpvo



Setting up Variable and Workflow

Variable

Create a variable with Data Type: Long Text.

In the Query, enter the following SQL:



Select ‘<%=odiRef.getPrevStepLog(“STEP_NAME”)%>’ from dual

This expression uses the ODI APIs to retrieve the name of the previous step when used in workflows.

Note: Do not need to click on validate button since it fails but after works in the workflow.



Database Function

Create a function in your Autonomous Database with the following input parameters:

  • v_previous_step – The name of the previous step, passed from the varible.
  • p_credential_name – by default is using ODI which is created in the Data Flow.
  • p_bucket_uri – The URI of the Object Storage Bucker.
    • Format: https://<namespace>.objectstorage.<region>.oci.customer-oci.com/n/<namespace>/b/<bucket_name>/o



create or replace FUNCTION search_and_delete_files(
    v_previous_step IN VARCHAR2,
    p_credential_name IN VARCHAR2 DEFAULT ‘ODI’,
    p_bucket_uri IN VARCHAR2
) RETURN NUMBER
IS
    v_count NUMBER := 0;
    v_index_table_name VARCHAR2(100);
    v_sql VARCHAR2(4000);

    — Cursor to get files containing the search text
    CURSOR c_files IS
  SELECT distinct object_name
        FROM TABLE(DBMS_CLOUD.LIST_OBJECTS(
            credential_name => p_credential_name,
            location_uri => p_bucket_uri
        )) where object_name like ‘%’ || v_previous_step || ‘%’;

BEGIN

    FOR rec IN c_files
    LOOP
        — Delete each file found
        BEGIN
            DBMS_CLOUD.DELETE_OBJECT(
                credential_name => p_credential_name,
                object_uri => p_bucket_uri || ‘/’ || rec.object_name
            );
            v_count := v_count + 1;

            DBMS_OUTPUT.PUT_LINE(‘Deleted: ‘ || rec.object_name);
        EXCEPTION
            WHEN OTHERS THEN
                DBMS_OUTPUT.PUT_LINE(‘Error deleting ‘ || rec.object_name || ‘: ‘ || SQLERRM);
        END;
    END LOOP;


    RETURN v_count;

EXCEPTION
    WHEN OTHERS THEN
        DBMS_OUTPUT.PUT_LINE(‘Function error: ‘ || SQLERRM);
        RETURN -1;
END;

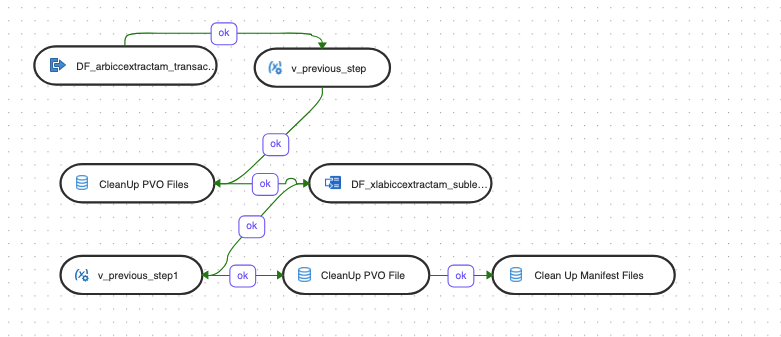

Workflow Setup

Workflow



  • Step 1: Add the Data Flow that performs the data extraction.
  • Step 2: Add the variable step and set its Operation to Refresh Variable.
  • Step 3: Add a SQL component that calls the database function using the output from the variable.
  • The steps 4 to 6 are optional and you can add even more depending on number of Data Flows you want to execute.
  • Step 7: Add a SQL component that calls the database function to delete the manifest files.



Conclusion

Automating PVO file cleanup in Object Storage with Oracle Data Transforms saves time and reduces manual effort. This solution, leveraging variables, database functions, and workflows Implement and customize it to optimize your operational processes.
