Configuring Web Application Acceleration

October 19, 2023 | 4 minute read
Shawn Moore
Principal Cloud Network Architect
Text Size 100%:

OCI Load Balancers provides the ability to improve web performance even further with the introduction of Web Application Acceleration. This feature decreases latency between the client and the web server by using two functions on the load balancer, caching and compression.

Caching will store content retrieved from the back web server on the load balancer. Reducing the need for the client to retrieve this data from the backend web server and relieving system load on the server. Compression improves performance even further by reducing the size of web content that is delievered to the client over the network. This compressed content is delivered in gzip format.

Walkthrough

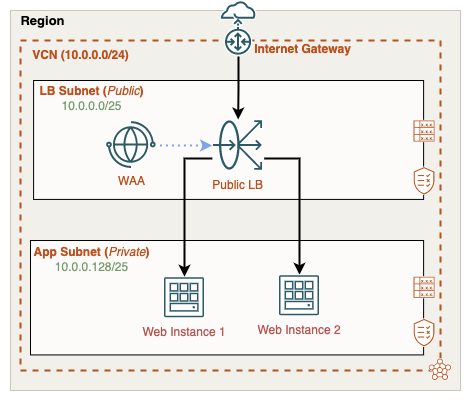

This blog will guide you through the process of enabling Web Application Acceleration, applying it to the load balancer, and verifying that the feature is working. We will use a simple two-tier architecture with a public-facing load balancer and two backend web servers:

WAA Diagram

Be sure to view the companion video below, here I cover the entire process from start to end:

Before we can take advantage of web acceleration we'll need two things, a WAA policy and within the policy an acceleration. The acceleration gets attached to the load balancer. A WAA policy can host many accelerations but an acceleration can only be attached to one load balancer instance.

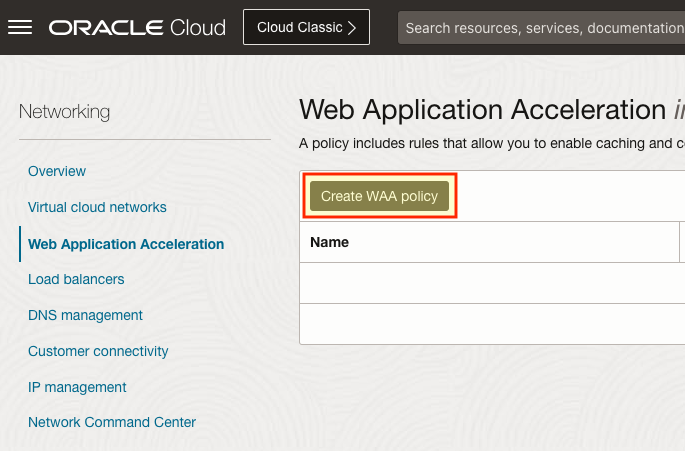

In the OCI Console, we'll begin in the Networking menu, here you'll see the Web Application Acceleration menu link on the left. Once selected, click Create WAA policy:

WAA MENU

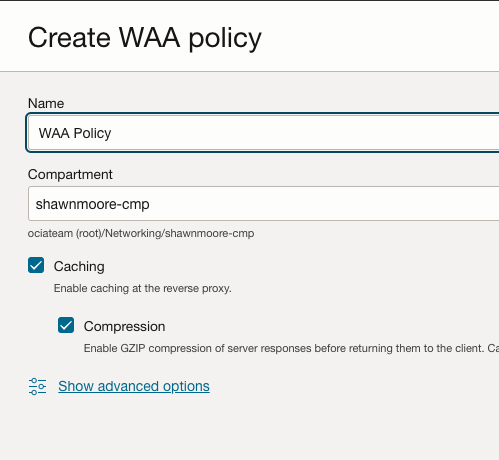

Give the WAA policy a name and select the appropriate compartment for the policy. Note that you can enable or disable the caching or compression capabilities available in the policy.

CREATE WAA POLICY

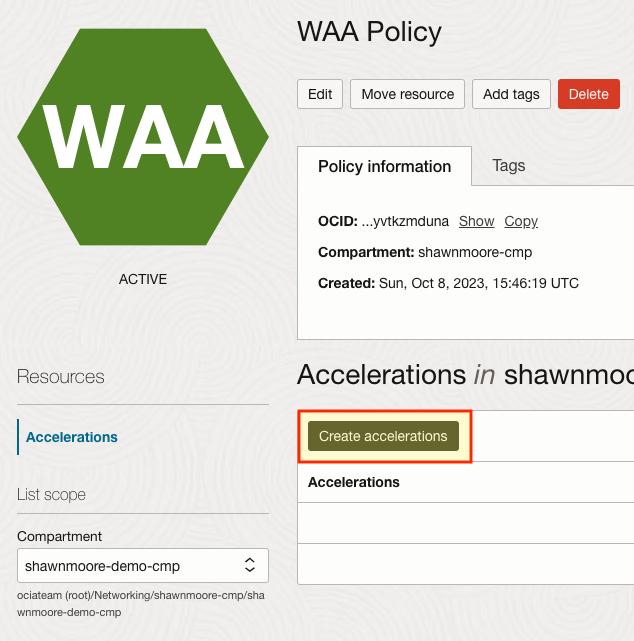

Once the policy is created we can now create the actual acceleration. Select Create accelerations Remember that each acceleration will be assigned to a specific load balancer.

WAA POLICY MENU

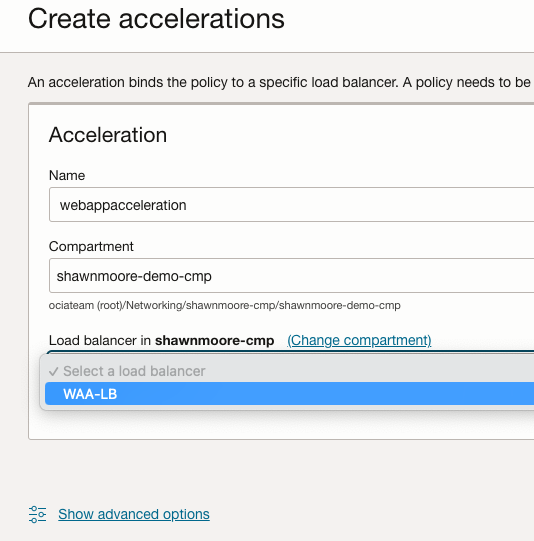

In the accelerations configuration page, provide a name and then select the appropriate load balancer that will use the acceleration. Once the load balancer is selected, click Create acceleration:

CREATE ACCELERATIONS

After a few moments, the acceleration will begin performing caching or compression operations on the incoming web traffic. We can confirm that this is working by viewing the metrics and logs associated with the acceleration.

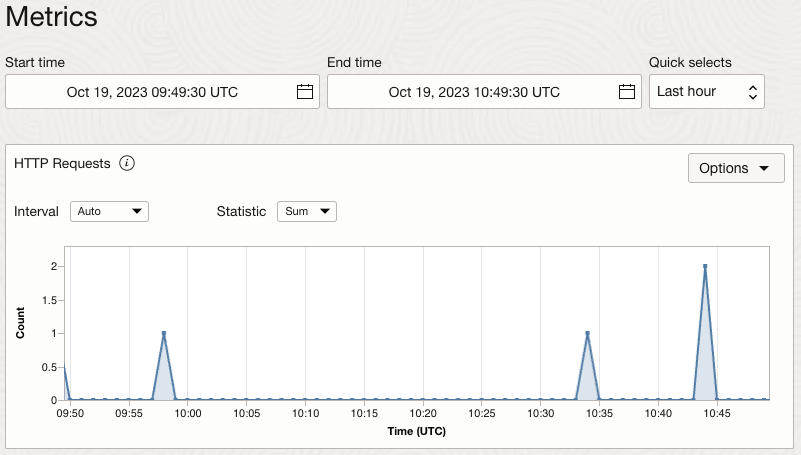

Metrics provides many different stats such as the amount of HTTP requests received, Response size in bytes, and compression metrics.

WAA METRICS

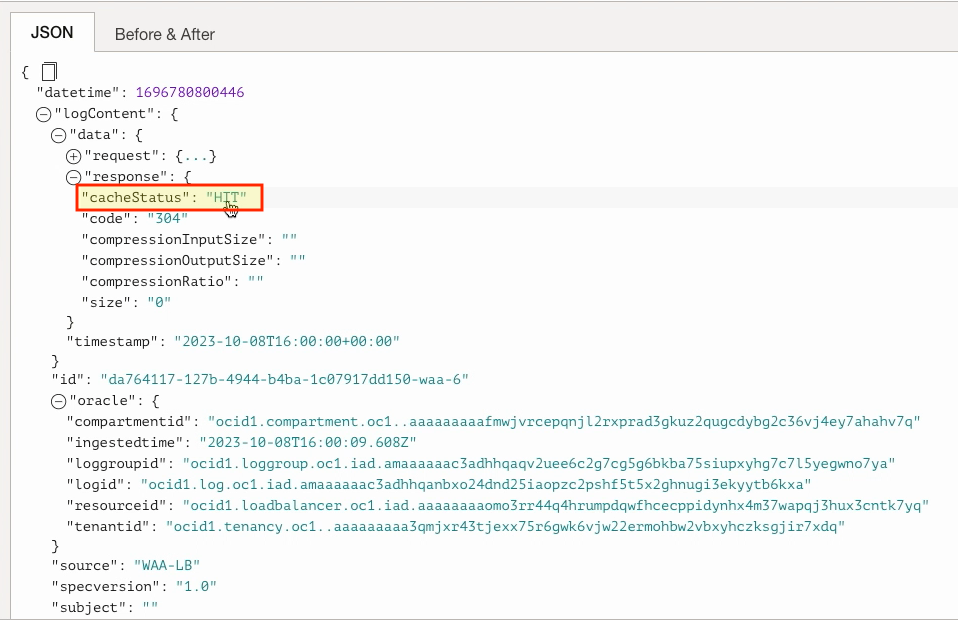

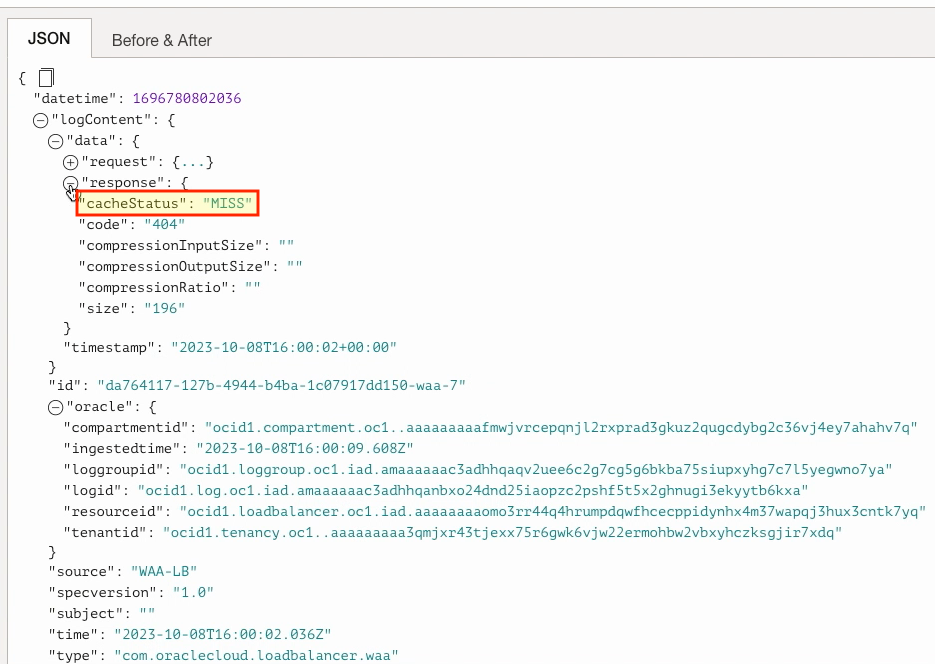

Digging further into the acceleration logs, we can find extra information such as hits or misses from the load balancer cache. Both of these results can be found by expanding the JSON log file and clicking the "response" section of the file. The "cacheStatus" shows if the particular piece of data requested was delivered from the load balancer cache ("HIT") or the backend server ("MISS").

WAA LOG HIT

WAA LOG MISS

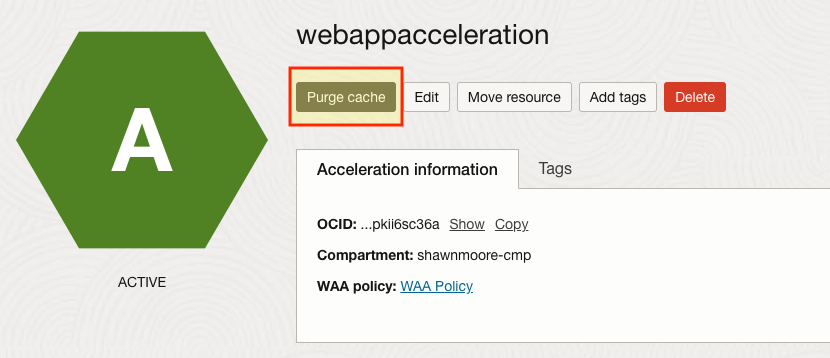

If for whatever reason cached content on the load balancer needs to be removed you can also purge the current cache. This is an irreversible action once performed. Also, note that the load balancer only holds 100MB worth of data before it begins clearing out unused cache files. Where it will remove resources that have been accessed the fewest times.

PURGE WAA

This concludes the guide on how to enable acceleration on your load balancer. To learn about Web Application Acceleration, be sure to review the reference links below.

References

Introducing Web Application Acceleration

Official Documentation
