Background

* This blog was last tested on OAC 105.8.0-133 (Version 5.8) + ADW 18c + Oracle Analytics Client Tools 5.8.0 [aka Oracle BI Administration Tool Version 12.2.5.8.0]  + SQuirreL SQL Client Version 4.1.0 + Windows 10 Pro 64-bit OS *

This article walks through the steps to query an Oracle Analytics Cloud (OAC) and Oracle Fusion Analytics Warehouse (FAW) data model with SQuirreL (an open-source Java SQL Client).

The blog demonstrates both Resource Owner and JSON Web Tokens (JWT) assertion types.

This functionality has been available since OAC 5.6.

This blog was tested on an OAC instance that was created after 12th May 2020. If your OAC was created prior, see OAC JDBC Connection documentation for two extra steps to configure refresh security tokens [i.e. Set Up Refresh Security Token Generation Steps 2 to 4].

As of OAC 5.8 the JDBC driver cannot be used with Tableau.

During testing of this blog the JDBC driver was also copied to MacOs high Sierra 10.13.6 to test the connection to OAC/FAW.

JDBC users, regardless of tools, require properly OAC/FAW licensing to be compliant.

 Install Developer Client Tool for OAC

Download Developer Client Tool for OAC from here. The Client Tool version should match the OAC/FAW version.

Install the Client Tool on a Windows OS.

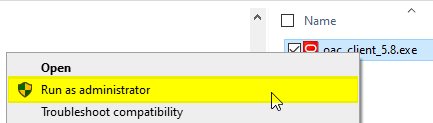

Unzip and run the .exe with “Run as Administrator”:

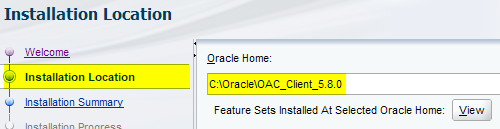

It is recommended to include the Client Tool version number in the install home directory. This allows for multiple versions of the Client Tool to be installed and easily identified.

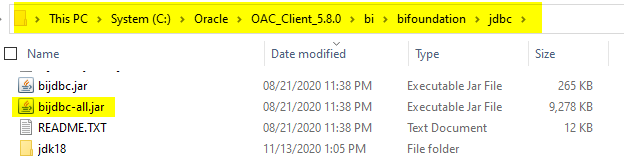

Copy the bijdbc-all.jar file to the OS you wish to connect from or leave it where it is if connecting from Windows OS where client was installed.

 Configuring Assertion Type Resource Owner

These steps must be performed by an administrator.

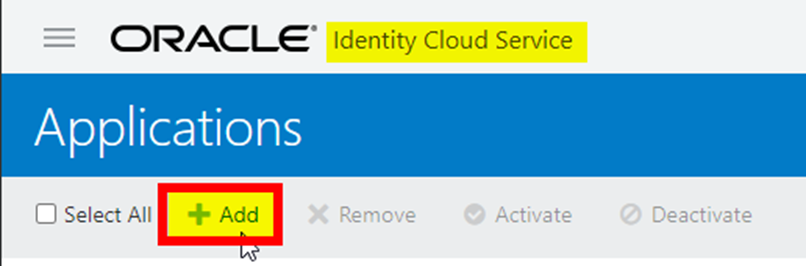

Create a new Application from Oracle Identity Cloud Service (IDCS) -> Applications -> Add -> Select Confidential Application

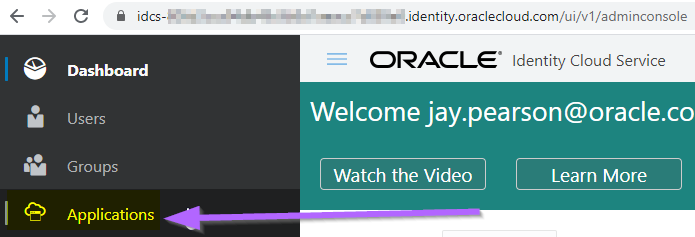

or directly from IDCS Admin Console URL: https://idcs-<your idcs>.identity.oraclecloud.com/ui/v1/adminconsole/

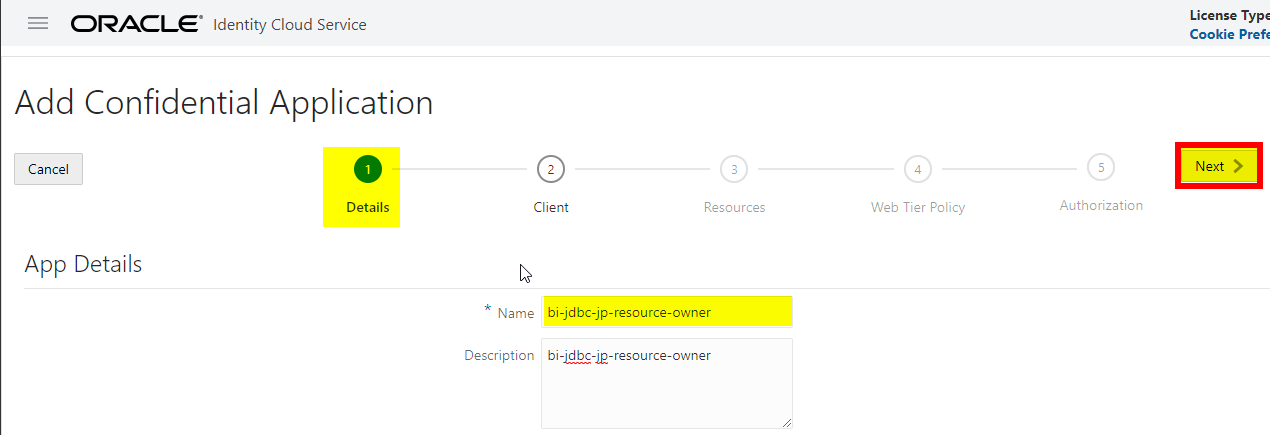

Specify a Name [i.e. bi-jdbc-jp-resource-owner] and description -> click Next

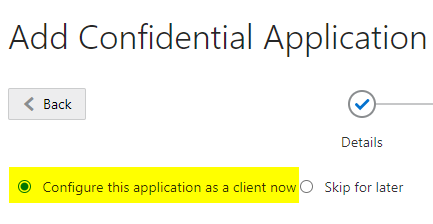

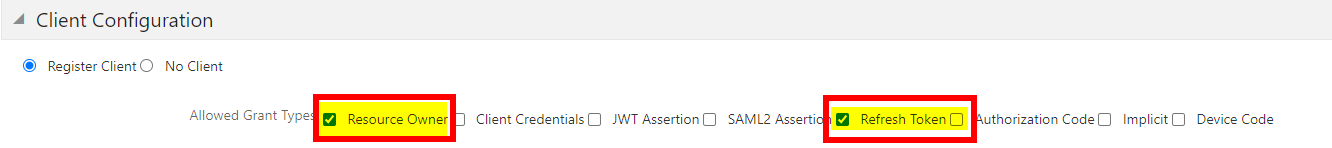

Select “Configure this application as a client now”, “Allow Grant Types” = “Resource Owner” and “Refresh Token”.

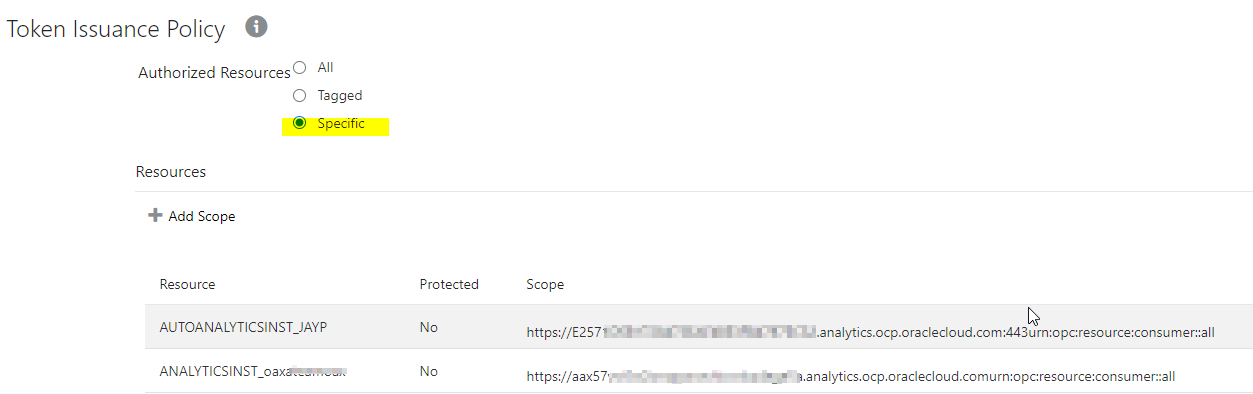

Select “Authorized Resources” = Specific -> click + Add Scope -> add OAC/FAW Resources.

For steps on how to locate Resource Names – go to “Section 6 – Appendix – How to Find OAC/FAW Resource Names”.

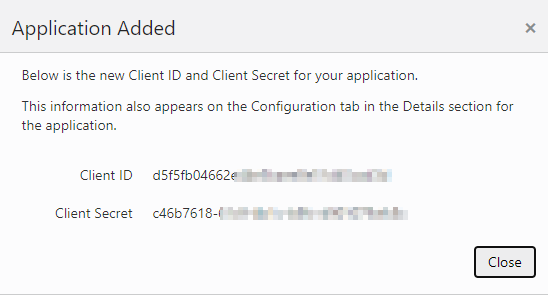

Click Next -> Next -> Next -> Finish -> Take a note of the Client ID & Client Secret

Activate

 Configuring Assertion Type JWT

Generate Key Pair and Key Store

On Windows -> Start -> Cmd -> Right Click -> Run as administrator

cd C:\Oracle\OAC_Client_5.8.0\bi\bifoundation\jdbc

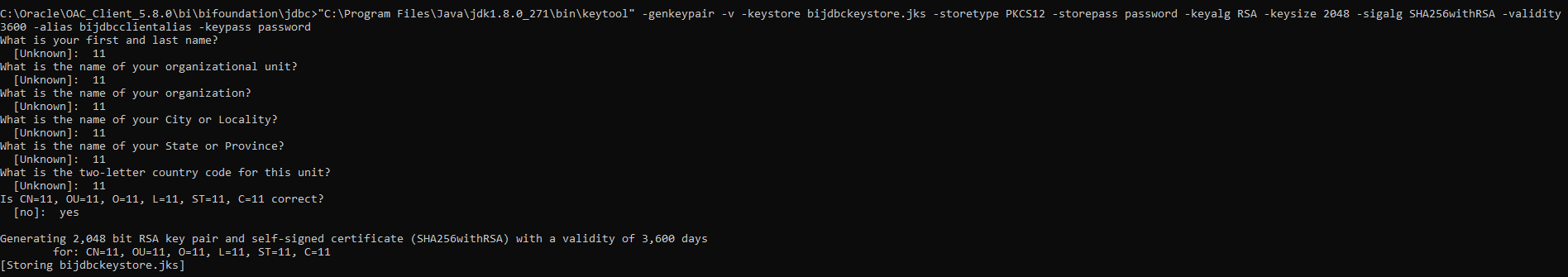

“C:\Program Files\Java\jdk1.8.0_271\bin\keytool” -genkeypair -v -keystore bijdbckeystore.jks -storetype PKCS12 -storepass password -keyalg RSA -keysize 2048 -sigalg SHA256withRSA -validity 3600 -alias bijdbcclientalias -keypass password

Generate Public Certificate

“C:\Program Files\Java\jdk1.8.0_271\bin\keytool” -exportcert -v -alias bijdbcclientalias -keystore bijdbckeystore.jks -storetype PKCS12 -storepass password -file bijdbcclient.cert -rfc

Extract Private key in PKCS8 Format

On windows Cygwin64 Terminal was required to run.

 cd “C:\Oracle\OAC_Client_5.8.0\bi\bifoundation\jdbc”

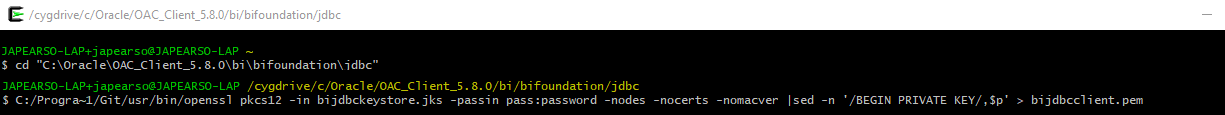

 C:/Progra~1/Git/usr/bin/openssl pkcs12 -in bijdbckeystore.jks -passin pass:password -nodes -nocerts -nomacver |sed -n ‘/BEGIN PRIVATE KEY/,$p’ > bijdbcclient.pem

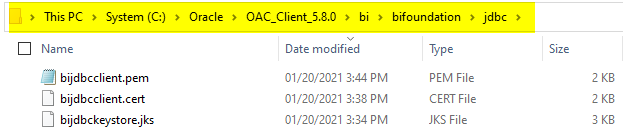

Move files to the desired client or leave as is if already running from client.

Follow the same instructions in Step 2. Select “JWT Assertion” instead of “Resource Owner”. Keep “Refresh Token” selected.

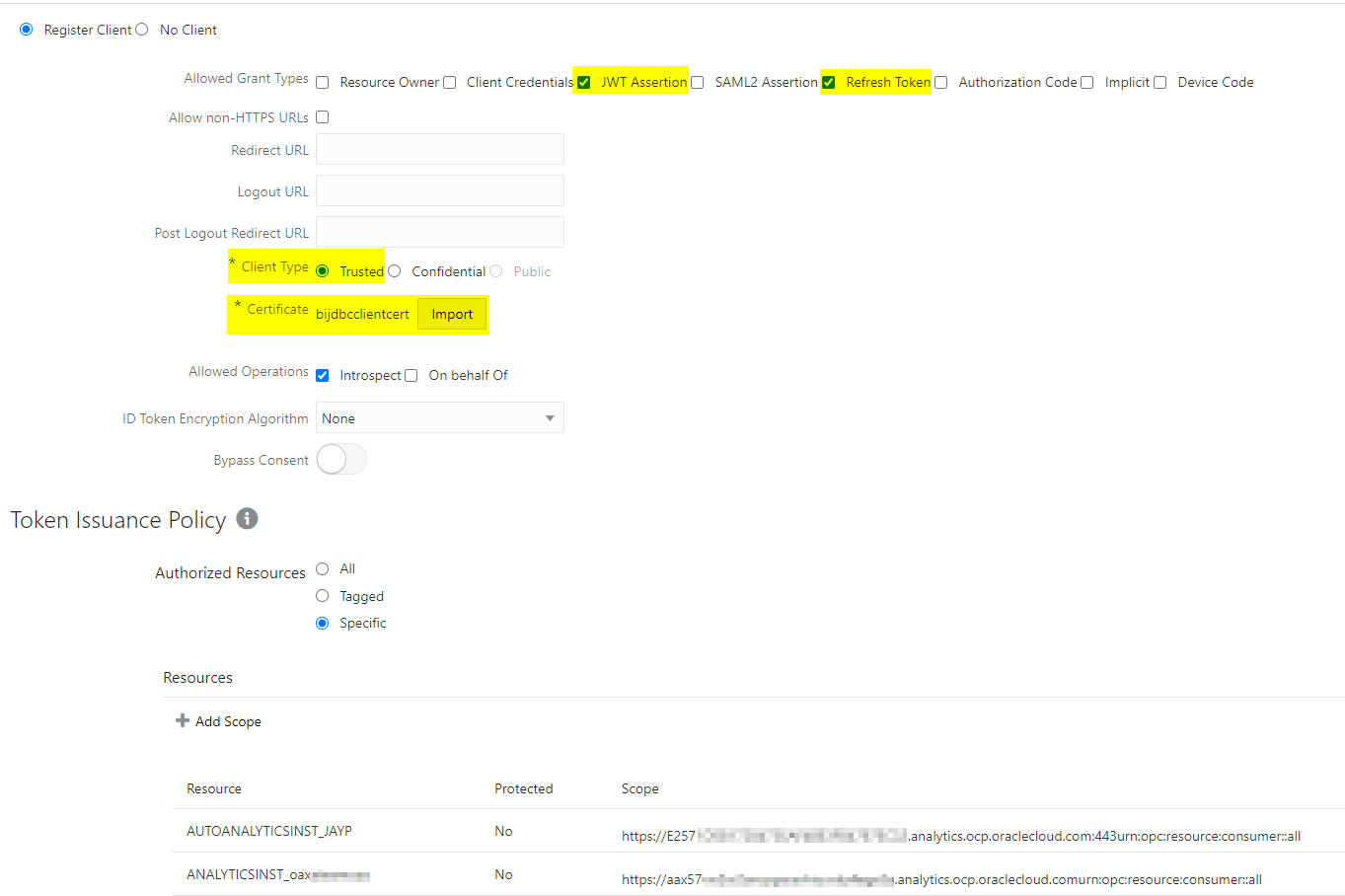

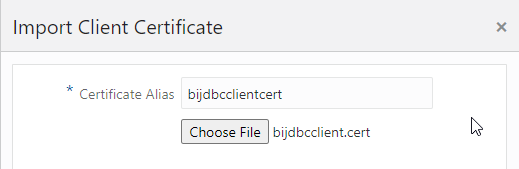

Select Client Type = Trusted and import the cert file.

 Create bijdbc.properties file

Using Notepad or preferred text editor to create a bijdbc.properties file.

For Resource Owner the following six options are required:

idcsEndpointUrl=
idcsClientId=
idcsClientScope=
idcsClientSecret=
user=
password=

~
LOGFILEPATH & LOGLEVEL are optional should debugging be required.

~

Only one Resource Scope can be referenced per properties file.

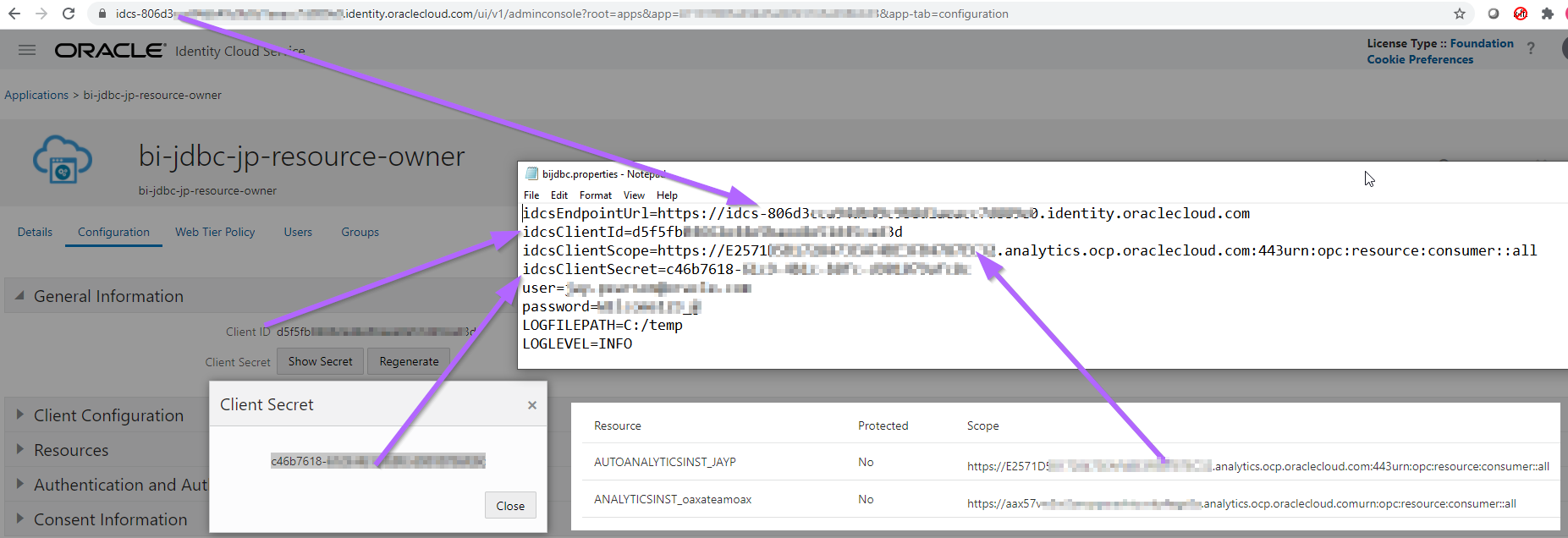

The below screenshot is pointing to OAC.

To point to FAW create another properties file and change the idcsClientScope.

i.e. idcsClientScope=https://aax57xxxxxxxxx.analytics.ocp.oraclecloud.comurn:opc:resource:consumer::all

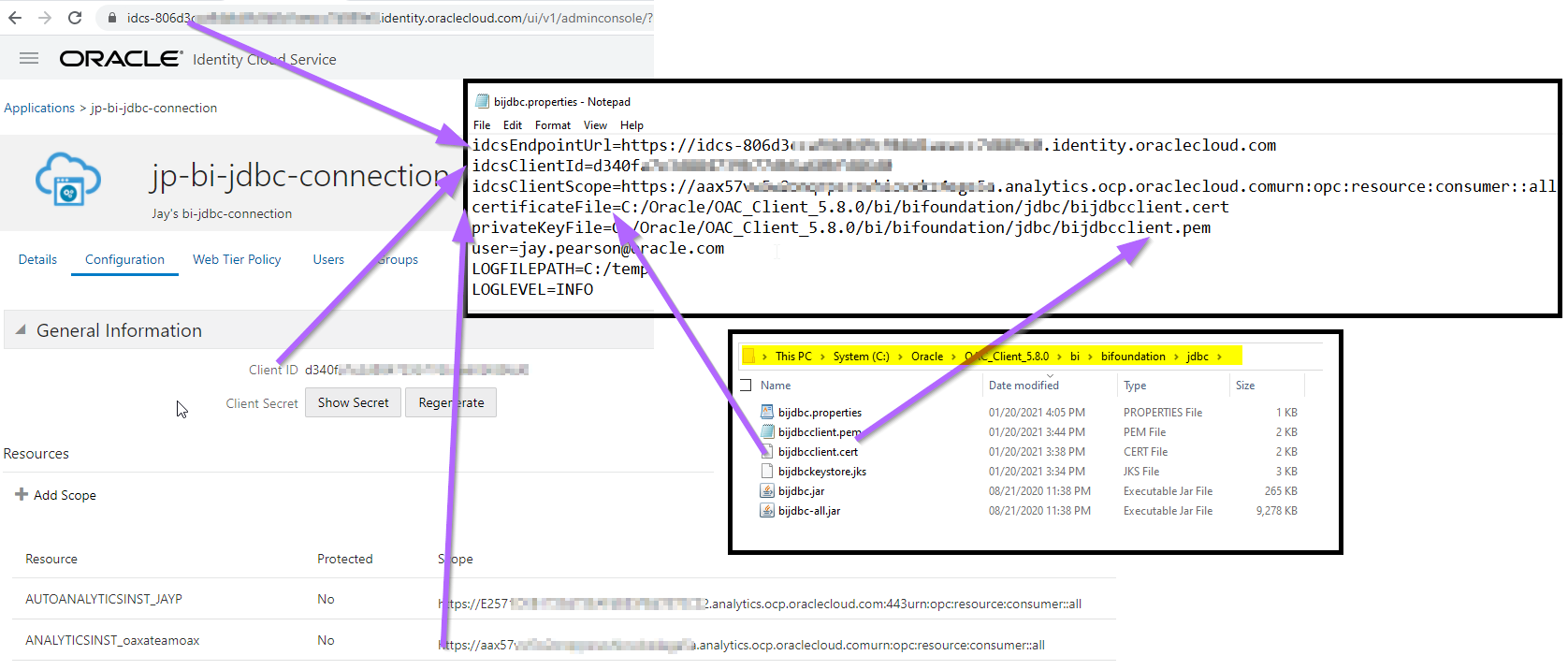

For JWT the following six options are required:

idcsEndpointUrl=
idcsClientId=
idcsClientScope=
certificateFile=
privateKeyFile=
user=

Optional:
LOGFILEPATH=C:/temp
LOGLEVEL=INFO

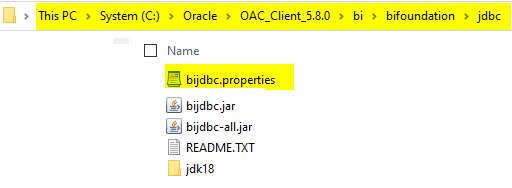

Save bijdbc.properties file. For ease, chose to save it in the same location as the bijdbc-all.jar file.

 Configure SQuirreL SQL Client

Note: This blog was tested on an OAC instance that was created after 12th May 2020. The API URL is slightly different when using an older version.

Oracle Cloud Infrastructure 12th May 2020 or later or Oracle Cloud Infrastructure (Gen 2)
URL: jdbc:oraclebi:https://<host>:<port>/api/jdbc?

URL: Oracle Cloud Infrastructure before Before 12th May 2020
jdbc:oraclebi:https://<host>:<port>/bimodeler/api/jdbc?

See OAC JDBC Connection documentation for more info.

~

Download SQuirreL SQL Client from here.

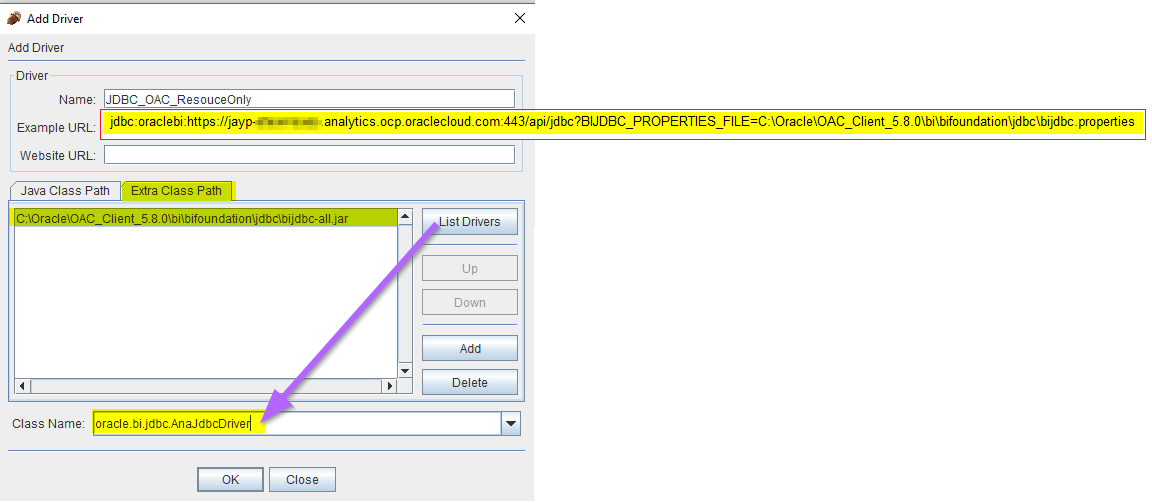

Add Driver -> Click “Extra Class Path” tab -> Click Add to select the bijdbc-all.jar

Example URL: jdbc:oraclebi:https://jayp-xxx.analytics.ocp.oraclecloud.com:443/api/jdbc?BIJDBC_PROPERTIES_FILE=C:\Oracle\OAC_Client_5.8.0\bi\bifoundation\jdbc\bijdbc.properties

Click List Drivers -> Select Class Name = oracle.bi.jdbc.AnaJdbcDriver.

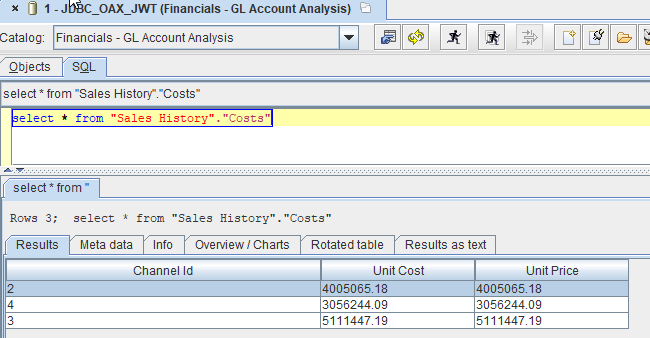

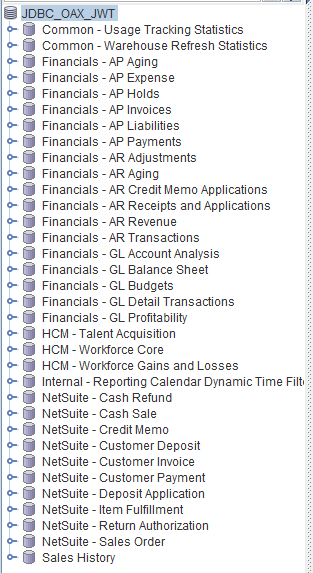

Once connected you can browse and query the FAW or OAC RPD presentation layer.

 Appendix – How to Find OAC/FAW Resource Names

Log into Oracle Cloud

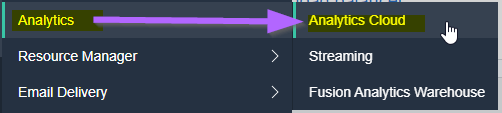

To get OAC Resource name: Analytics -> Analytics Cloud -> Select Region -> Select Compartment -> (may have to select Other Analytics)

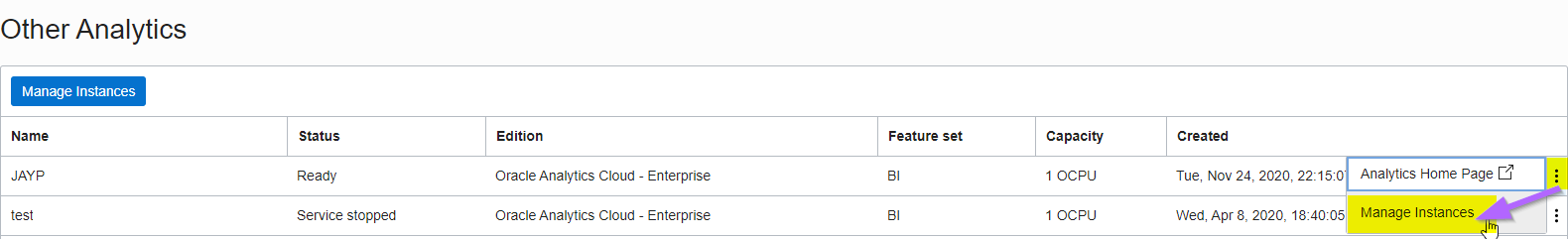

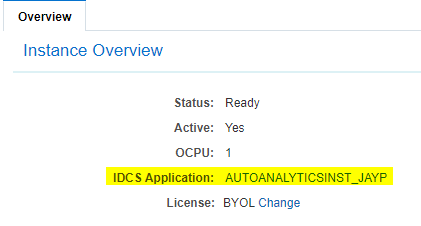

Far right click on 3 vertical dots -> Manage Instances -> Click on instance -> IDCS Application = Resource name

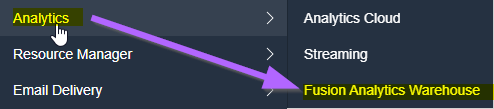

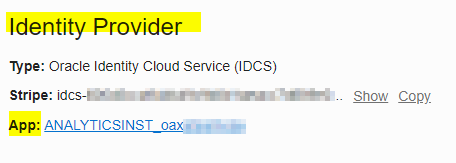

To get FAW Resource Name: Select Region -> Analytics -> Fusion Analytics Warehouse -> Select Compartment -> Click on Instance -> Click on Additional Details tab -> under Identity Provider -> App = Resource Name

 Want to Learn More?

Click here for more A-Team Oracle Analytics (OAC) Blogs.

Click here for more info on Query Data Models Remotely Using JDBC.

 Summary

This article walked through the steps to query an Oracle Analytics Cloud (OAC) and Oracle Fusion Analytics Warehouse (FAW) data model with SQuirreL (an open-source Java SQL Client). The blog demonstrated both Resource Owner and JSON Web Tokens (JWT) assertion types.
