Best Practices from Oracle Development's A‑Team

  • March 3, 2021

Reference Architecture - Fusion HCM Data Replication into FAW ADW Using ODI Marketplace and HCM Extract - Part 1

Matthieu Lombard
Consulting Solution Architect

Validation

Content validated on 3/1/2021 with

  • ODI Version 12.2.1.4.200304.2238
  • ADW Version Oracle Database 19c Enterprise Edition Release - Production Version 19.5.0.0.0
  • Fusion 21A (11.13.21.01.0)
  • FAW Version  20.R2.P1

 Background

Fusion HCM Analytics provides comprehensive workforce, turnover data sourced from Fusion HCM Cloud in a warehouse designed to support broad set of analytics use cases. In some specific use cases, Fusion HCM Analytics data can be complemented with additional Payroll, Cumulative Earning – Deduction or Costing data sets. For such data, Fusion HCM Cloud provide with an extract mechanism named HCM Extracts. HCM Extracts uses BI Publisher as the delivery mechanism for extracted data.

This blog is part of in a series covering topics on how to utilize Oracle ETL / Data Integration tools to extract data from various data sources to complement Fusion Analytics Warehouse factory data. Future blog topics will cover extracting from: Oracle SaaS Applications, Oracle on-premise applications (e.g. EBS), and other Oracle applications such as Responsys, Eloqua and third party data sources like Salesforce or Workday.

This blog walks though how to configure Oracle Data Integrator (ODI) on Oracle Cloud Marketplace to replicate data from Fusion HCM Cloud, using HCM Extracts, into an Autonomous Data Warehouse (ADW) database that is part of the FAW product.

The "Master" topic will divided in four parts :

  • Part 1 - Setting up the SFTP Server using Object Storage Bucket mounted as a file system on the ODI VM
  • Part 2 - Defining and preparing the HCM extract to deliver to SFTP  Server using Object Storage Bucket mounted as a file system on the ODI VM
  • Part 3 - Configuring ODI Artefacts to consume the HCM Extract
  • Part 4 - Scheduling the HCM Extracts from ODI

This current article covers Part 1 - Setting up the SFTP Server using Object Storage Bucket mounted as a file system on the ODI VM.

Suggested Prerequisite Reading Material:

Using Oracle Cloud Marketplace

* Working with HCM Extracts

Overall prerequisites

* Have access to an Fusion HCM Cloud instance

* Have access to an ODI Marketplace instance

* Follow the steps in the first blog for instructions on:

Policies Assignment (Step 1)

SSH key-pair Generation (Step 4-b and 4-c)

ODI Marketplace Provisioning (Step 2)

ADW Configuration (Step 5-h, 5-i, 5-j and 6-d)

 Architecture Overview

The diagram below details the architecture blue print for this use case:

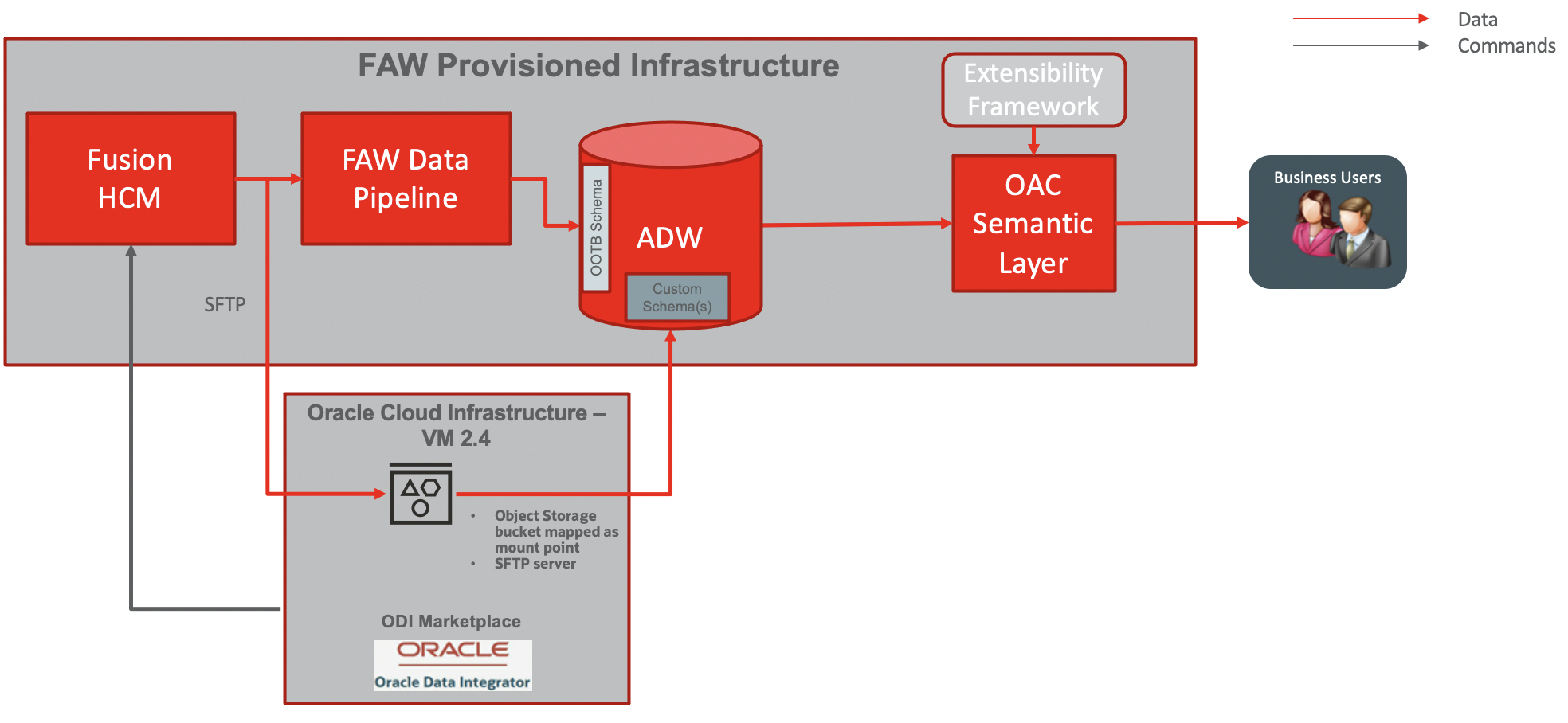

Figure 1 : Architecture overview

The data flow is as follow:

  • ODI Market Place (MP) will be installed in Linux VM
  • An object storage bucket will be mounted as a folder mount point on the ODI MP VM (with s3sfuse)
  • An SFTP Server will be configured with private key authentication with opc user on the ODI VM
  • Create and Prepare an HCM Payroll Data Extract
    • Edit/ Create HCM Extract Definition in Fusion HCM : Extract Parameters, Blocks + Filter Records, Data Elements, Validate Extract
    • Integrate HCM Extract with BIP: Create RTF template and report in BI Publisher
    • Set Up Report Options: Define Delivery Method (SFTP) and Associate Report location in BI
    • Run / Schedule Extract using FlowActionService SOAP API to push the HCM Extract to SFTP
    • ODI MP will wait for the HCM Extract to be deliver to the SFTP before integrating it into ADW with the LKM File to Oracle
  • All additional transformations will happen inside the ADW
  • HCM extracts can be scheduled once every day
  • Semantic model will be extended by customizing an existing subject area or addition of a new subject area to allow reporting on HCM data extracted in ADW, as per the CEAL Team blog available here

 Setting up the SFTP Server using Object Storage Bucket mounted as a file system on the ODI VM

Setting up s3fs-fuse on the ODI VM

s3fs-fuse allows Linux and macOS to mount an OCI bucket via FUSE. s3fs preserves the native object format for files, allowing use of other tools like OCI CLI.

Installing s3fs-fuse on the ODI VM

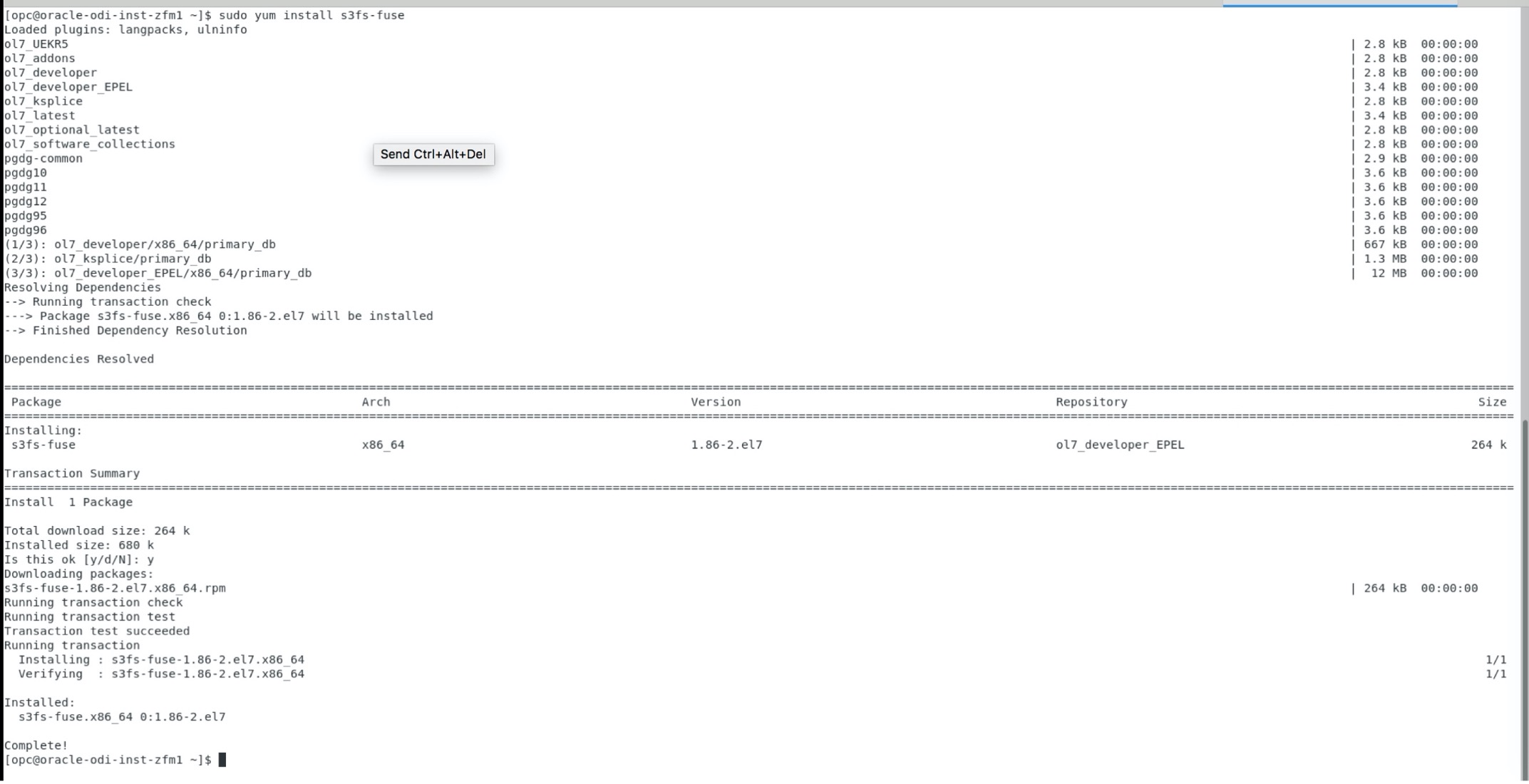

s3fs-fuse is being installed using yum so the installation required the ODI VM to have access to internet. To install s3fs-fuse, execute the following command

sudo yum install s3fs-fuse



Figure 2 : s3fs-fuse installation

Configuring the s3fs-fuse access credentials and mount a bucket

To configure the credentials for s3fs-fuse, one needs to generate a secret key for an OCI local user (not federated), update the s3fs-fuse password file and execute the s3fs-fuse mount command

a) Connect to the OCI console with the OCI local user

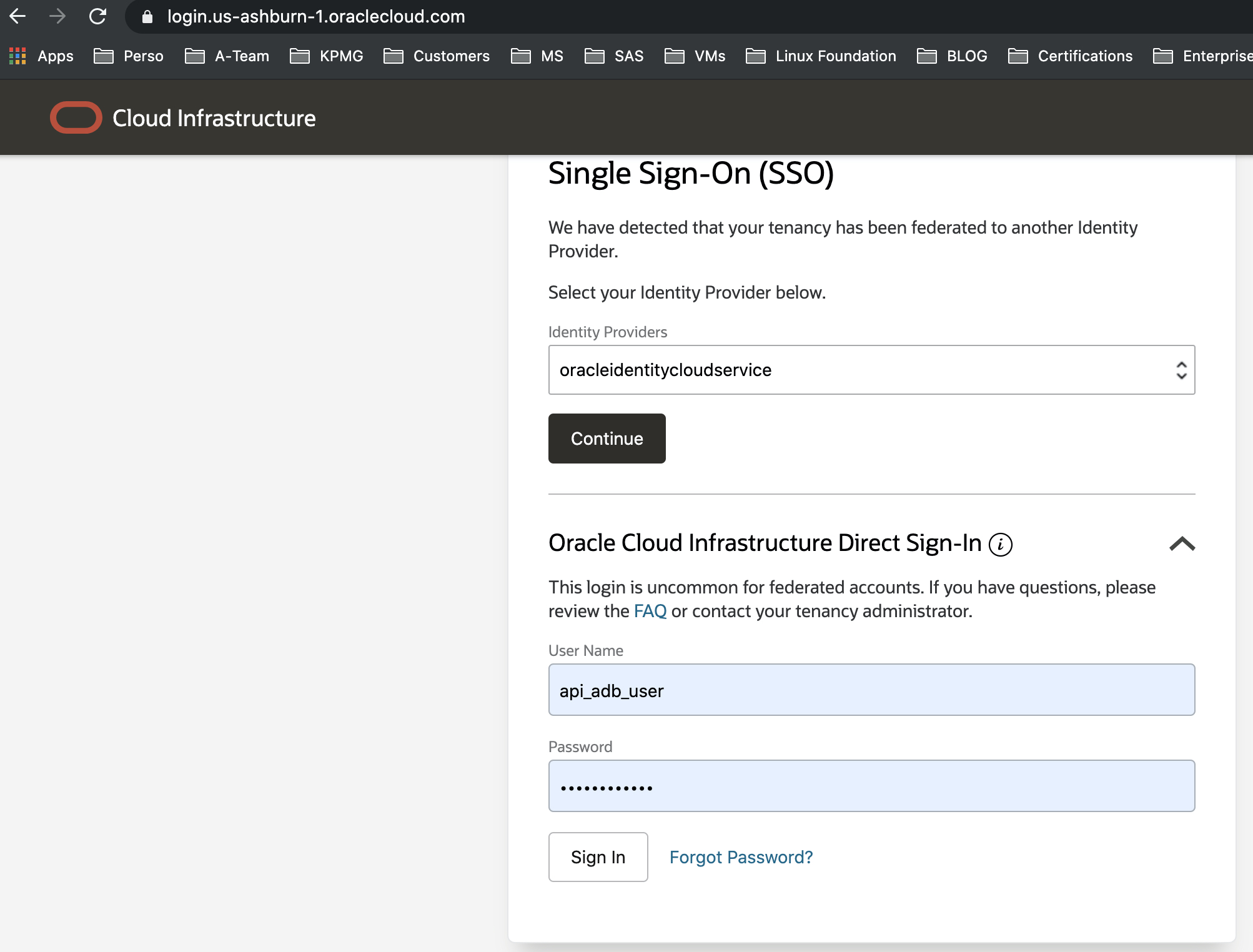

Figure 3: Login with OCI Local User

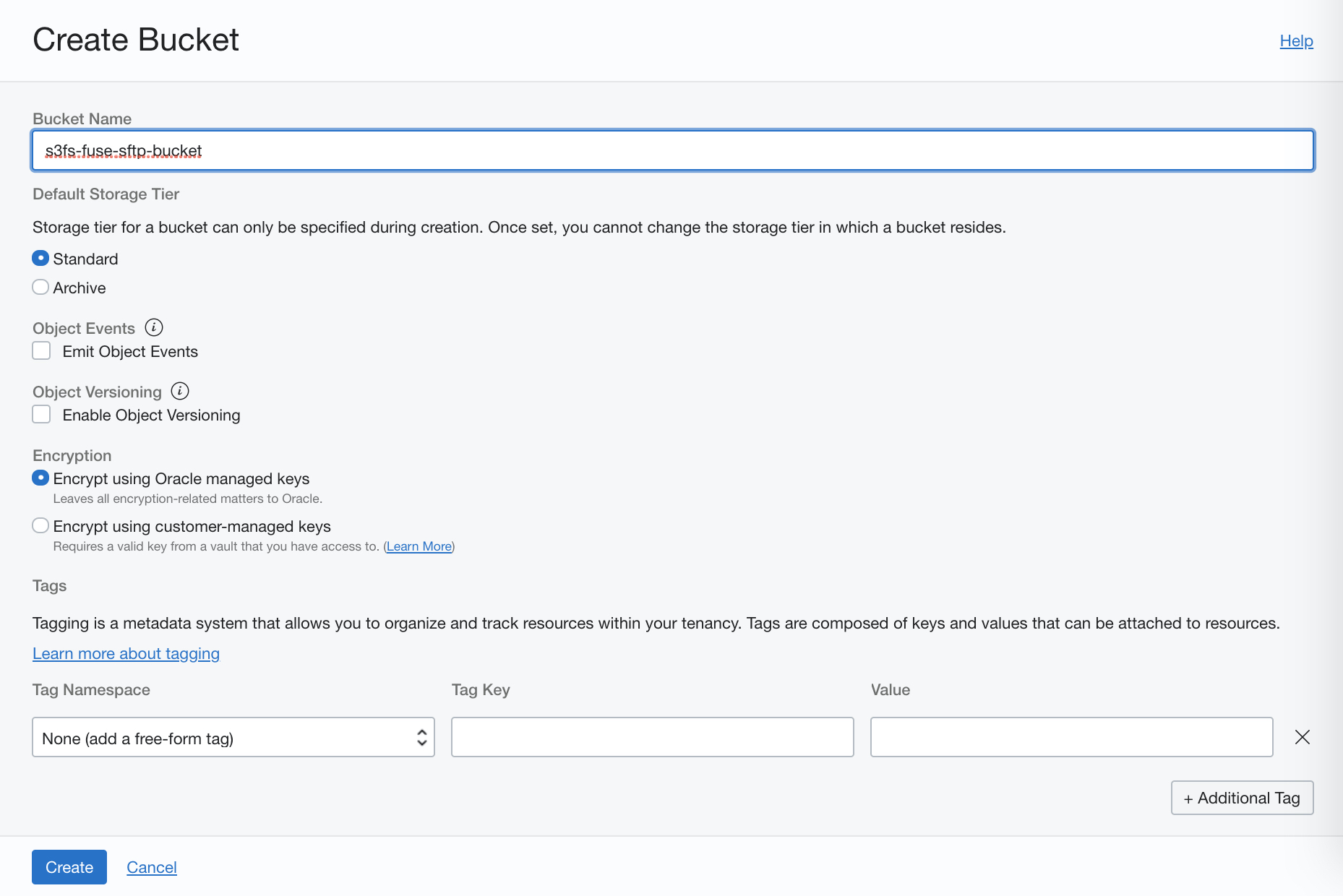

b) Create an Object Storage bucket names s3fs-fuse-sftp-bucket in the desired compartment

Figure 4: Create the Object Storage Bucket

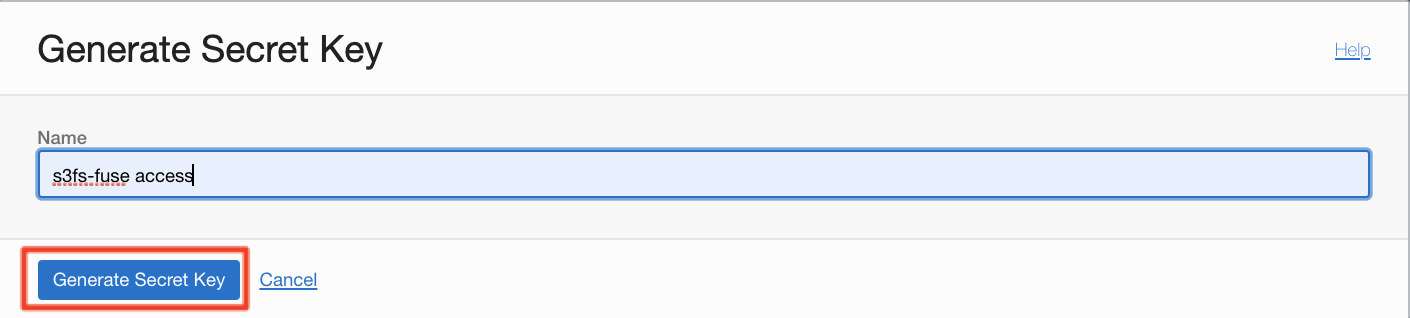

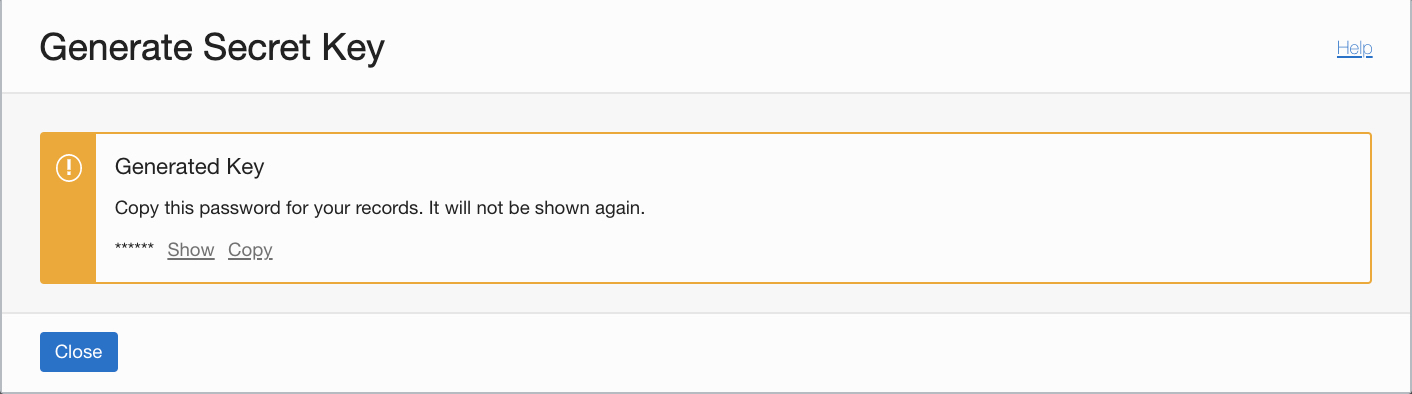

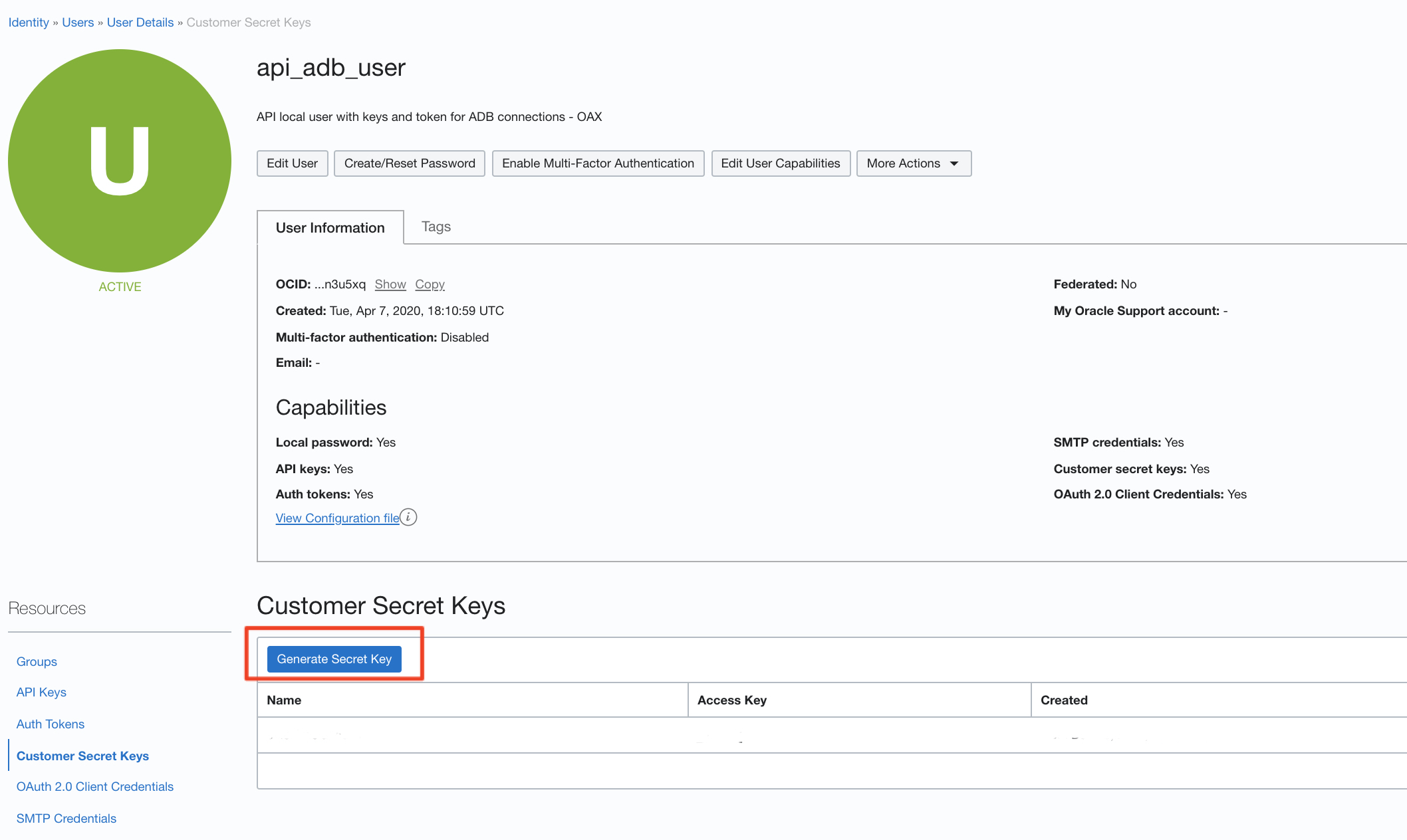

c) Access the OCI local user details, generate a secret key and save the secret key



Figure 5 : Generate the secret key

d) Copy  and save the access key of the secret key generated previously

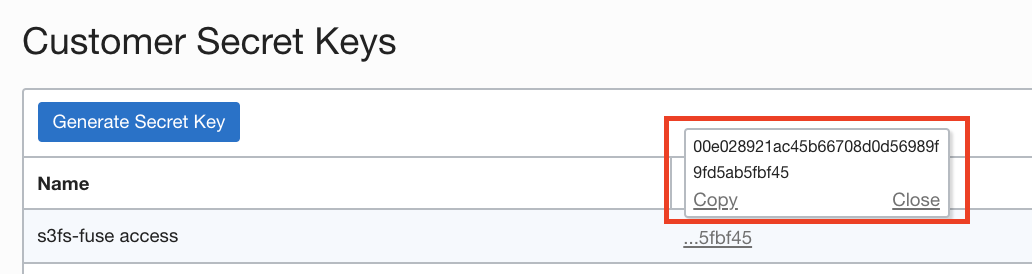

Figure 6 : Generate the secret key and copy the access key

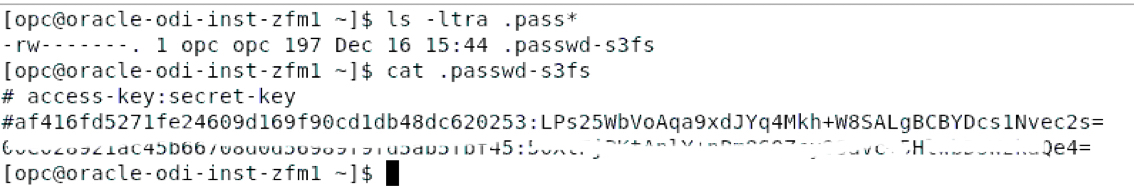

e) Connect to the ODI VM and generate the password file for s3fs-fuse using the access key and the secret key saved previously

echo ACCESS_KEY:SECRET_ACCESS > ${HOME}/.passwd-s3fs

chmod 600 ${HOME}/.passwd-s3fs



Figure 7 : Generate the password file for s3fs-fuse

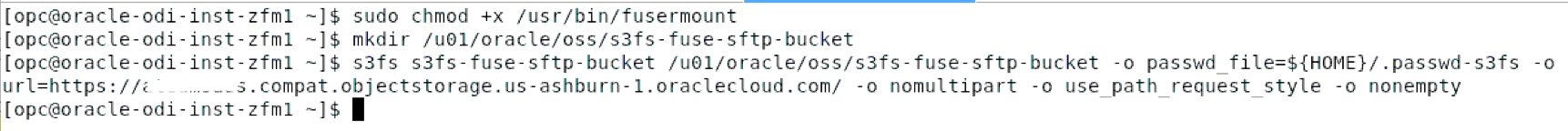

e) Execute the s3fs-fuse mount command to mount the Object Storage bucket to the file system

sudo chmod +x /usr/bin/fusermount

mkdir /u01/oracle/oss/s3fs-fuse-sftp-bucket

s3fs s3fs-fuse-sftp-bucket /u01/oracle/oss/s3fs-fuse-sftp-bucket -o passwd_file=${HOME}/.passwd-s3fs -o url=https://<tenancy name>.compat.objectstorage.<region>.oraclecloud.com/ -o nomultipart -o use_path_request_style -o nonempty



Figure 8 : Generate the password file for s3fs-fuse

f) Update the /etc/fstab file so the mount point will persist at the next ODI VM reboot.

sudo vi /etc/fstab

s3fs# s3fs-fuse-sftp-bucket /u01/oracle/oss/s3fs-fuse-sftp-bucket fuse _netdev,allow_other,use_path_request_style,passwd_file=/home/opc/.passwd-s3fs,url=https://<tenancy name>.compat.objectstorage.us-ashburn-1.oraclecloud.com/ 0 0

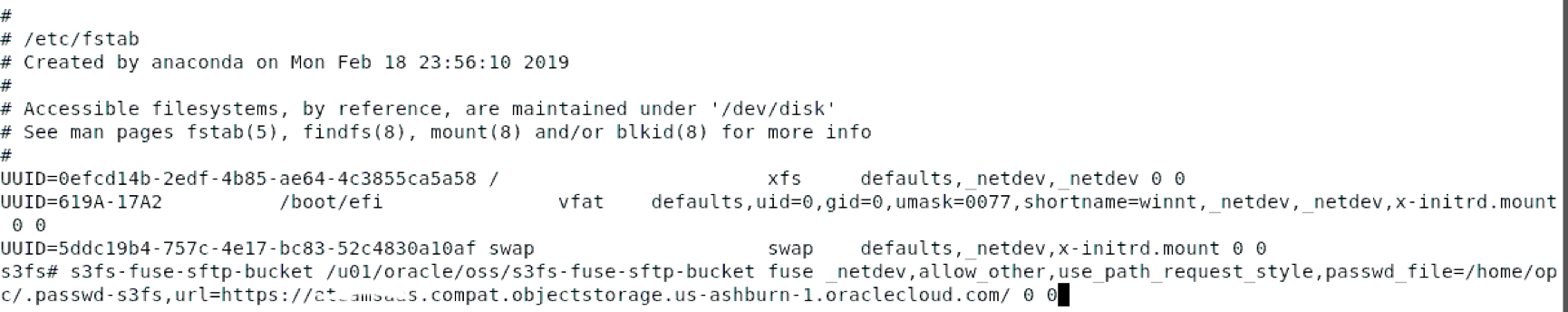

Figure 9 : Persist bucket mount point in /etc/fstab

Testing the mounted bucket

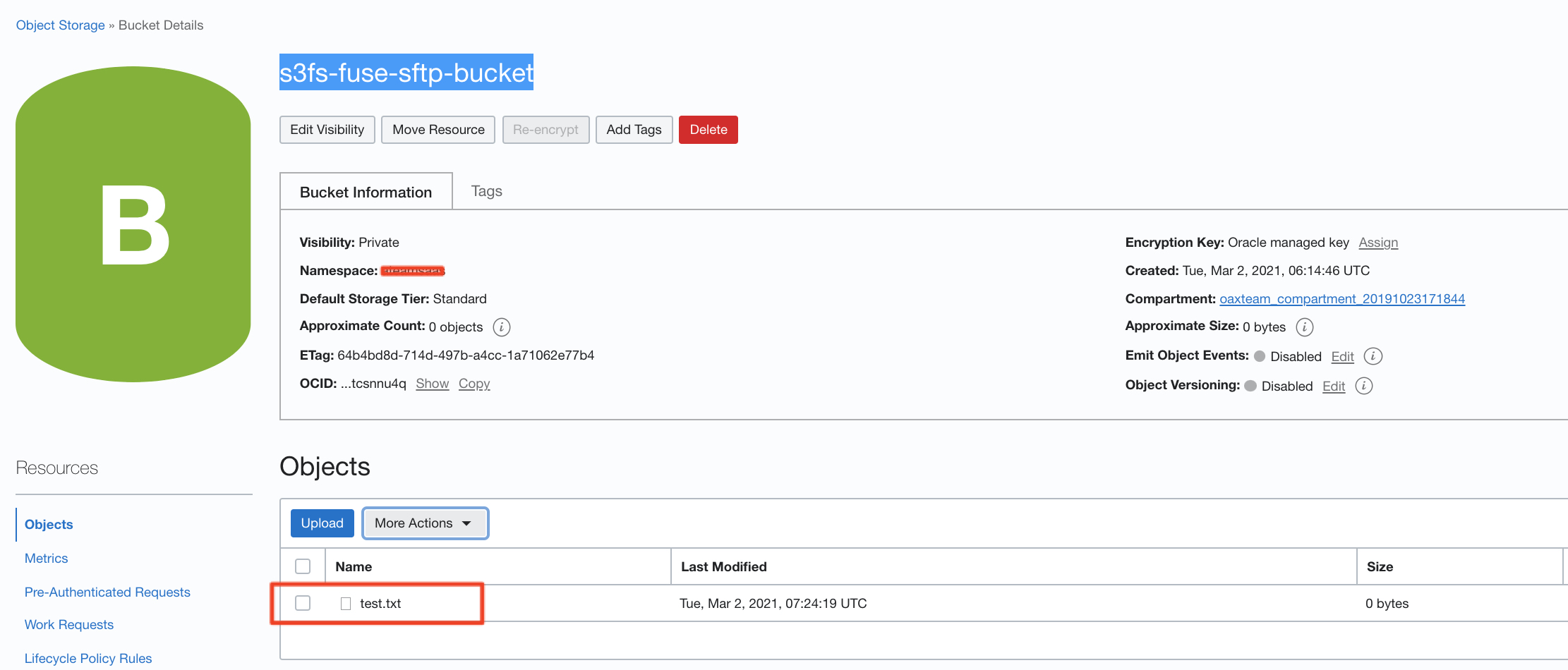

a) Create a file in the bucket mount point from the ODI VM and verify it is displayed in the bucket from the OCI Console

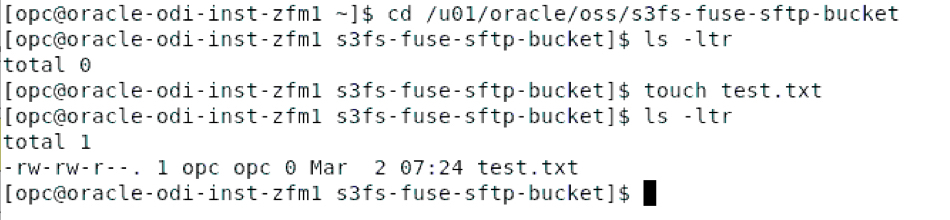

Figure 10 : Test creating a file in the bucket folder from the ODI VM

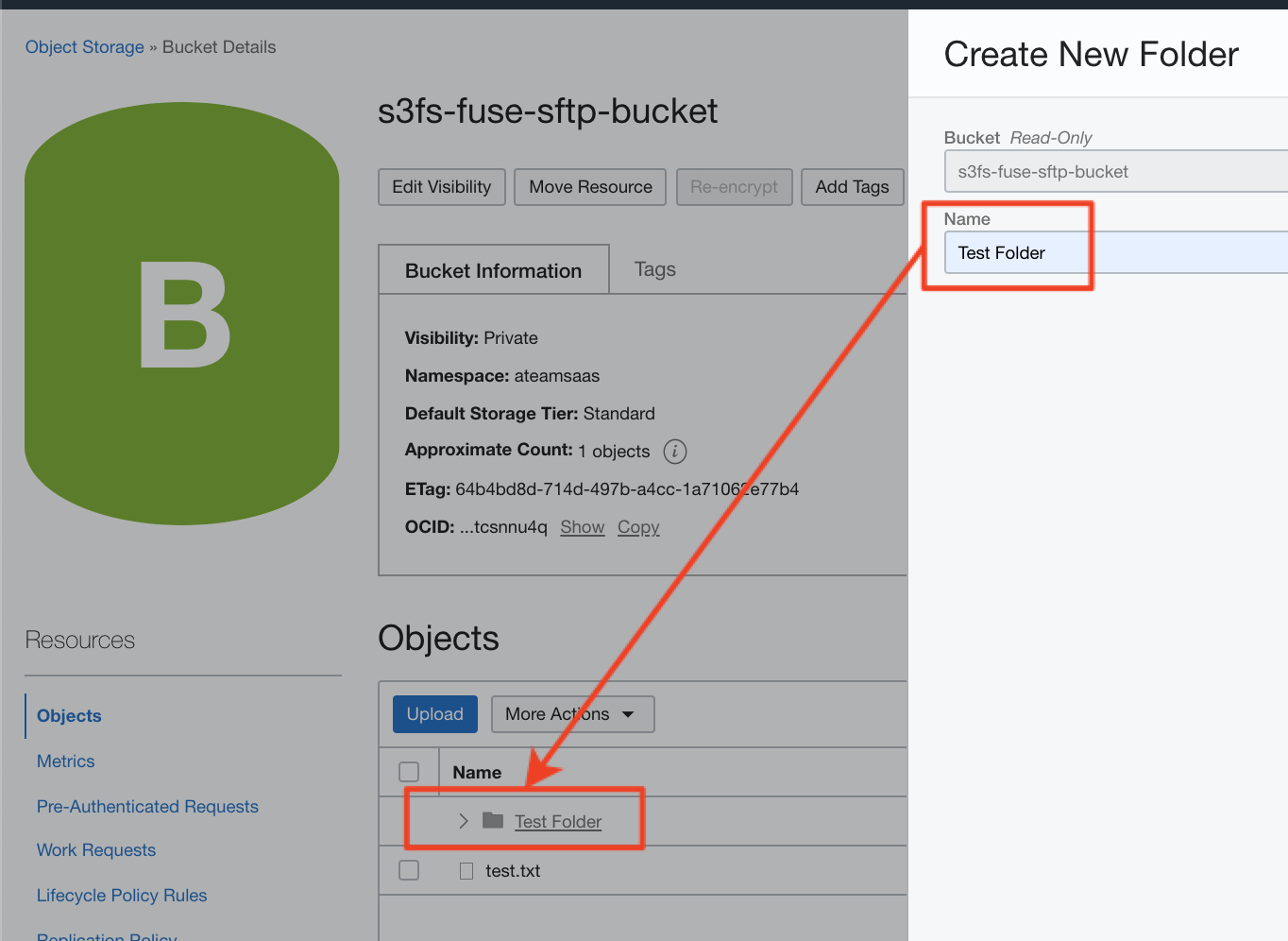

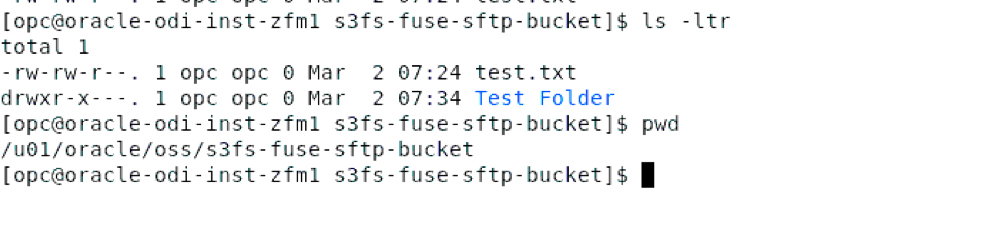

b) Create a directory in the bucket from the OCI Console and verify it is displayed in the bucket bucket mount point from the ODI VM

Figure 11 : Test creating a directory in the bucket from the OCI Console

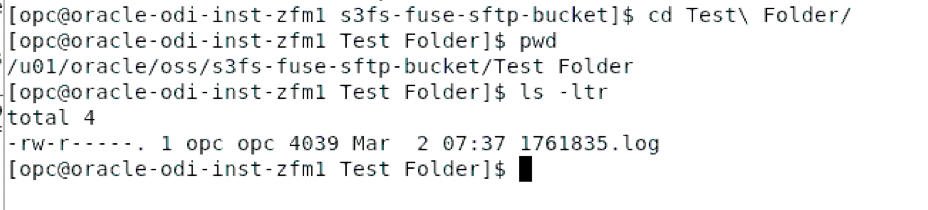

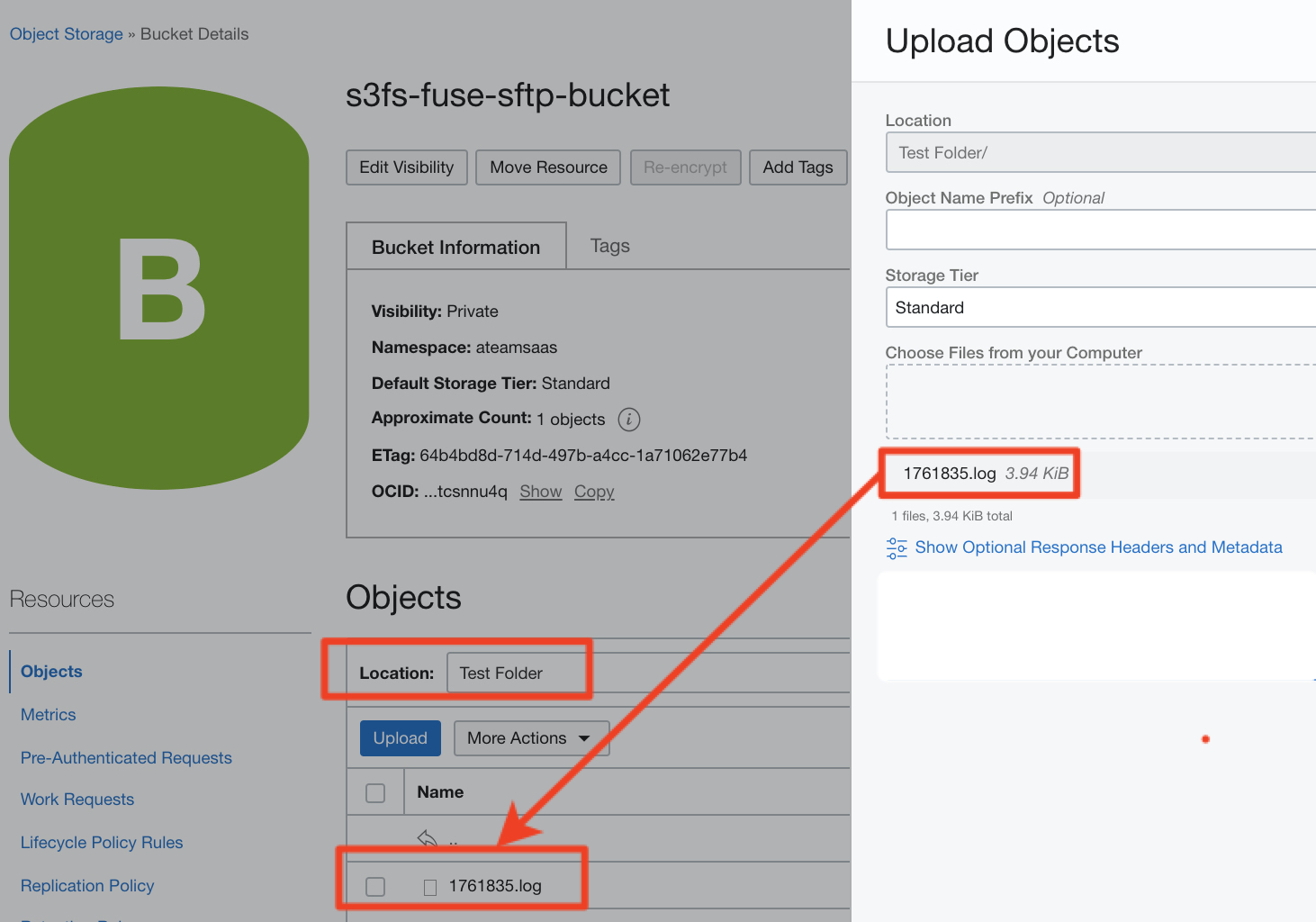

c) Upload a file to the bucket directory from the OCI Console and verify it is available in the ODI VM folder

Figure 12 : Test creating uploading a file to the directory from the OCI Console

Setting up the SFTP Server for Fusion BI Publisher

Creating the ssh key for Fusion BI Publisher and updating the autorized_keys file on the ODI VM

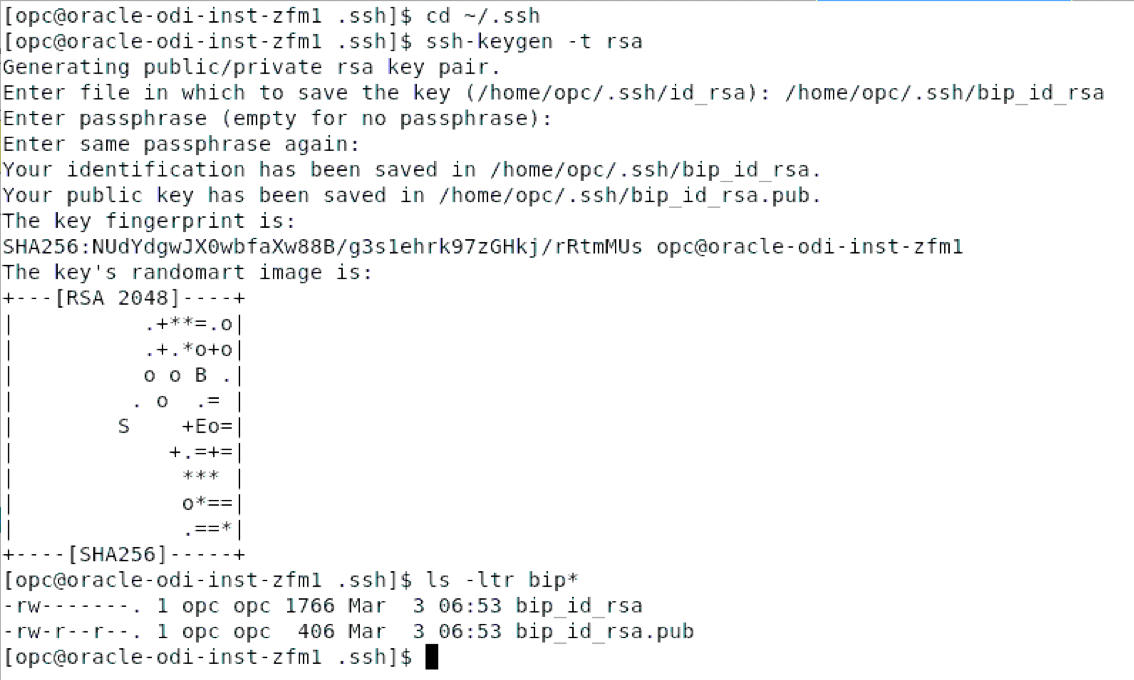

a) Create the ssh key pair bip_id_rsa and bip_id_rsa.pub for Fusion BI Publisher on the ODI VM

ssh-keygen -t rsa



Figure 13 : Create the ssh key pair for Fusion BI Publisher

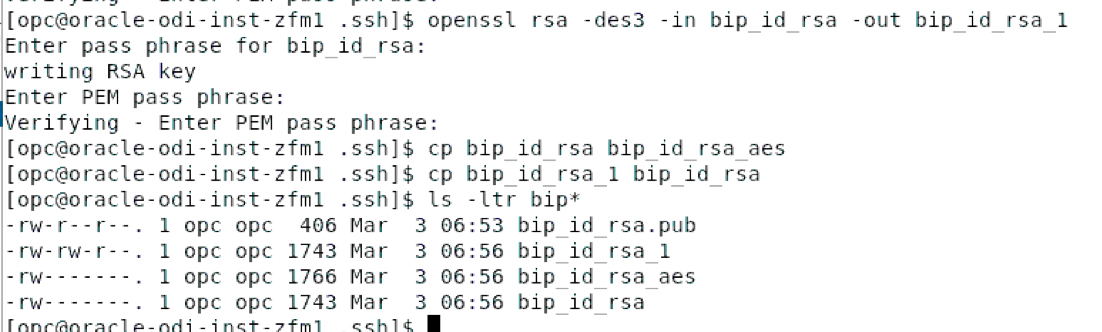

b) Convert the private key bip_id_rsa to DES3 format as it is the only one supported by Fusion BI Publisher and rename the private keys

openssl rsa -des3 -in bip_id_rsa -out bip_id_rsa_1



Figure 14 : Convert the private to DES3 format

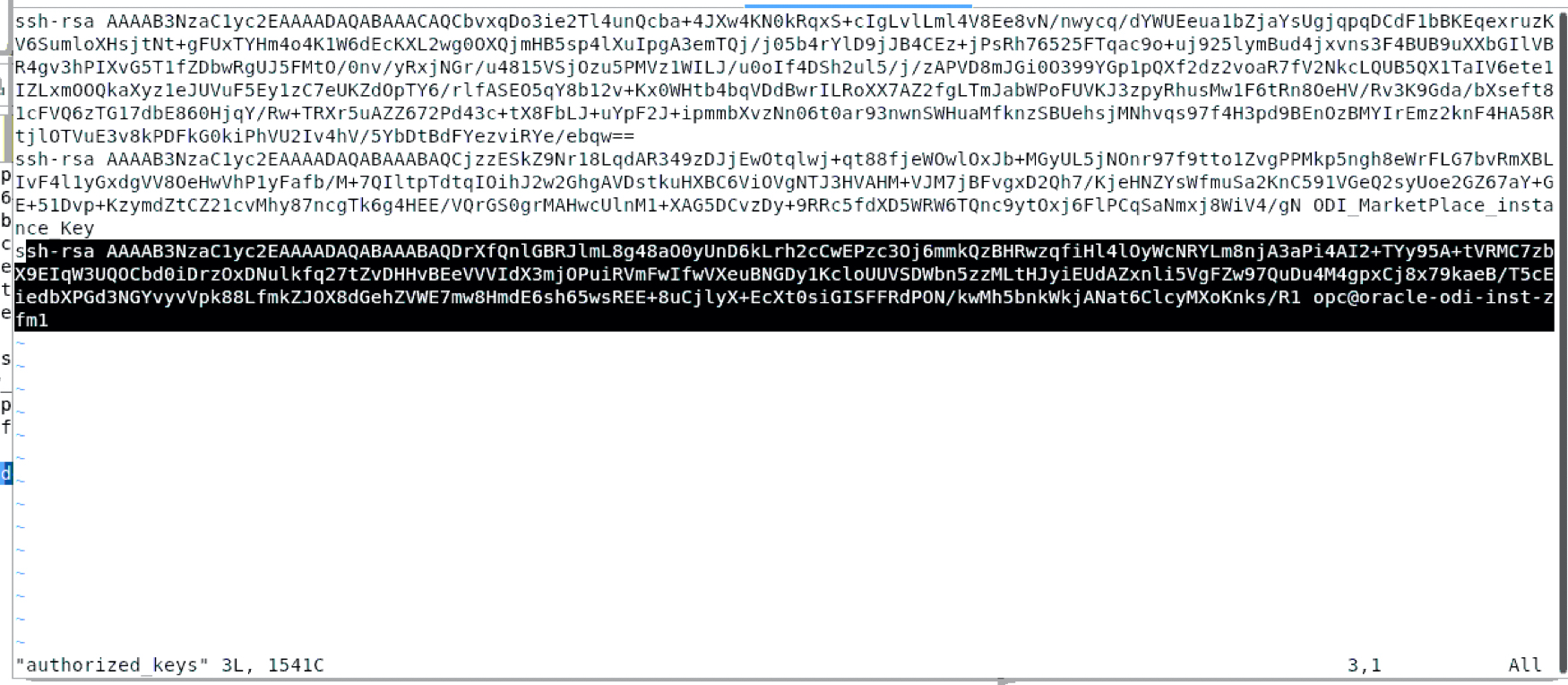

c) Update the authorized_keys file for opc user on the ODI VM to add the bip_id_rsa.pub public key for Fusion BIP Publisher

Figure 15 : Convert the private to DES3 format

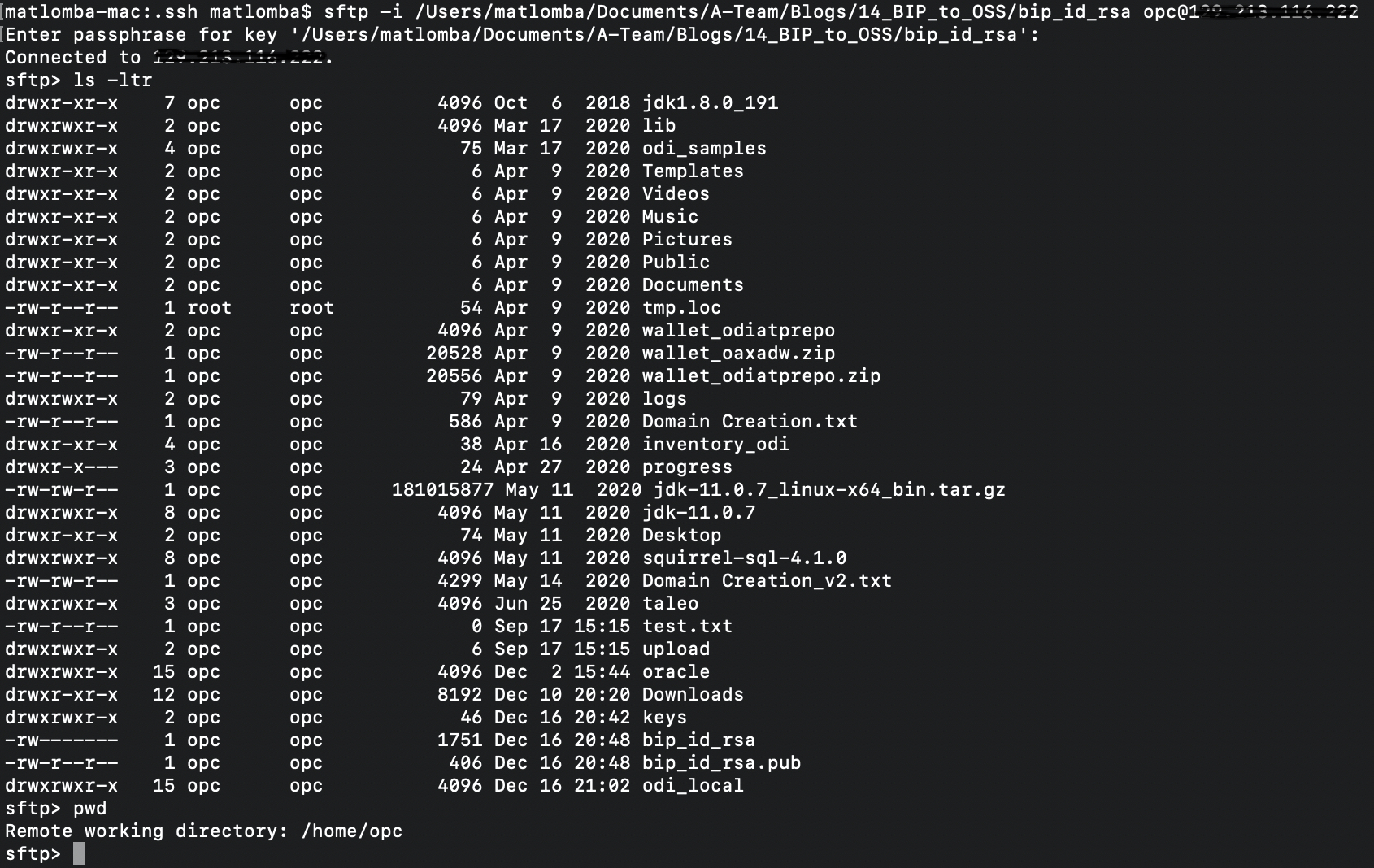

d) Copy the private key on the client and connect to sftp server on the ODI VM

Figure 16 : Connect to SFTP Server on the ODI VM from client

Updating the BIP Fusion Publisher Server and Delivery Configuration

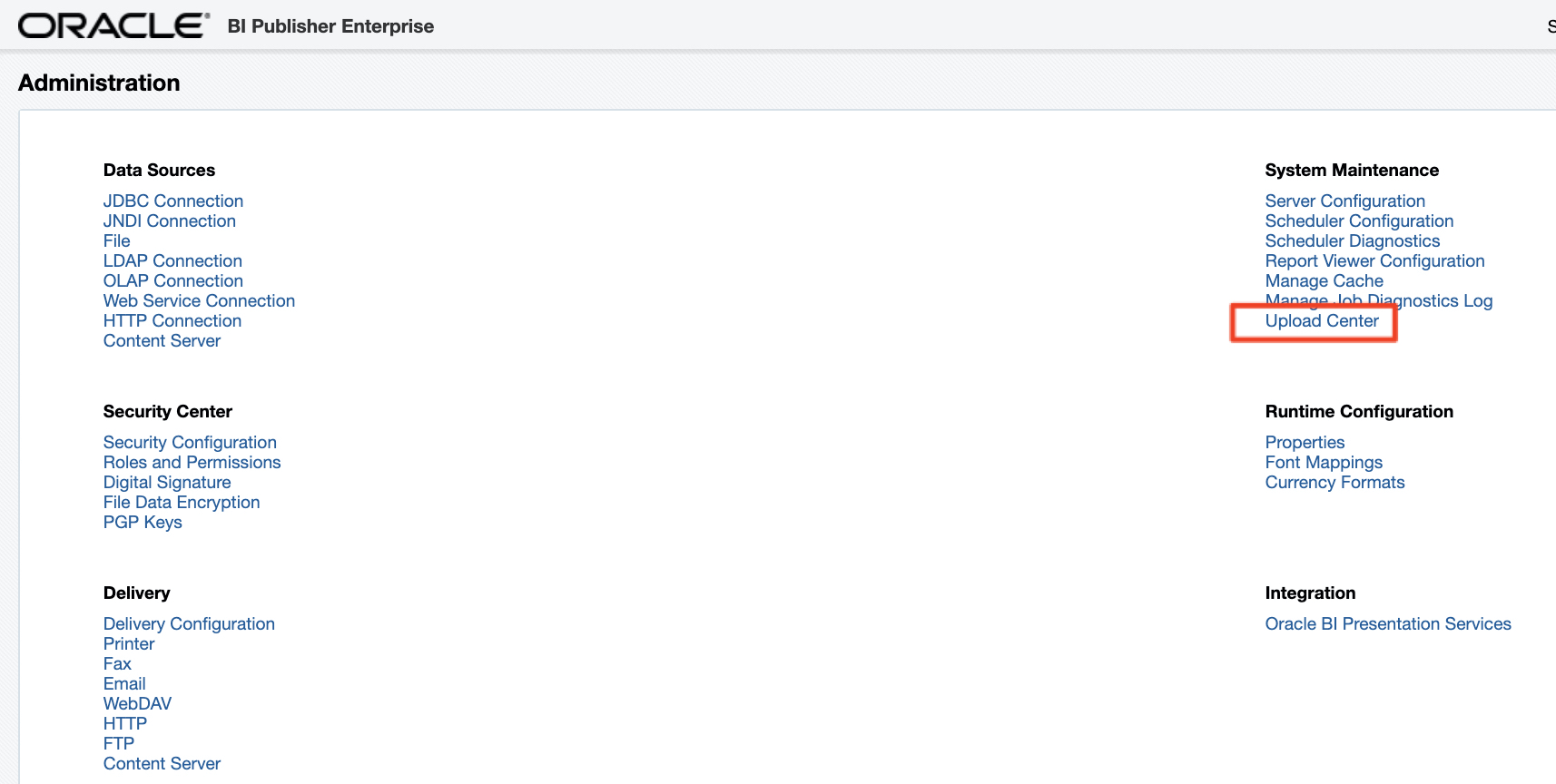

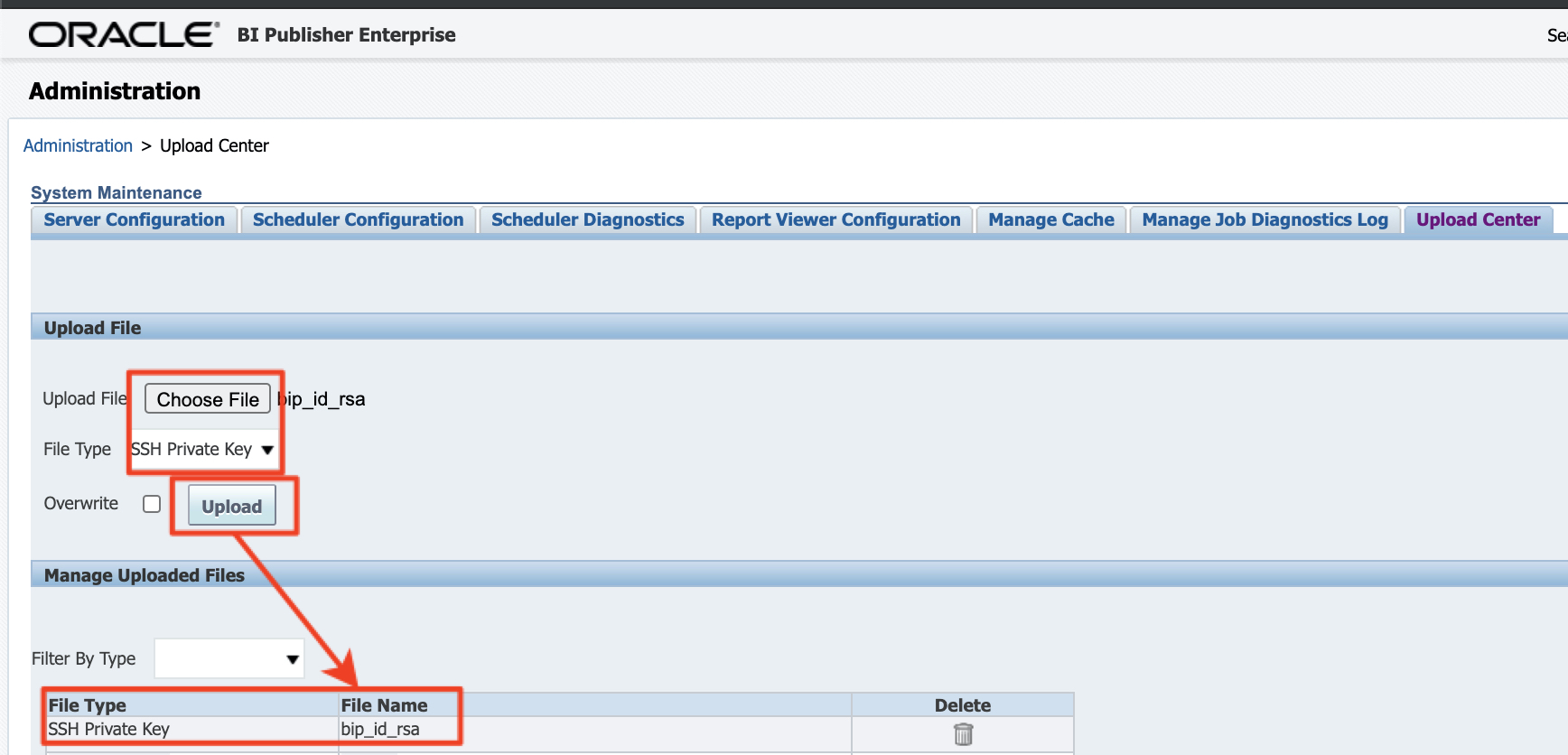

a) Connect to Fusion BI Publisher Upload Center in Administration and upload the private key bip_id_rsa

Figure 17 : Connect to SFTP Server on the ODI VM from client

b) Create the SFTP Delivery in BI Publisher

Access to FTP Delivery configuration

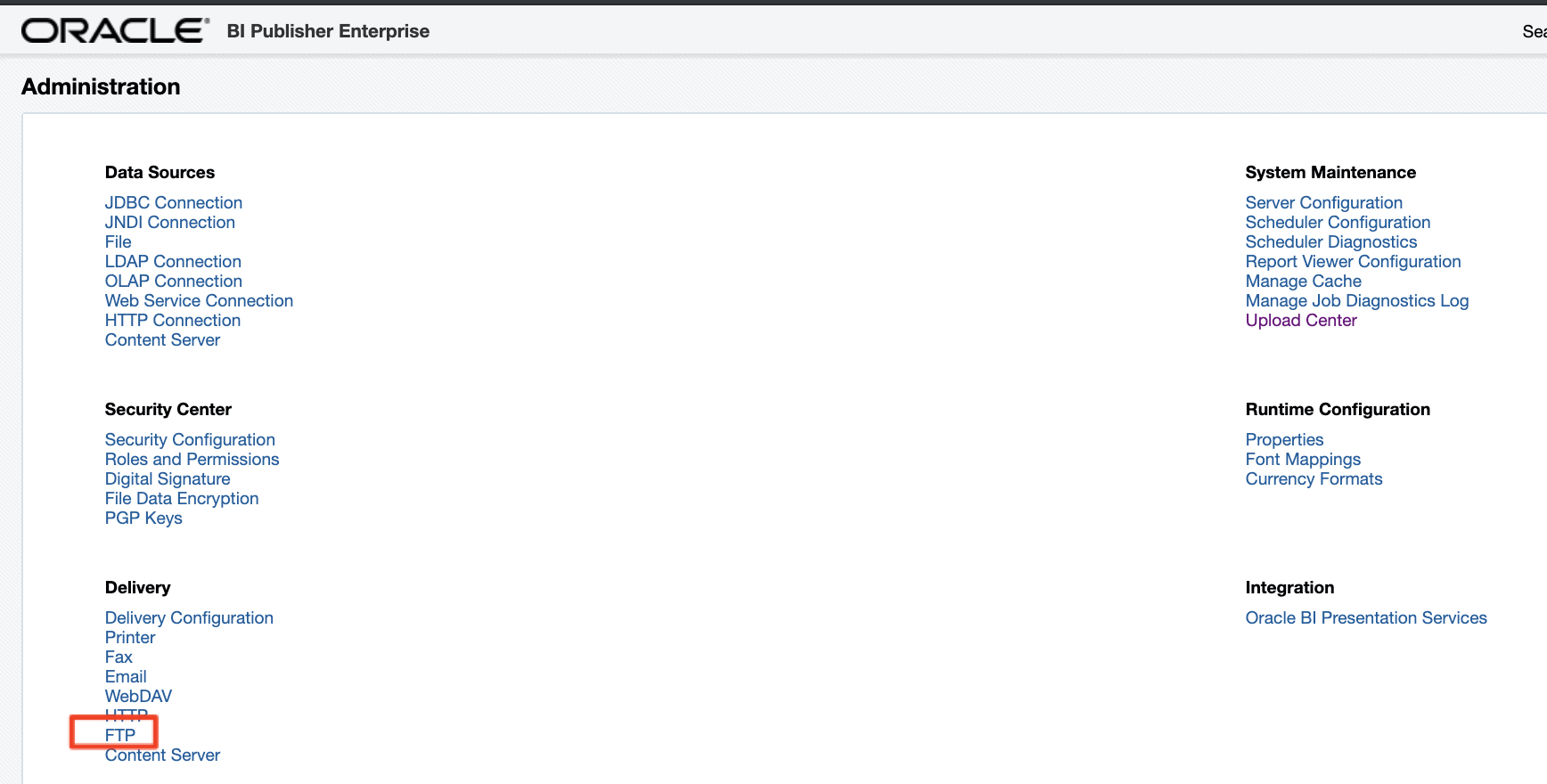

Figure 18 : Fusion BI Publisher FTP Delivery

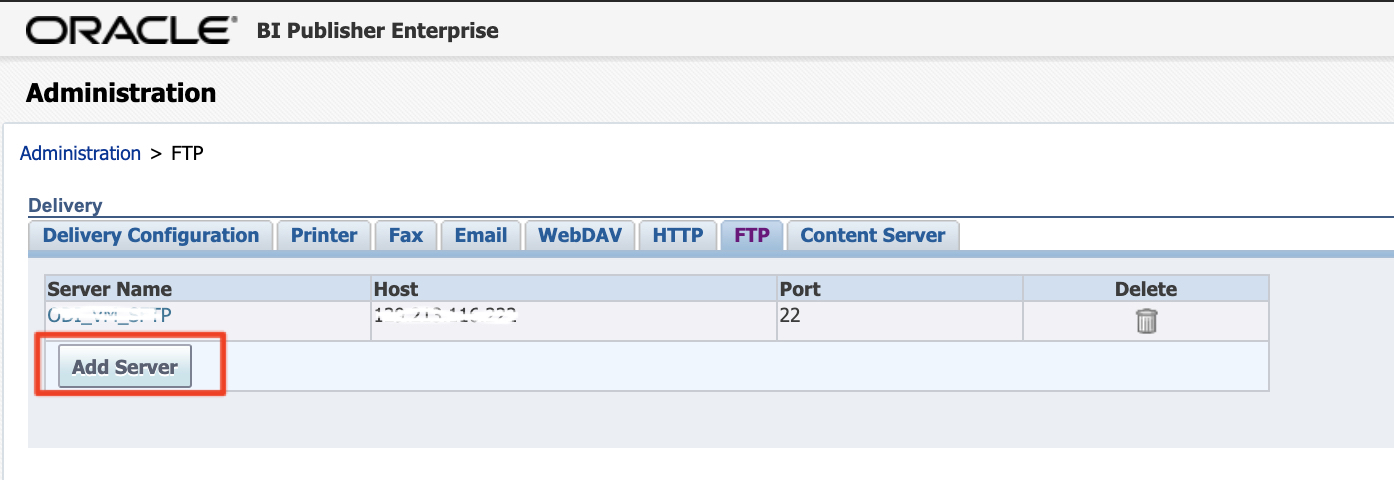

Click on Add Server

Figure 19 : Add FTP Server

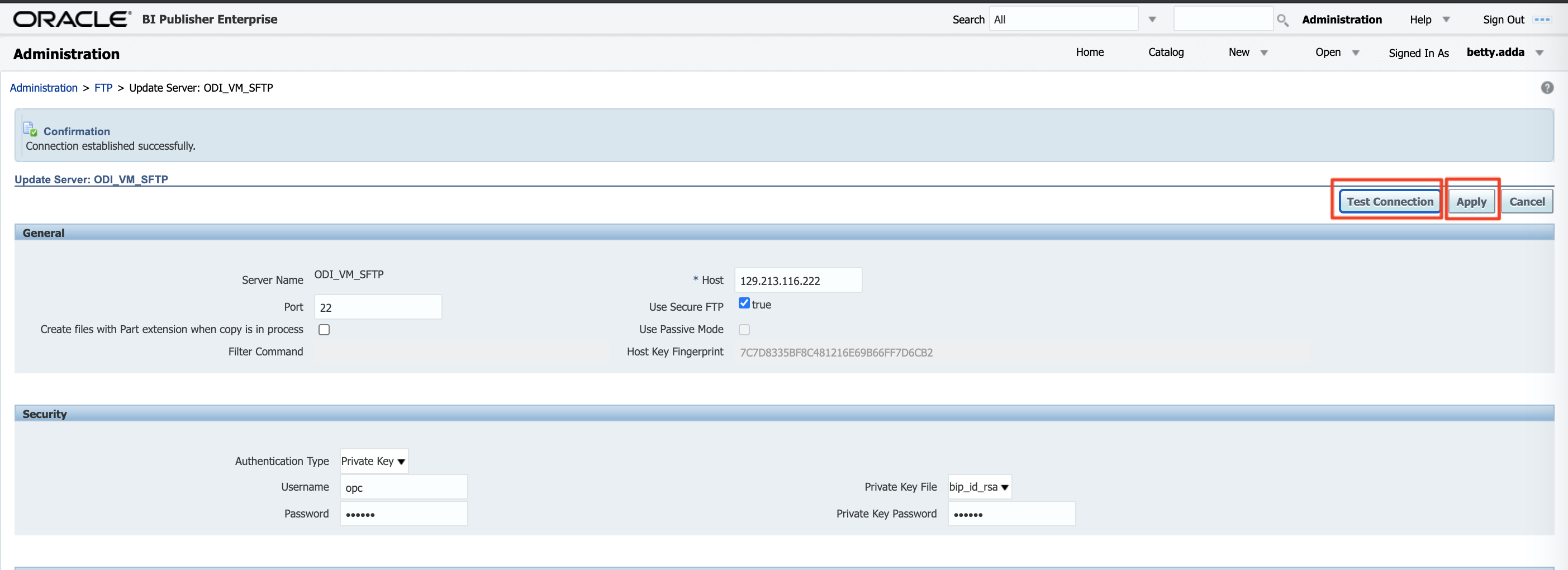

Enter a server name, the ODI VM Public IP for the host, 22 for the port. Choose Private Key authentication, select the bip_id_rsa key uploaded previously, enter opc as user and the private key passphrase in the password and Private Key Password fields. Test the connection and click apply.

Figure 20:  FTP Server configuration details

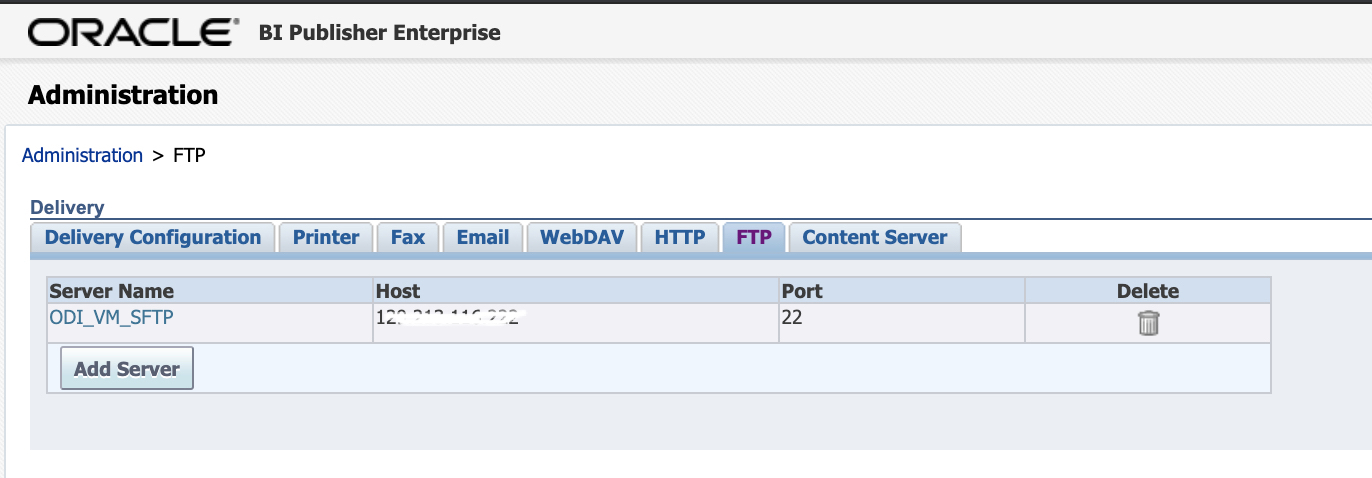

Validate the FTP Delivery server is added in the BI Publisher configuration

Figure 21: SFTP Server on the ODI VM configured in BI Publisher

Testing the SFTP Server and BI Publisher delivery

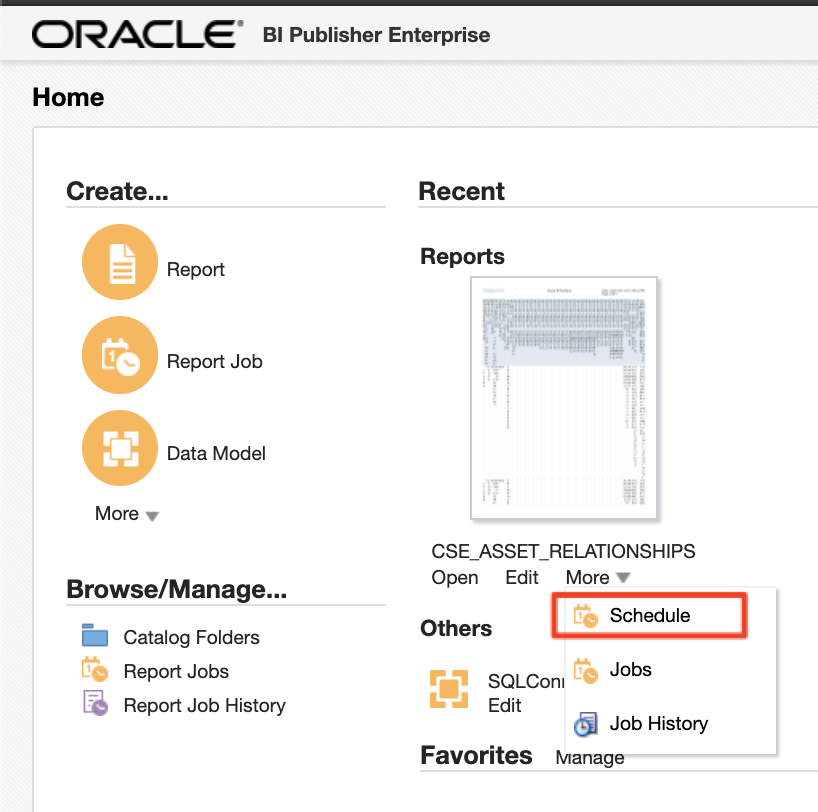

a) Connect to Fusion BI Publisher and Schedule a Report Job for an existing report

Figure 22: Schedule a Report Job for an existing report

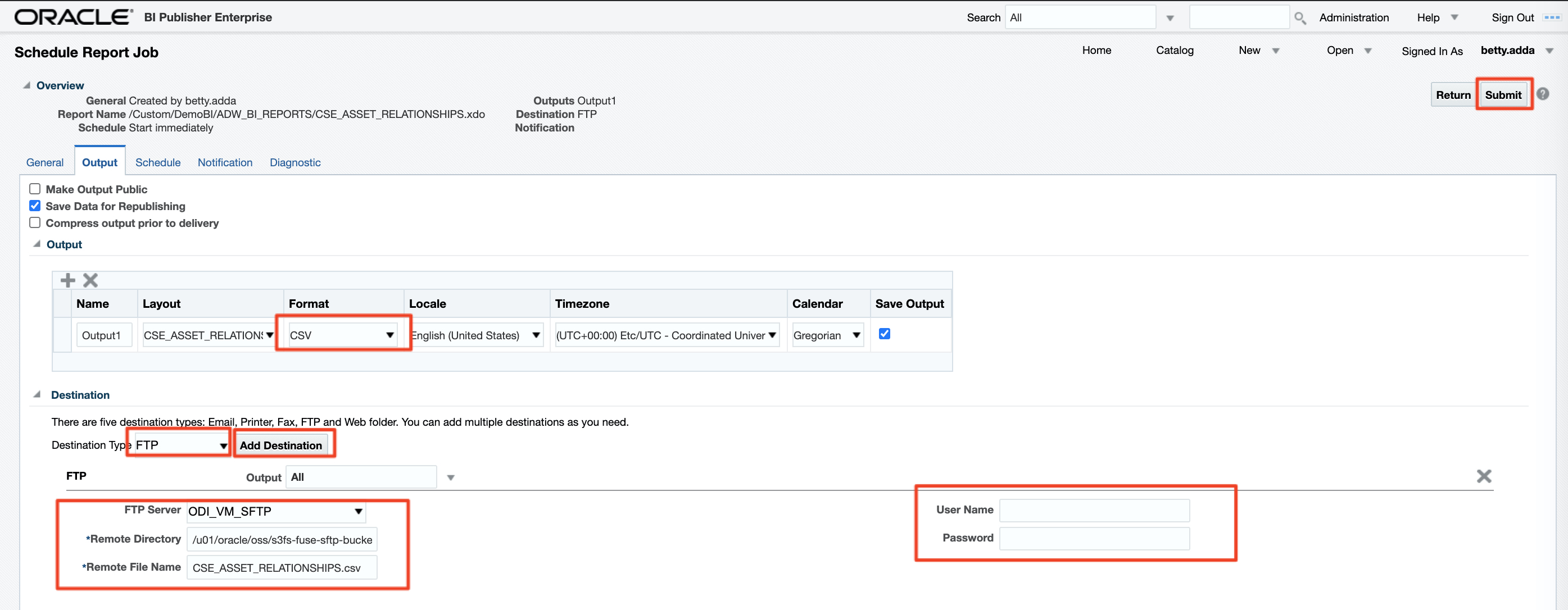

b) In the output configuration, choose the CSV format. Add an FTP destination, select the ODI_VM_SFTP server, enter the folder created in the bucket mount point configuration earlier, i.e. /u01/oracle/oss/s3fs-fuse-sftp-bucket, enter a name for the Remote CSV file, leave the user name and password blank and click submit.

Figure 23: Enter BI Publisher Report job output and destination details

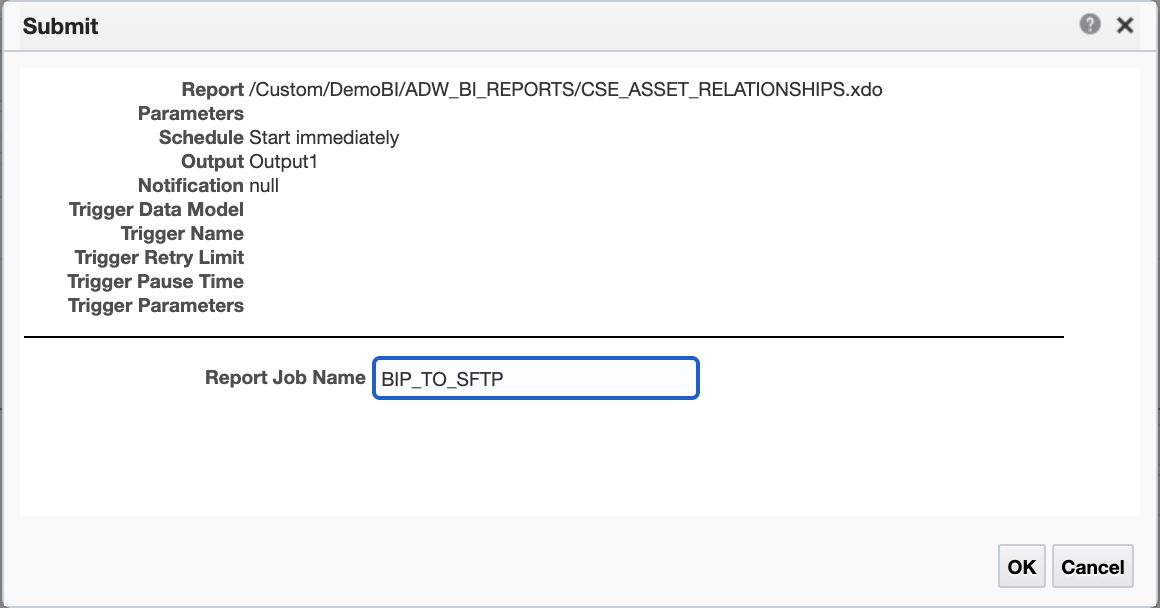

c) Enter a name for the Report Job

Figure 24: SFTP Server on the ODI VM configured in BI Publisher

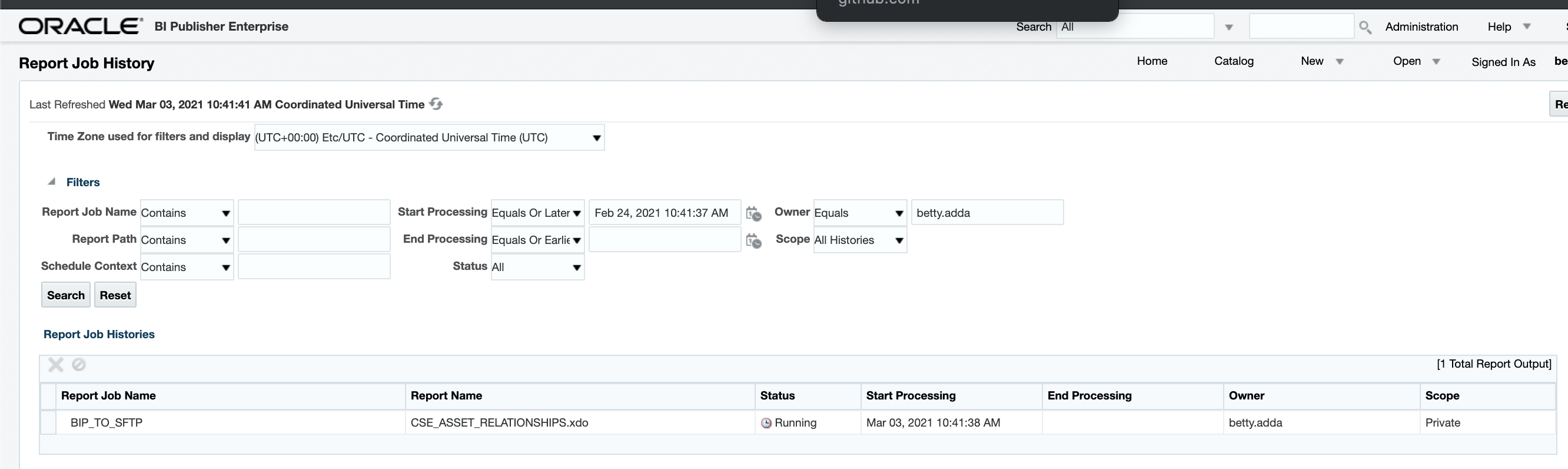

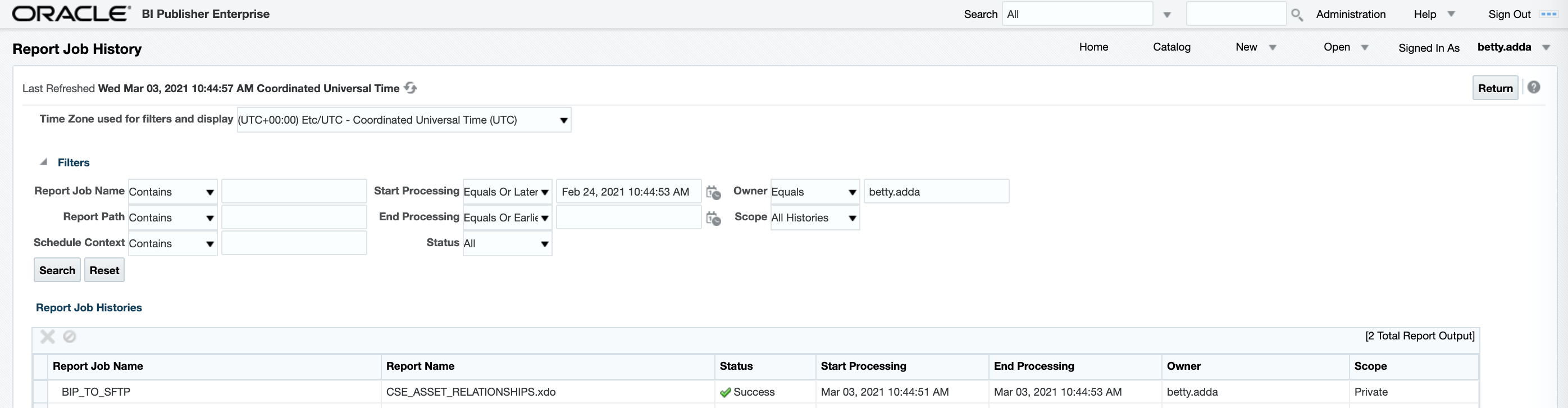

d) Go to the report job history and monitor the report job execution

Figure 25: SFTP Server on the ODI VM configured in BI Publisher

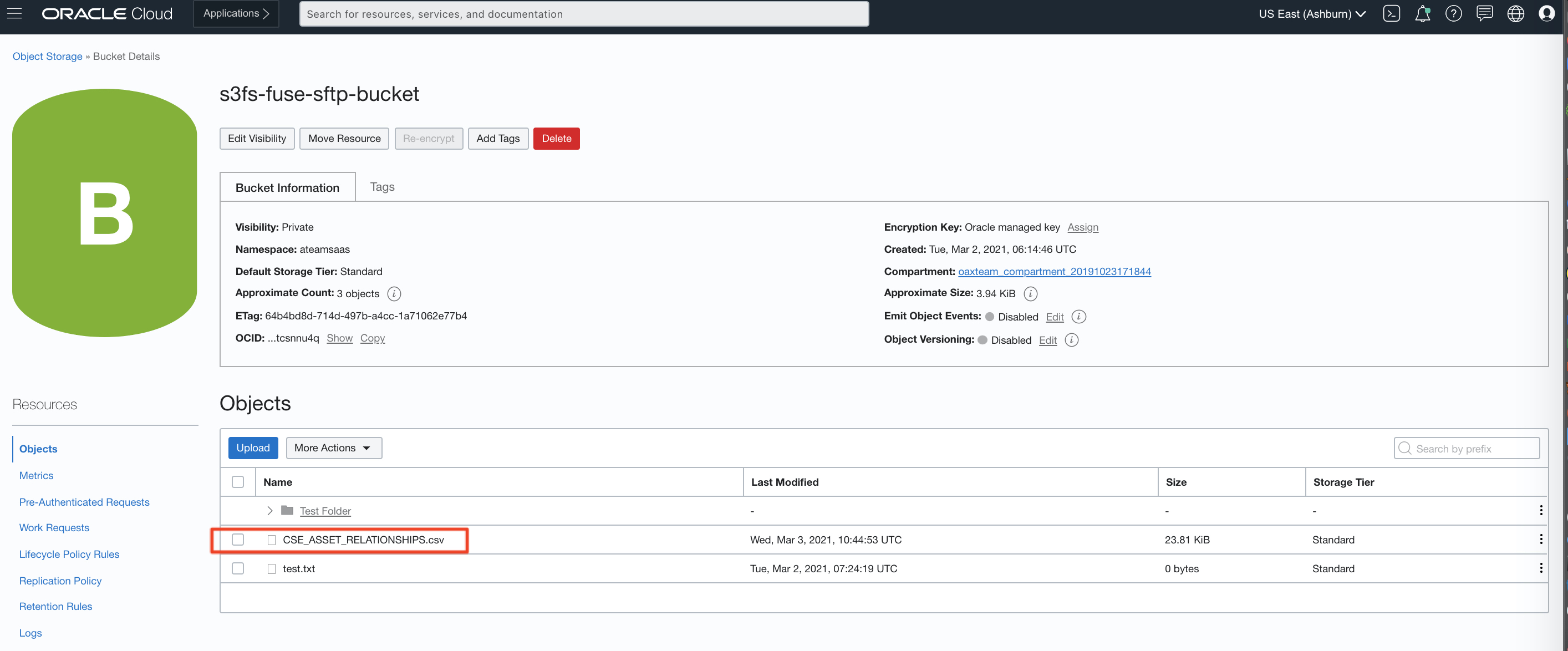

d) Access the OCI Console and look into the bucket created in the bucket mount point configuration earlier, i.e. s3fs-fuse-sftp-bucket, and validate the CSE_ASSET_RELATIONSHIPS.csv file has been generated

Figure 26: SFTP Server on the ODI VM configured in BI Publisher

This concludes the activities in this article.

The next articles will cover :

  • Part 2 - Defining and preparing the HCM extract to deliver to SFTP  Server using Object Storage Bucket mounted as a file system on the ODI VM
  • Part 3 - Configuring ODI Artefacts to consume the HCM Extract
  • Part 4 - Scheduling the HCM Extracts from ODI

 Want to Learn More?

Click here for more A-Team Oracle Data Integrator (ODI) Blogs.

Click here to sign up to the RSS feed to receive notifications for when new A-team blogs are published.

Click here to access the ODI Marketplace documentation library.

In addition to the capability described in this blog,  customers have the option to load budget data in ERP Cloud from any EPM system and that data is supported in Fusion ERP Analytics using GL Budget subject area, that will be covered in a future blog post.

 Summary

This article walked through the steps  to configure Oracle Data Integrator (ODI) on Oracle Cloud Marketplace to replicate data from Fusion HCM Cloud, using HCM Extracts, into an Autonomous Data Warehouse (ADW) database that is part of the FAW product, particularly the Part 1 - Setting up the SFTP Server using Object Storage Bucket mounted as a file system on the ODI VM.

Bookmark this post to stay up-to-date on changes made to this blog as our products evolve.
