Reference Architecture - Fusion HCM Data Replication into FAW ADW Using ODI Marketplace and HCM Extract - Part 2

Matthieu Lombard
Consulting Solution Architect

Validation

Content validated on 7/28/2021 with

  • ODI Version 12.2.1.4.200304.2238
  • ADW Version Oracle Database 19c Enterprise Edition Release - Production Version 19.5.0.0.0
  • Oracle Cloud Application 21B (11.13.21.04.0)
  • Fusion Analytics Warehouse Application Version  21.R2.P3

 Background

Fusion HCM Analytics provides comprehensive workforce, turnover data sourced from Fusion HCM Cloud in a warehouse designed to support broad set of analytics use cases. In some specific use cases, Fusion HCM Analytics data can be complemented with additional Payroll, Cumulative Earning – Deduction or Costing data sets. For such data, Fusion HCM Cloud provide with an extract mechanism named HCM Extracts. HCM Extracts uses BI Publisher as the delivery mechanism for extracted data.

This blog is part of in a series covering topics on how to utilize Oracle ETL / Data Integration tools to extract data from various data sources to complement Fusion Analytics Warehouse factory data. Future blog topics will cover extracting from: Oracle SaaS Applications, Oracle on-premise applications (e.g. EBS), and other Oracle applications such as Responsys, Eloqua and third party data sources like Salesforce or Workday.

This blog walks though how to configure Oracle Data Integrator (ODI) on Oracle Cloud Marketplace to replicate data from Fusion HCM Cloud, using HCM Extracts, into an Autonomous Data Warehouse (ADW) database that is part of the FAW product.

The "Master" topic will divided in four parts :

This current article covers Part 2 - Defining and preparing the HCM extract to deliver to SFTP  Server using Object Storage Bucket mounted as a file system on the ODI VM.

It assumes all the steps describes in Part 1 blog have been executed.

Suggested Prerequisite Reading Material:

Using Oracle Cloud Marketplace

* Working with HCM Extracts

* Filtering and Delivering HCM Extracts

Overall prerequisites

* Have access to an Fusion HCM Cloud instance

* Have access to an ODI Marketplace instance

* Follow the steps in the companion blog for instructions to set up ODI Marketplace and configure ADW, especially on:

Policies Assignment (Step 1)

SSH key-pair Generation (Step 4-b and 4-c)

ODI Marketplace Provisioning (Step 2)

ADW Configuration (Step 5-h, 5-i, 5-j and 6-d)

 Architecture Overview

The diagram below details the architecture blue print for this use case:

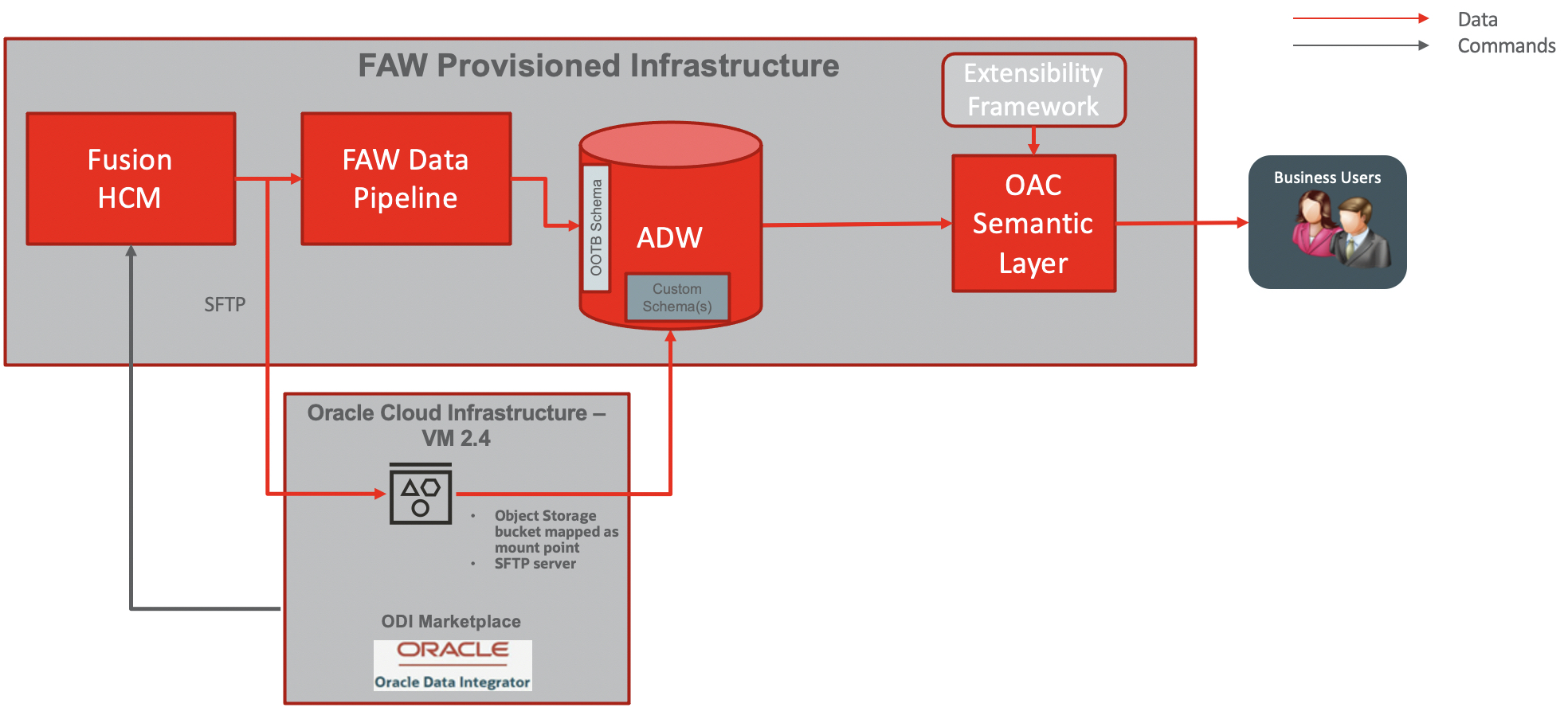

Figure 1 : Architecture overview

The data flow is as follow:

  • ODI Market Place (MP) will be installed in Linux VM
  • An object storage bucket will be mounted as a folder mount point on the ODI MP VM (with s3sfuse)
  • An SFTP Server will be configured with private key authentication with opc user on the ODI VM
  • Run the appropriate payroll flows in HCM extracts to ensure the HCM Extract produces output data
  • Create and Prepare an HCM Payroll Data Extract
    • Edit/ Create HCM Extract Definition in Fusion HCM : Extract Parameters, Blocks + Filter Records, Data Elements, Validate Extract
    • Integrate HCM Extract with BIP: Create RTF template and report in BI Publisher
    • Set Up Report Options: Define Delivery Method (SFTP) and Associate Report location in BI
    • Run / Schedule Extract using FlowActionService SOAP API to push the HCM Extract to SFTP
    • ODI MP will wait for the HCM Extract to be deliver to the SFTP before integrating it into ADW with the LKM File to Oracle
  • All additional transformations will happen inside the ADW
  • HCM extracts can be scheduled once every day
  • Semantic model will be extended by customizing an existing subject area or addition of a new subject area to allow reporting on HCM data extracted in ADW, as per the CEAL Team blog available here

 Defining the HCM Extract Cloud data extract job

Prepare Data for HCM Extract by Running QuickPay Payments in Payroll for a Person

Follow the steps below to run QuickPay Payments process in HCM Cloud

a) Sign in HCM Cloud with a user that has HCM Extract access privileges

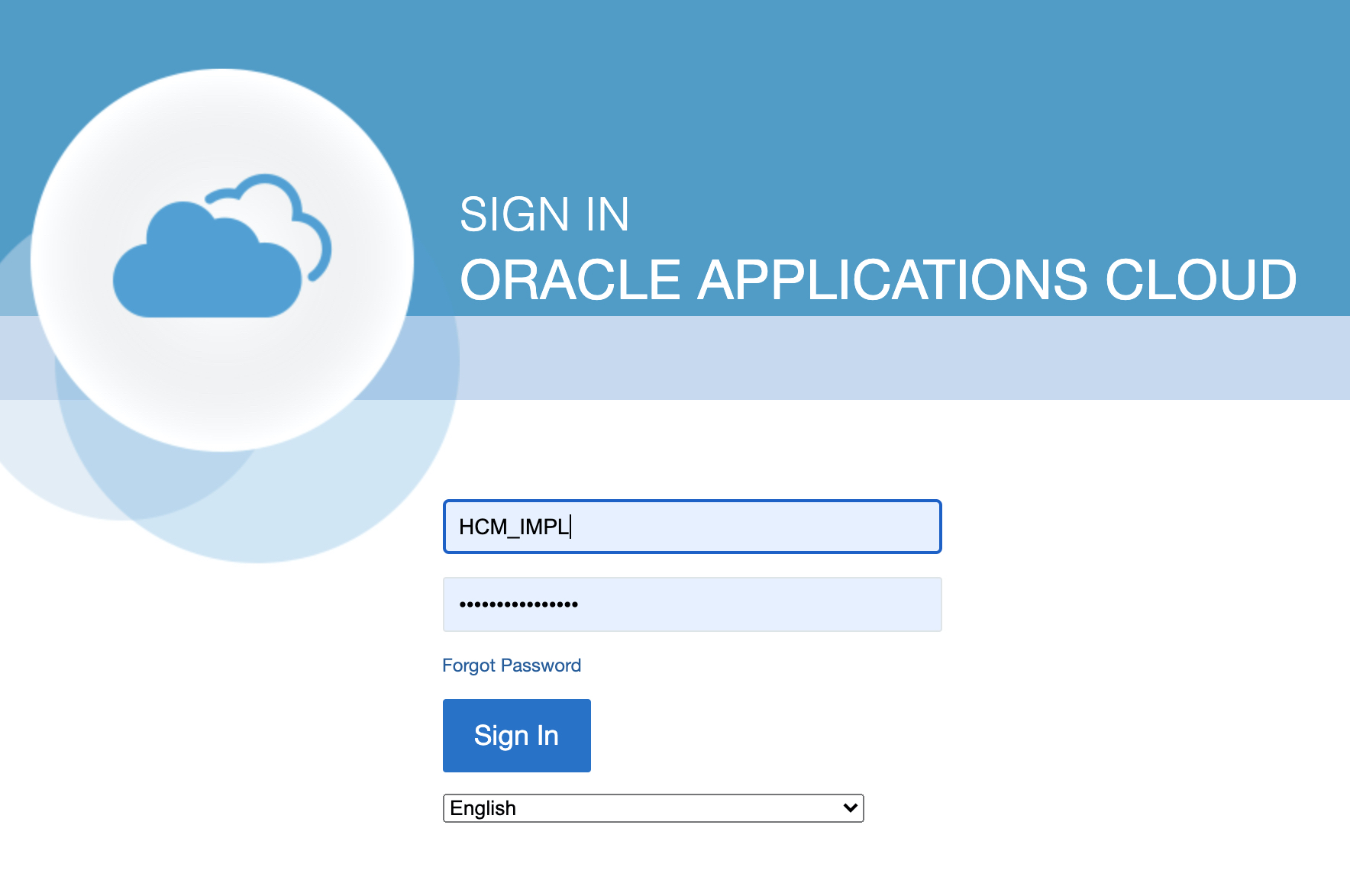

Figure 1 : Sign in HCM Cloud

b) Click on the Home hamburger on the top left and click on My Client Groups > Payroll

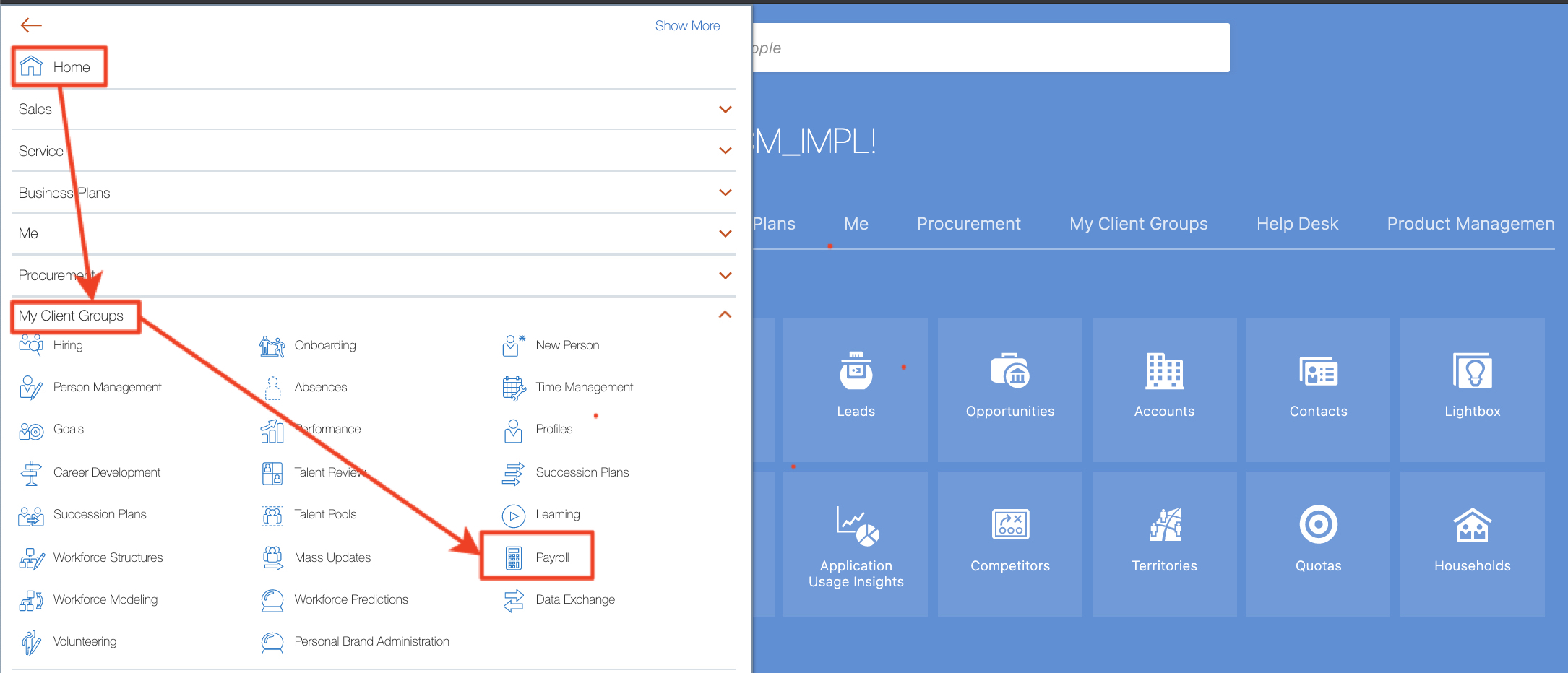

Figure 2 : Access Payroll

c) Enter the word "quick" in the search field, run the search and select QuickPay Payments

Figure 3 : Access QuickPay Payments

d) Search for a Person and select a Person to run the QuickPay Payment process for

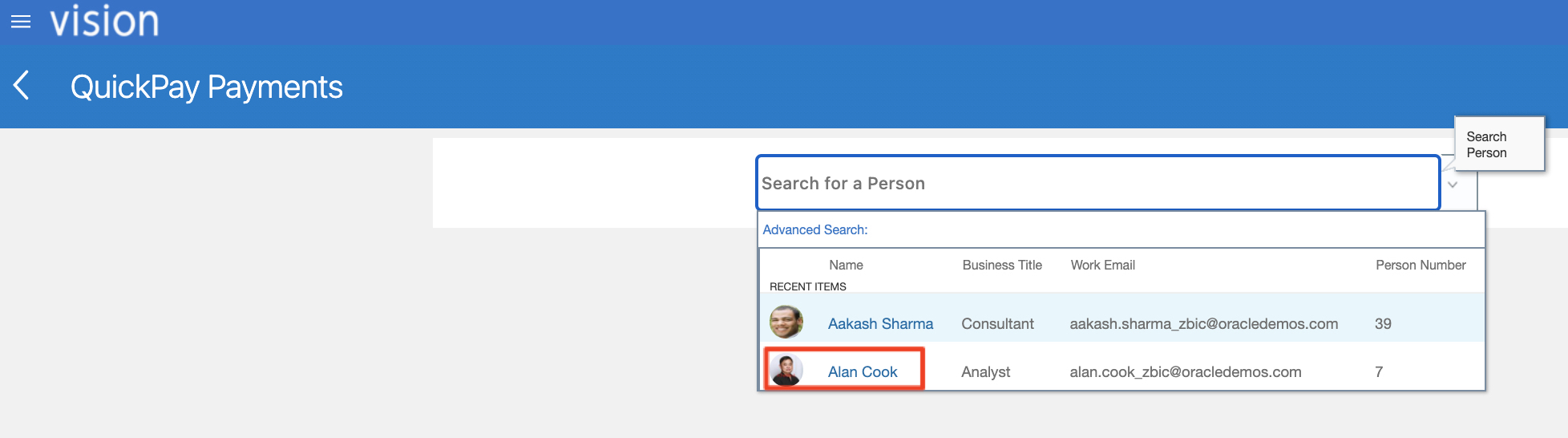

Figure 4 : Select a Person for QuickPay Payments

e) Click on Submit

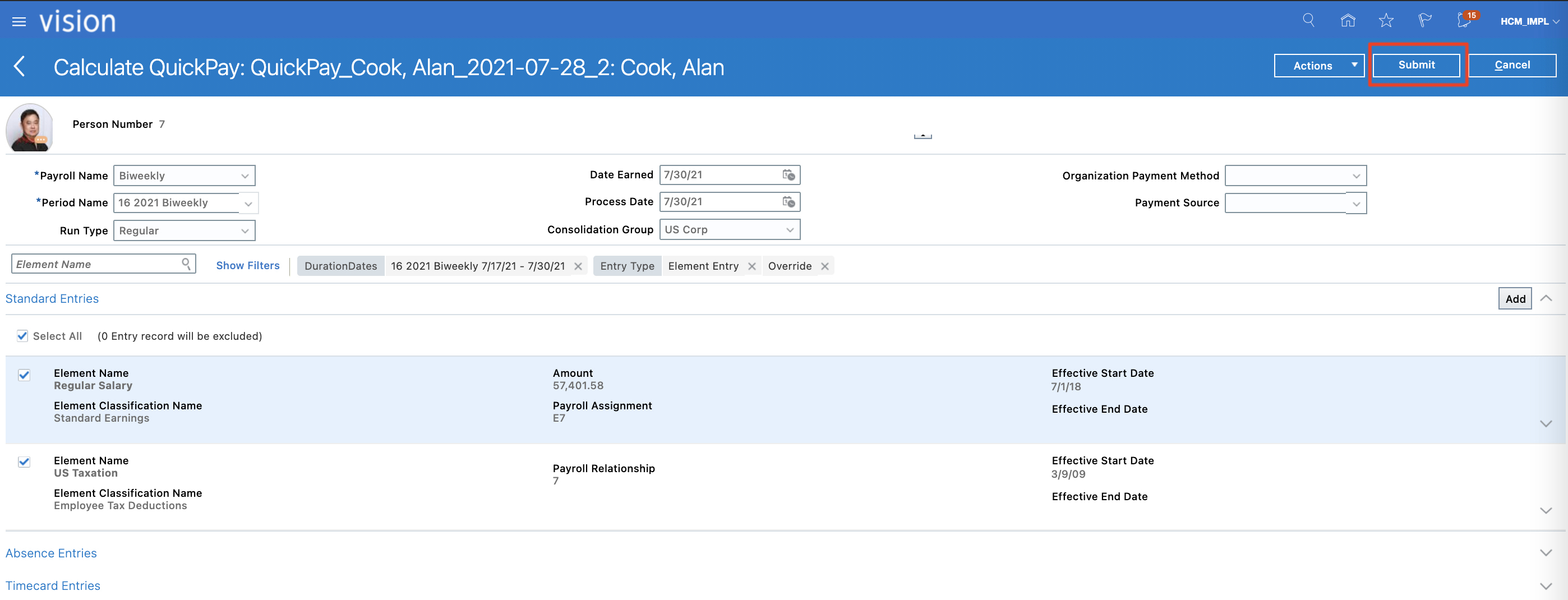

Figure 5 : Submit QuickPay

f) Wait for QuickPay Payment process to complete

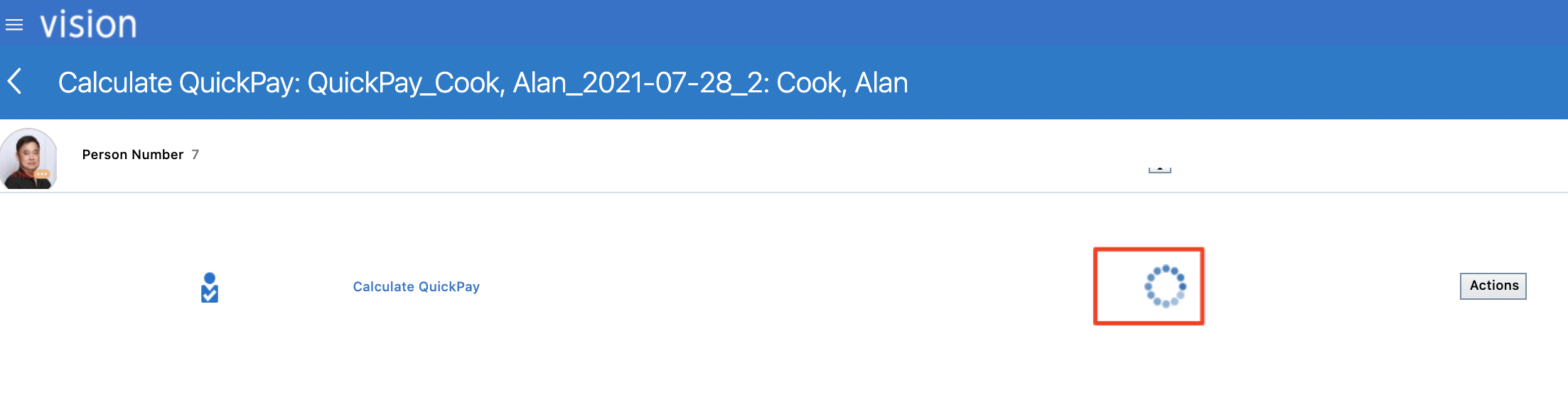

Figure 7 : QuickPay Payments Being Calculated

g) Review QuickPay Payment Calculation results.

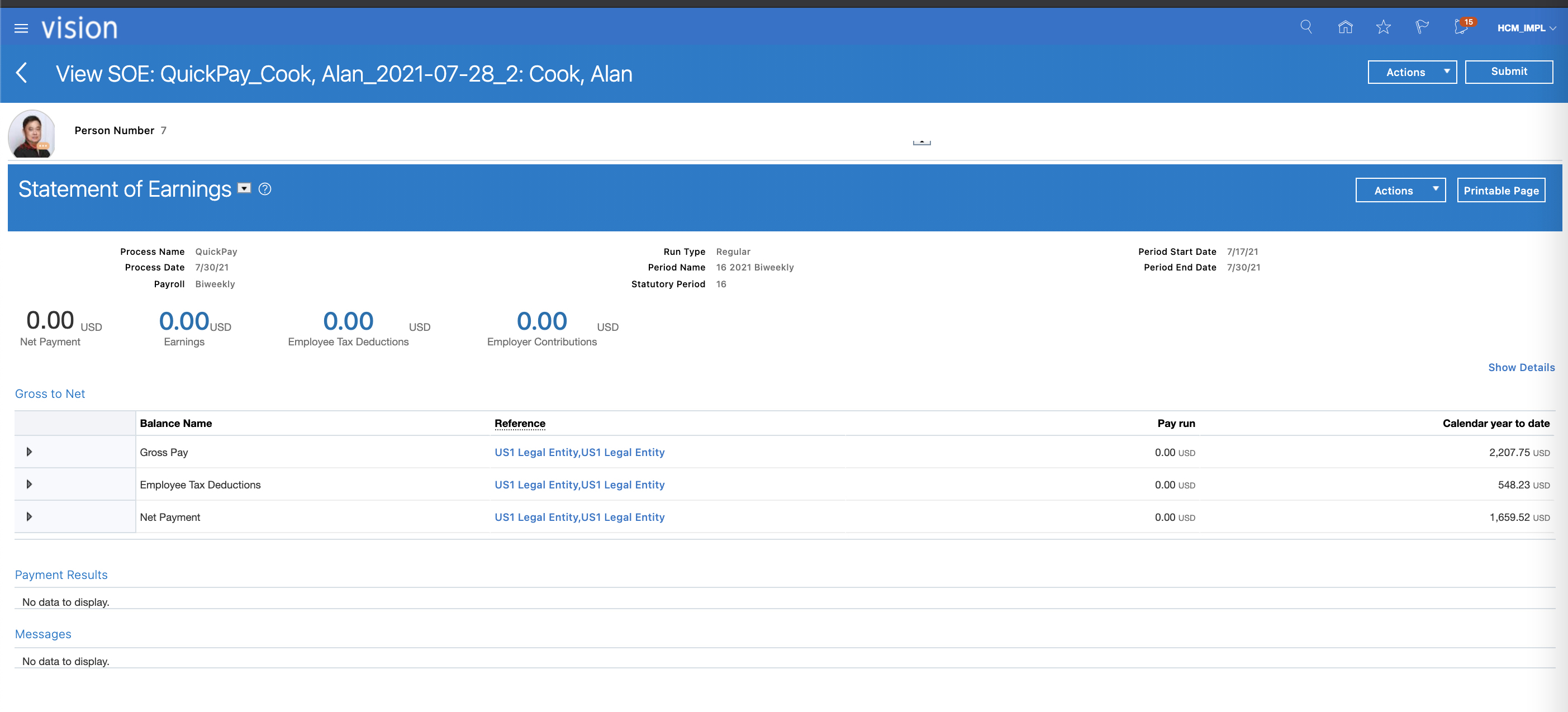

Figure 8 : QuickPay Payments Calculated

Creating the HCM Extract from an Existing HCM Extract

Follow the steps below to duplicate an existing HCM Extract.

a) Access My Client Groups > Data Exchange

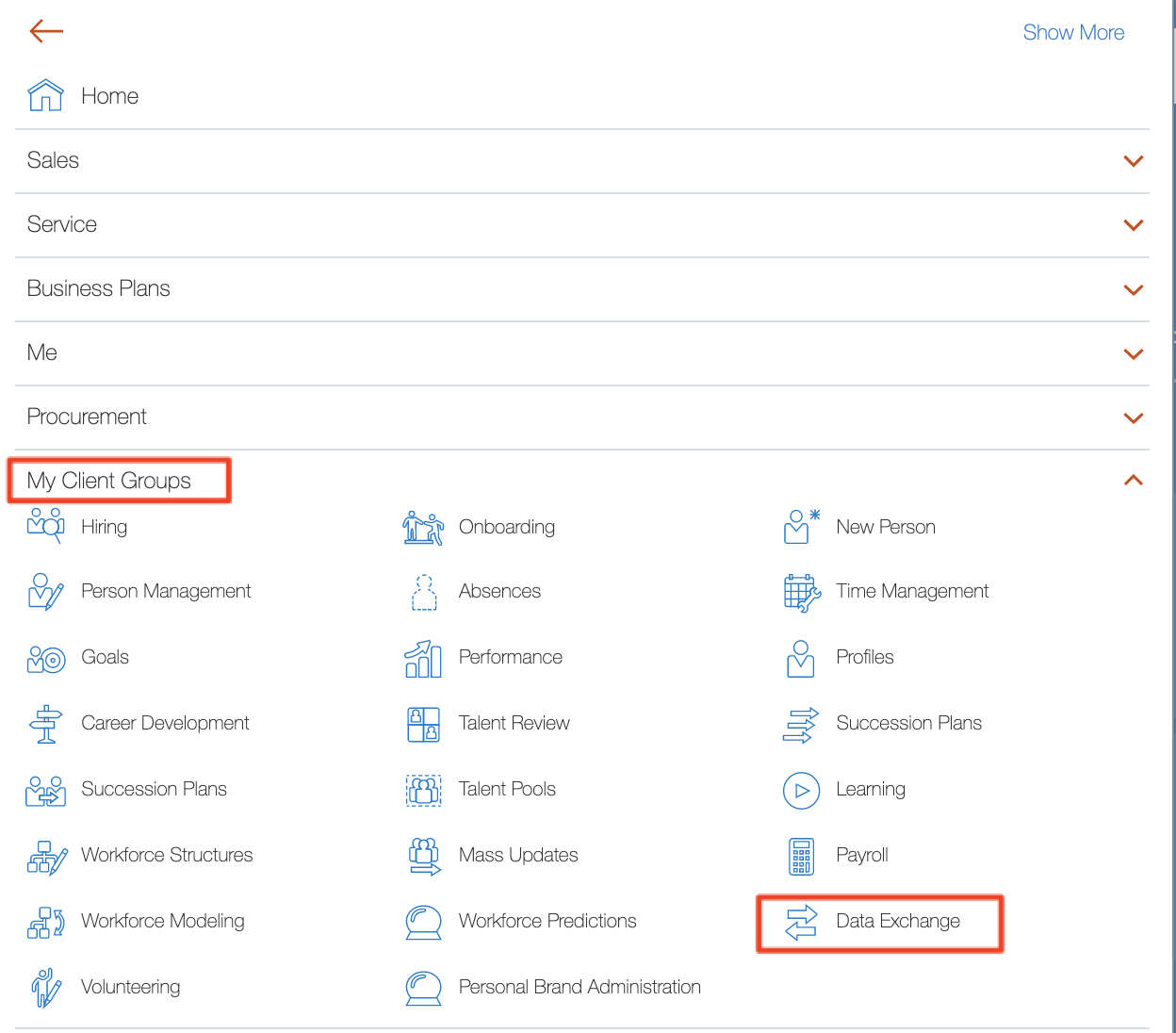

Figure 9 : Access Data Exchange

b) Search for Extract and click Extract Definition

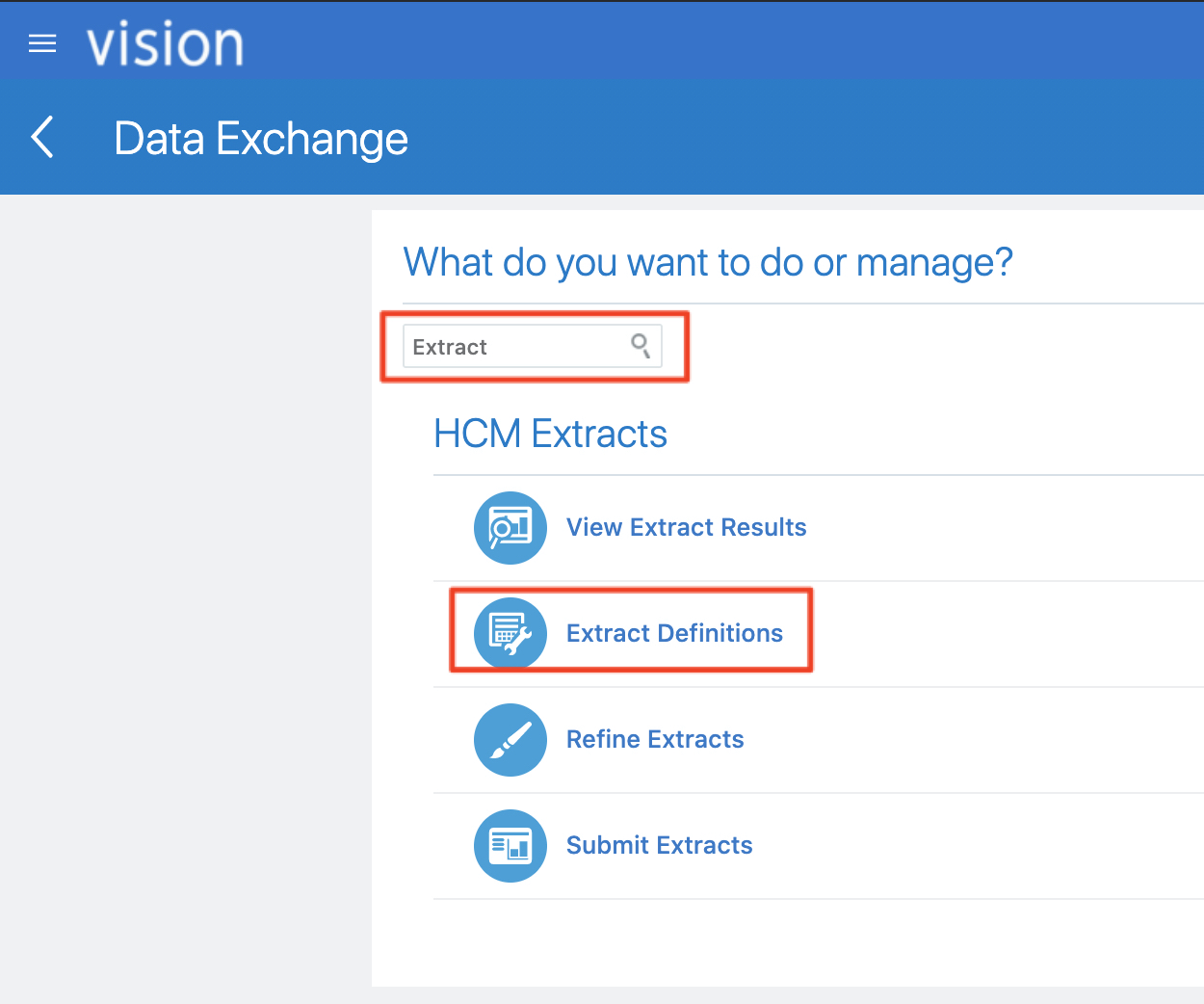

Figure 10 : Extract Definition

c) Filter by Global extract and duplicate Payroll Costing Report

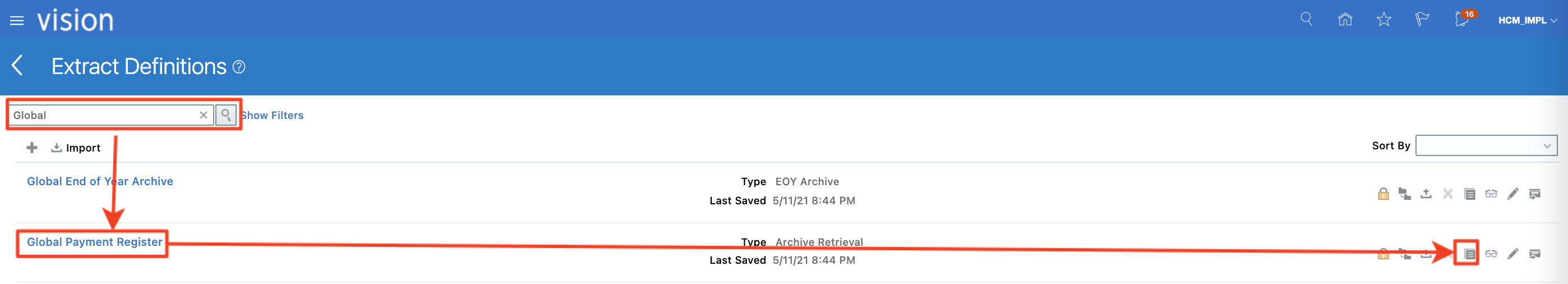

Figure 11 : Duplicate  HCM Extract Definition

d) Enter a name (here Global Payment Register MLO) for the new Extract and click OK

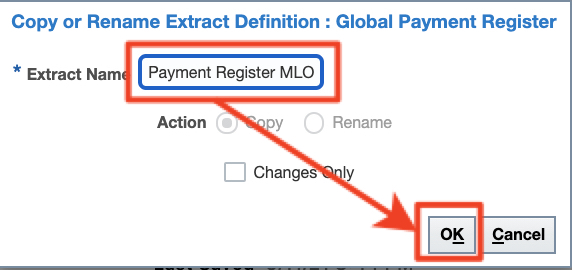

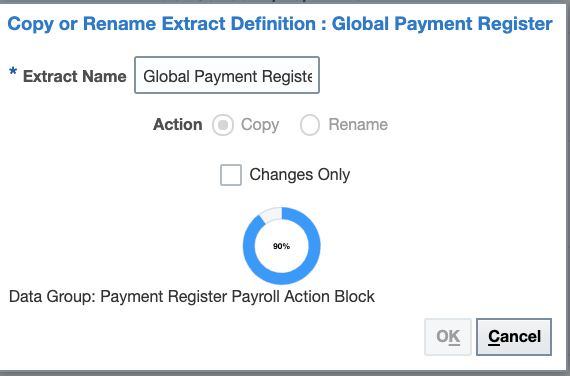

Figure 12 : Enter copied name for HCM Extract

f) Wait for the copy to complete and confirm the HCM Extract has been duplicated

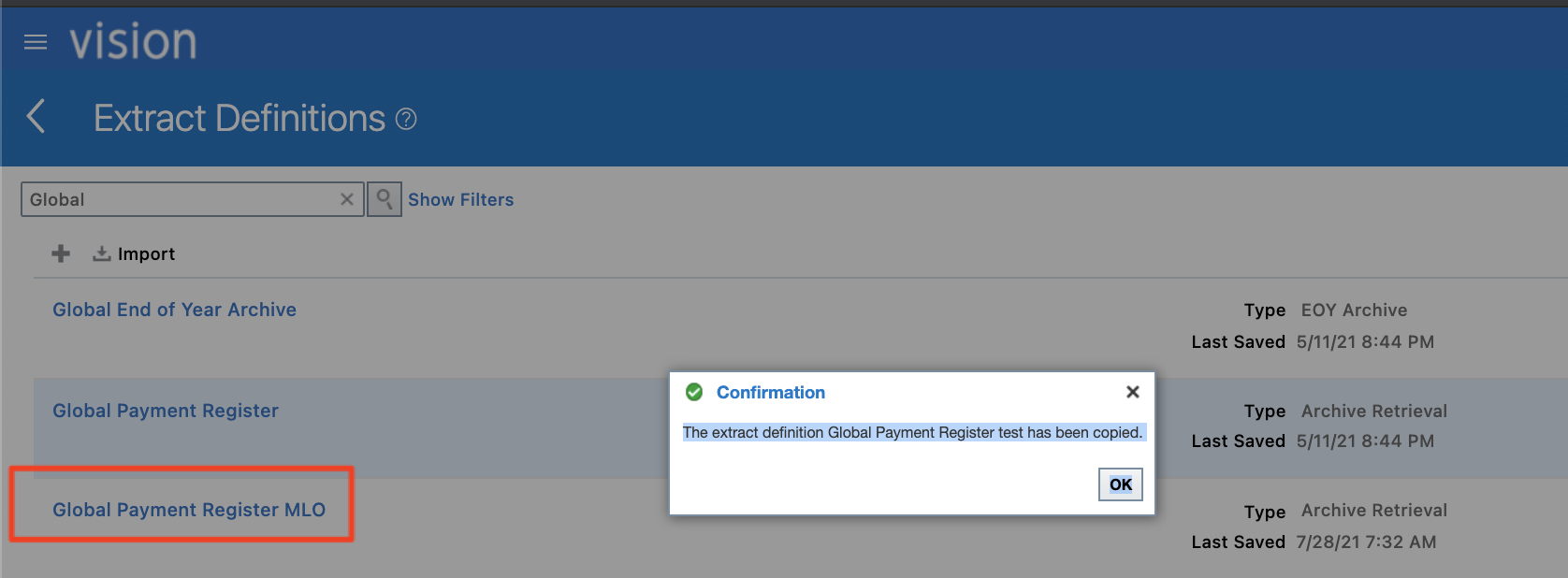

Figure 13 : Validate that the HCM Extract has been duplicated

Duplicating the BI Publisher Report to the Custom

HCM Extracts leverage BI Publisher as a delivery mechanism of the output data. In Fusion OTBI, it is not possible to modify an out of the box BI Publisher report (to update a BI Publisher template, to update the output format of a

In order to update the delivery output of a BI Publisher report, the original report needs to be copied under the Custom catalog folder.

Follow the steps below to copy the Payment Register BI Publisher report from its delivered location to the Custom location of your choice:

a) Using the BI Publisher catalog feature copy the Payment Register BI Publisher report from /Human Capital Management/Payroll/Payroll Calculations/ to /Custom/Human Capital Management/Payroll

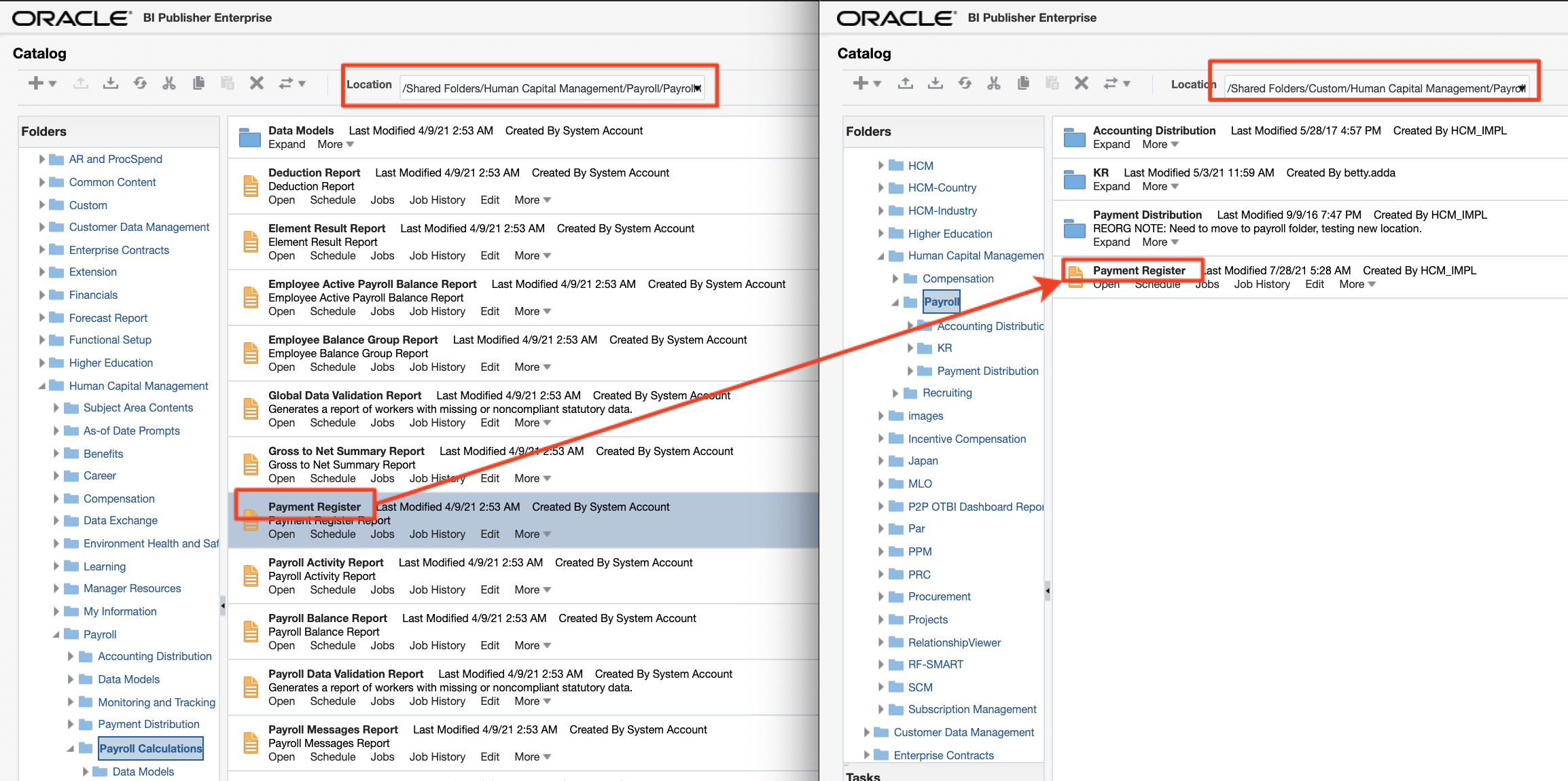

Figure 14 : Copy the BI Publisher Report to the Custom Folder

b) Access the copied version of the and Edit the report

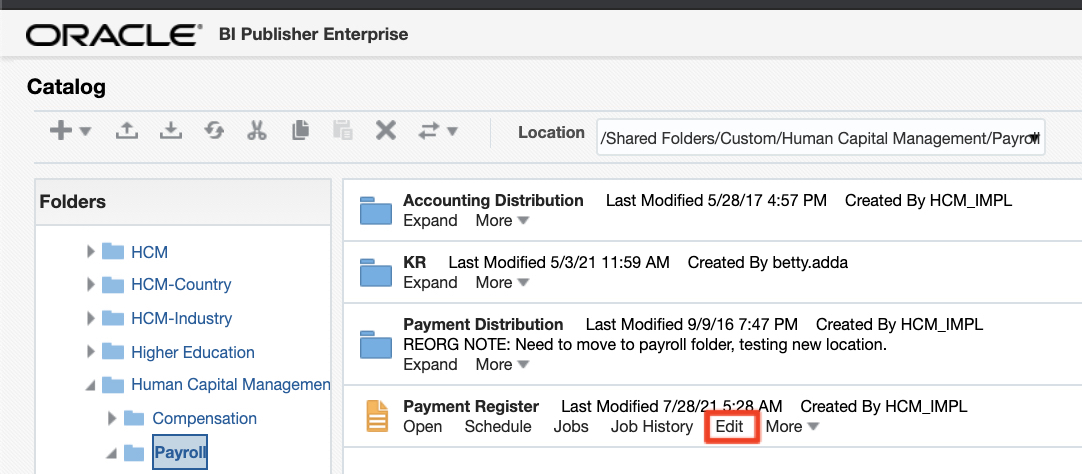

Figure 15 : Edit the BIP Report

c) Click on View as list. Update Output Formats and Default Format to be set to Data (CSV) for the Payment Register and Payment Register Results layouts

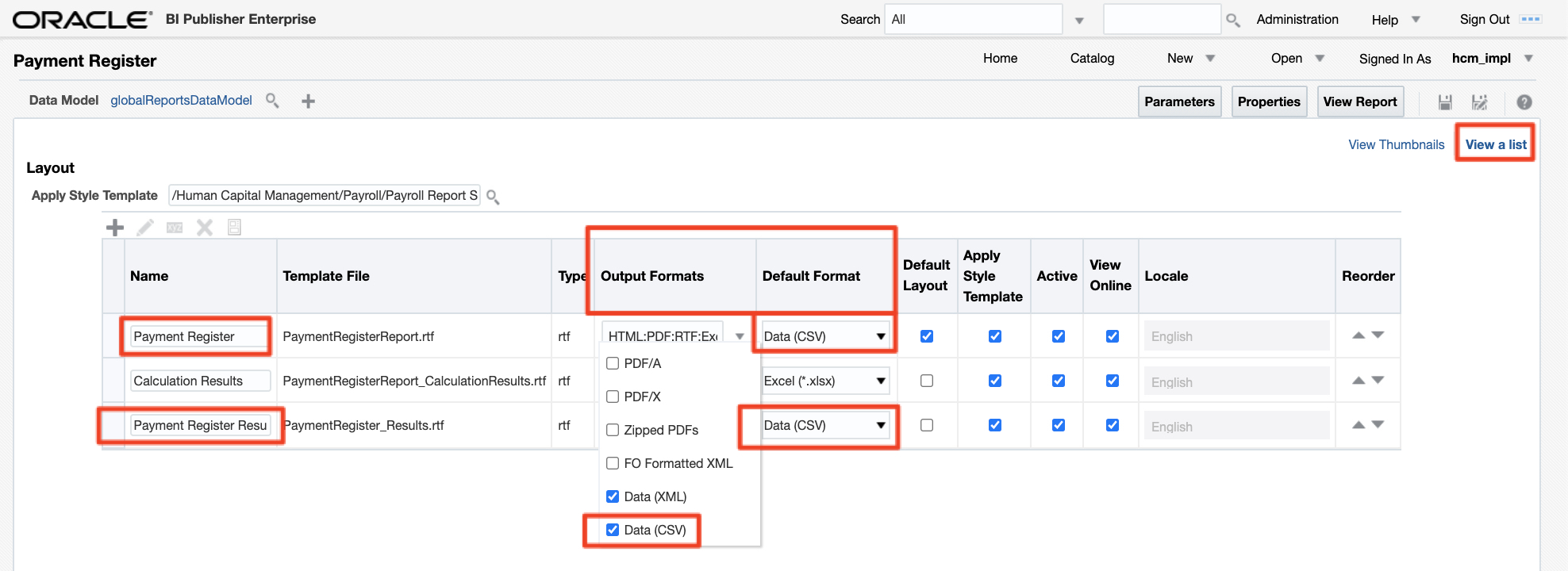

Figure 16 : Update the BIP Layouts

d) Save the changes

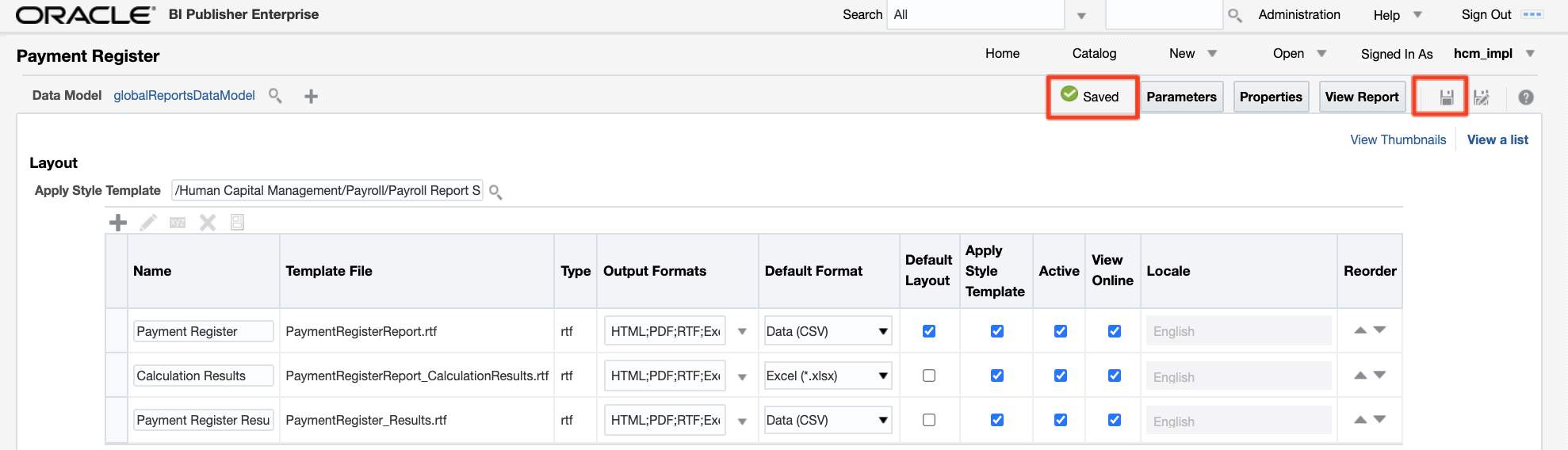

Figure 17 : Save

Updating Extract Delivery options

By default, the delivery options of the HCM Extract duplicated in the previous steps don't include FTP / SFTP delivery. Follow the steps below to the update the HCM extract delivery option

a) From Home > My Client Groups > Data Exchange > Extract Definitions, open the HCM Extract by clicking on its name

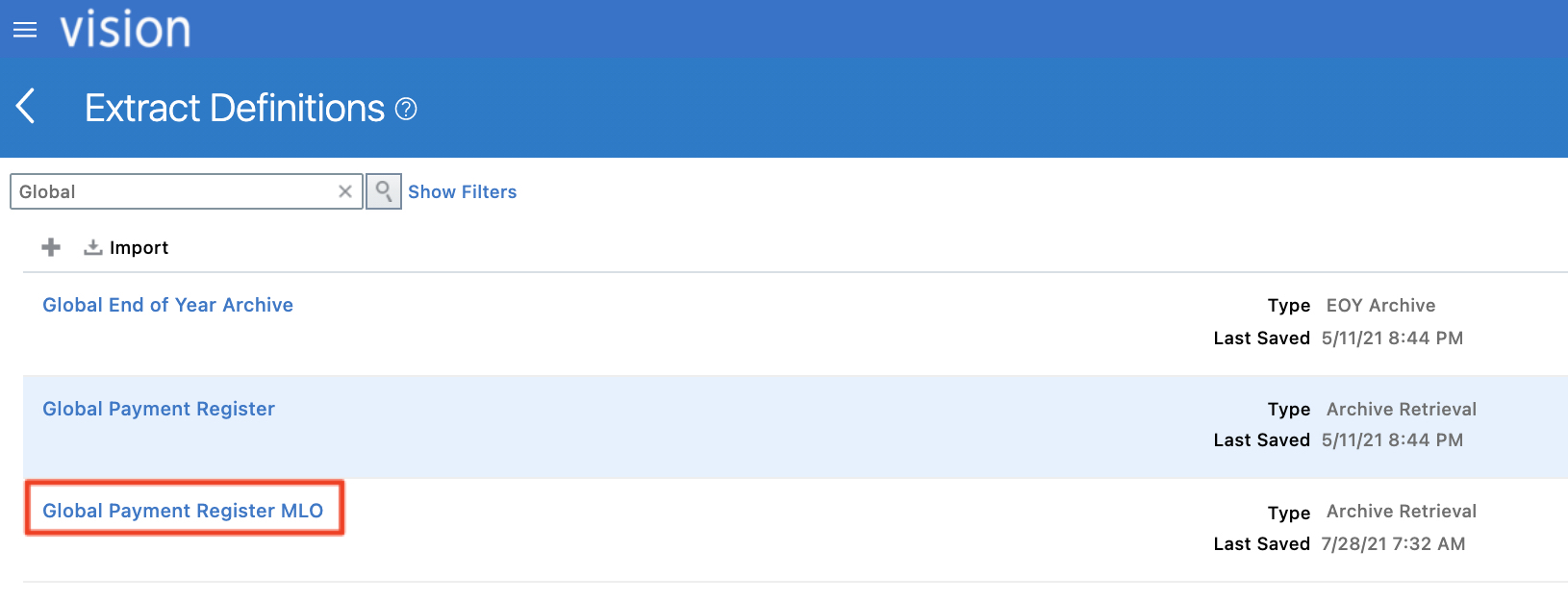

Figure 18 : Open the HCM Extract

b) Click on the Deliver menu on the left hand side and click the plus button to add a new one

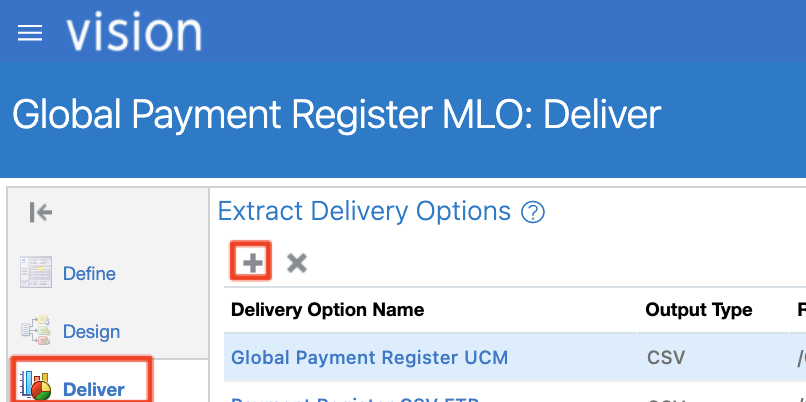

Figure 19 : Open the delivery options and  add a new one

c) Enter Payroll Costing Results - SFTP in the delivery option name and FTP in the delivery type.

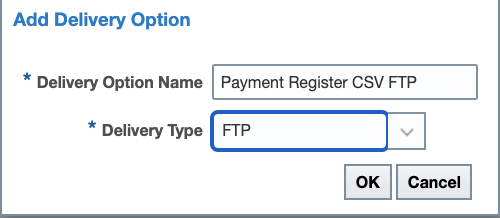

Figure 20 : Add FTP / SFTP Delivery option

d) In the new delivery option screen, enter the information below (as per the BI Publisher report copied in the Custom Folder and the SFTP Configuration in BI Publisher done in the Part 1 blog of the series).  Make sure the Required check box is checked.

Output Type

CSV

Report path

/Custom/Human Capital Management/Payroll/Payment Register.xdo

Template Name

Output Name

Payment Register Results

Payment Register CSV FTP%de



Remote Directory

/u01/oracle/oss/s3fs-fuse-sftp-bucket

Remote File Name

HCMX_PAYMENT_REGISTER.CSV

Server Name

ODI_VM_SFTP

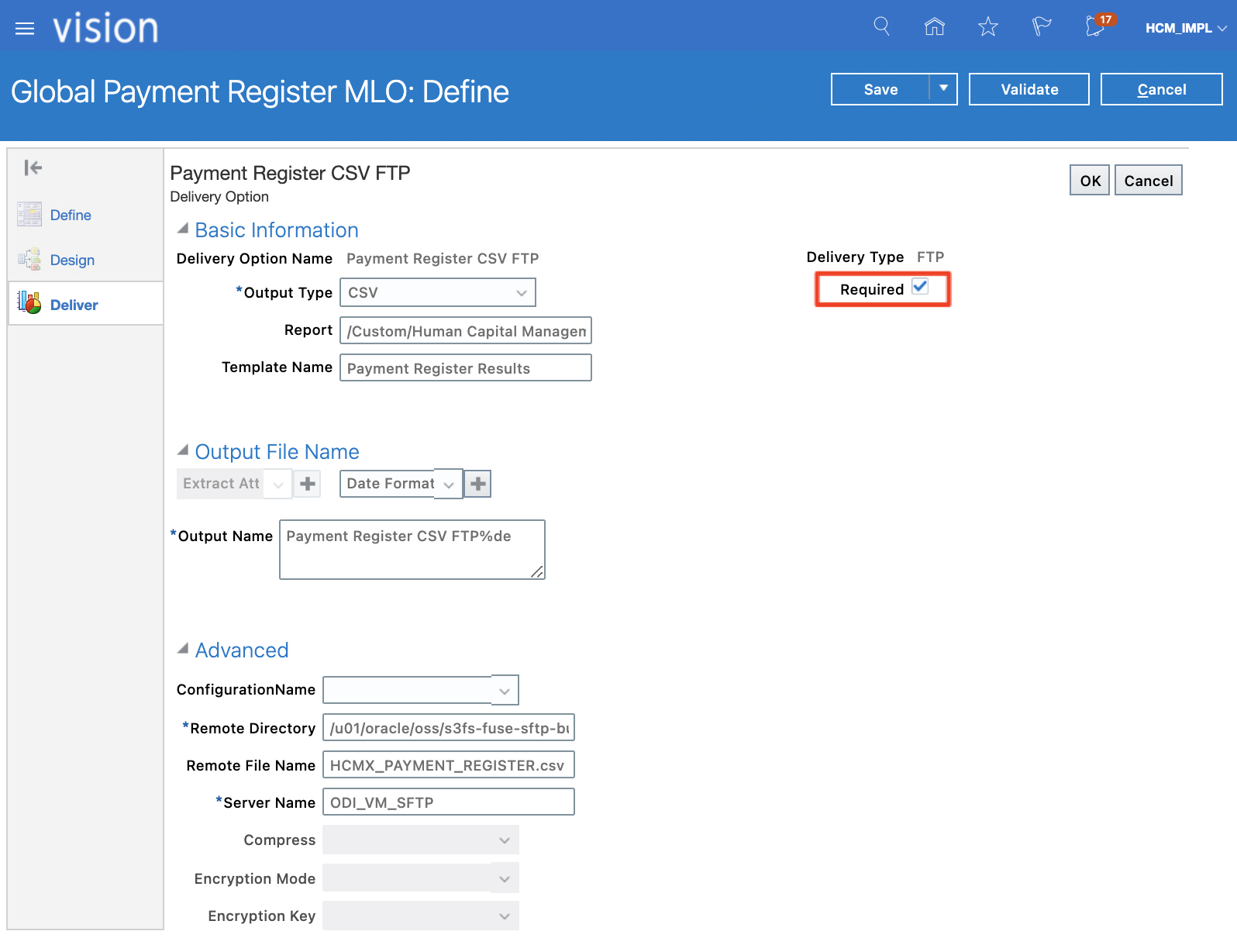

Figure 21 : SFTP Delivery options details

e) Save and confirm the new delivery option was added and save

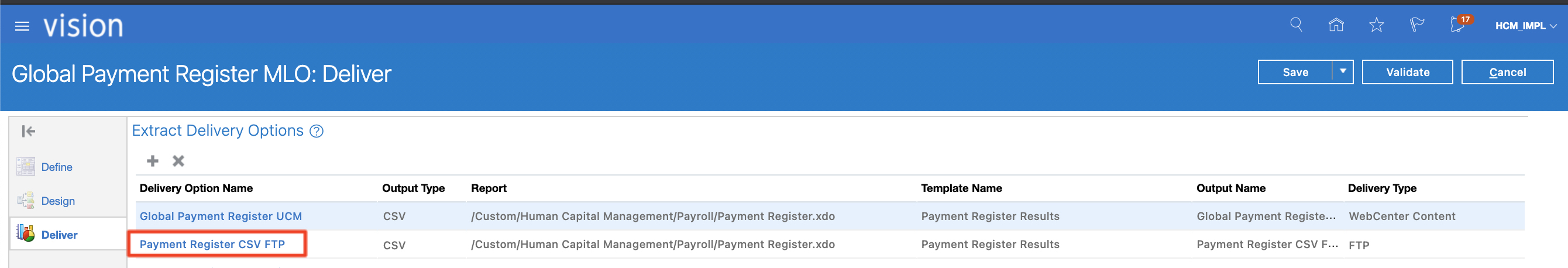

Figure 22: SFTP Delivery option added

f) Save and close

Figure 23: Save and Close

g) Click on Advanced Edit to update the start / end date of the new Delivery Options

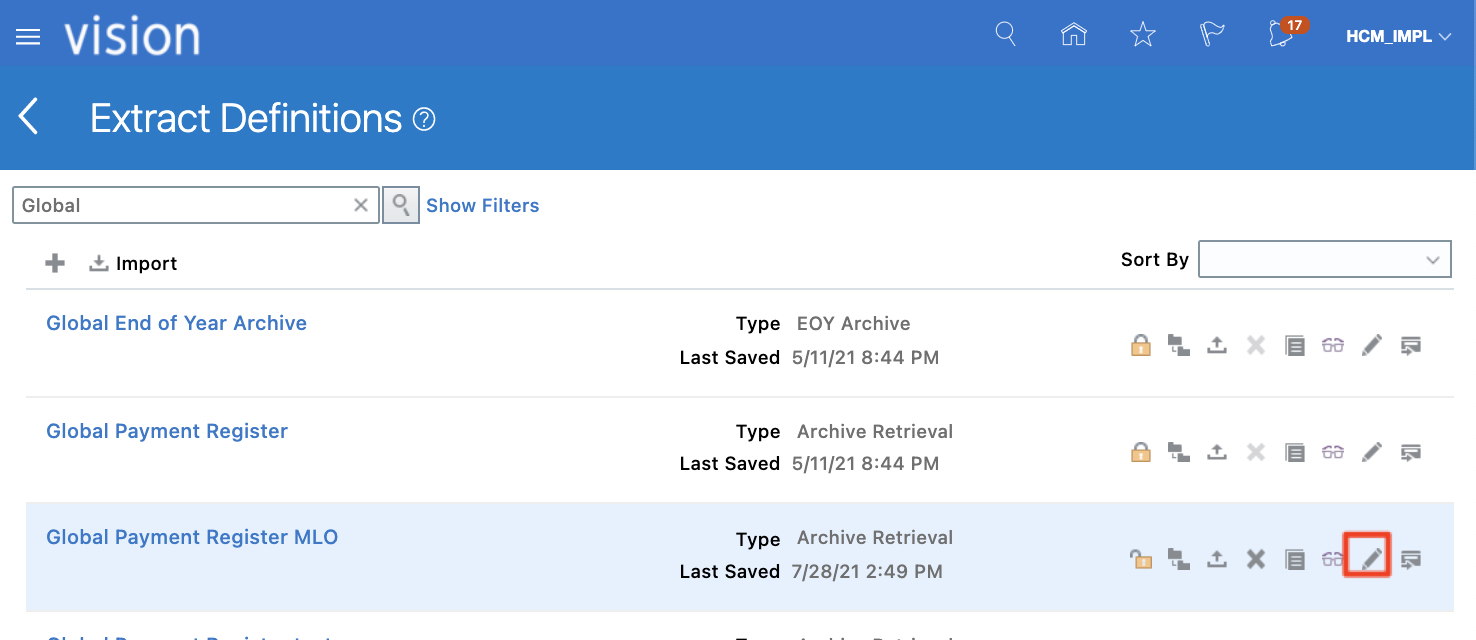

Figure 24: Advanced Edit

g) Update the start date to 1/1/01

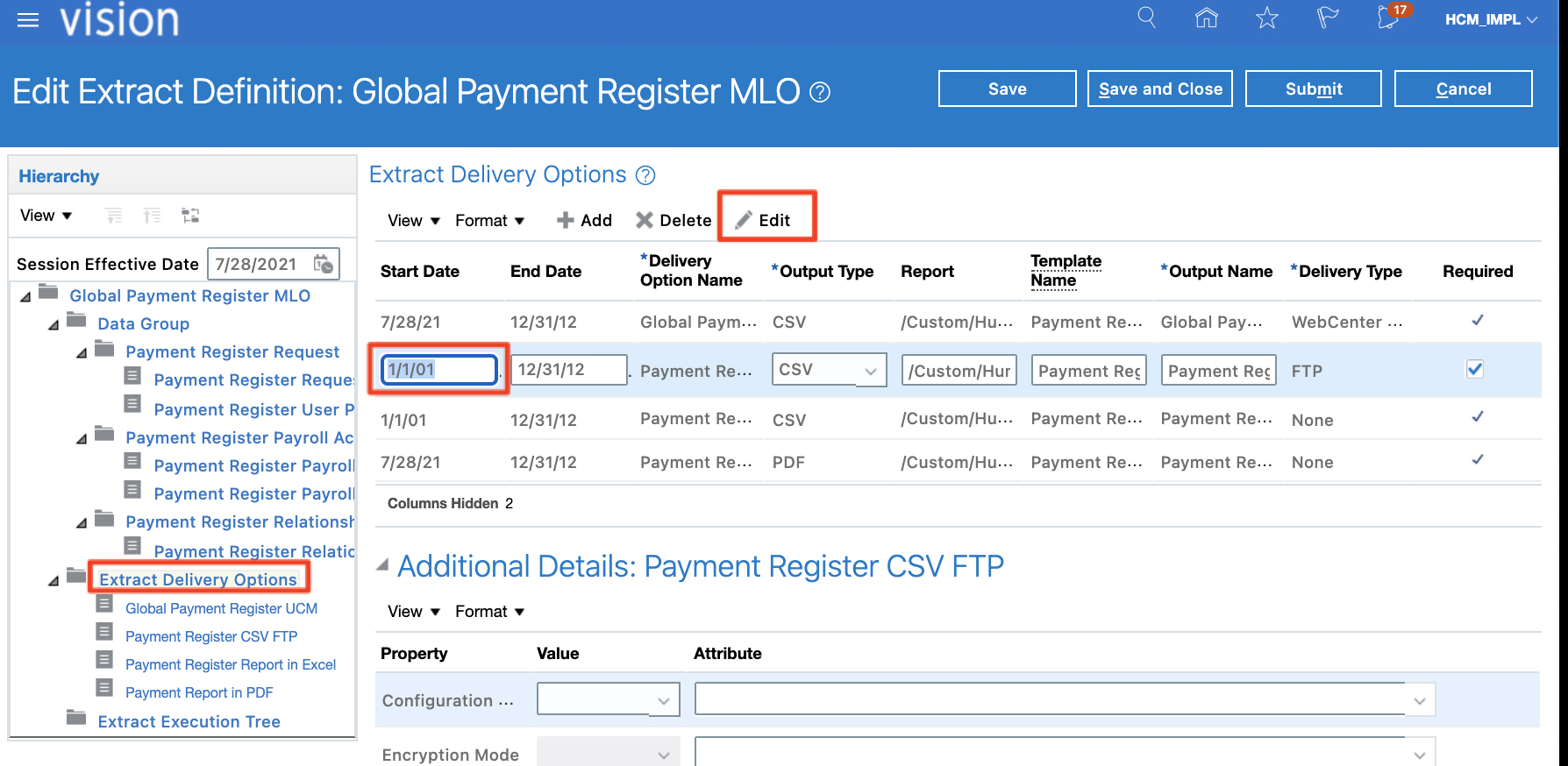

Figure 25: Update SFTP Delivery option start date

g) Save and Close

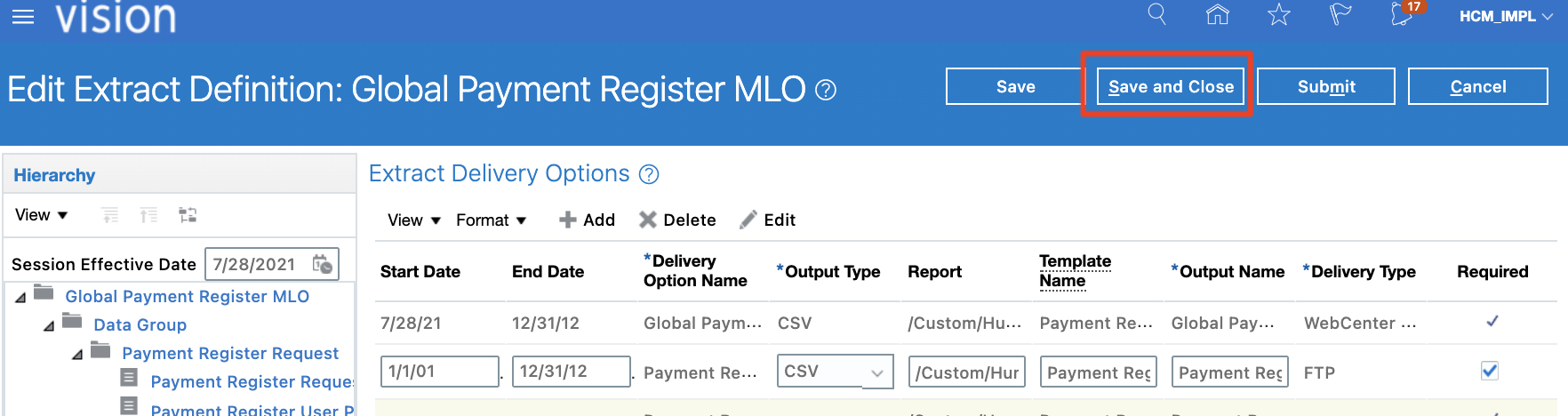

Figure 26: Save and Close

Validate Extract

In order to be able to run the duplicated HCM Extract, it needs to be validated. Follow below steps to run the validation

a) From the delivery options window, click on Validate button next to save

Figure 27: Validate HCM Extract

b) Click OK.

Figure 28: Run validation

c) Click on Refresh. Verify that the data group hierarchy structure is valid verify that all the fast formulas are valid. Click the Done button in the upper right corner

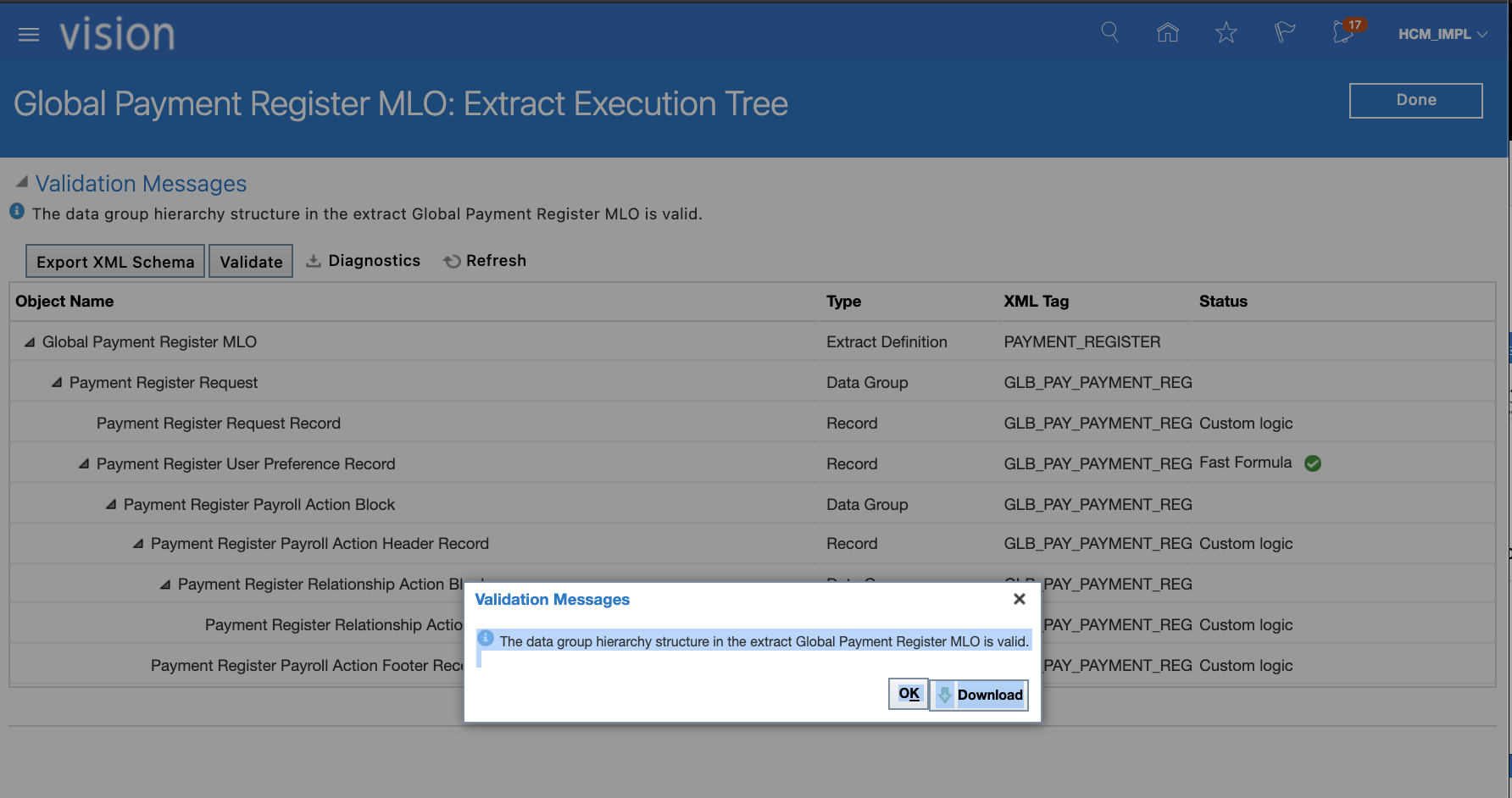

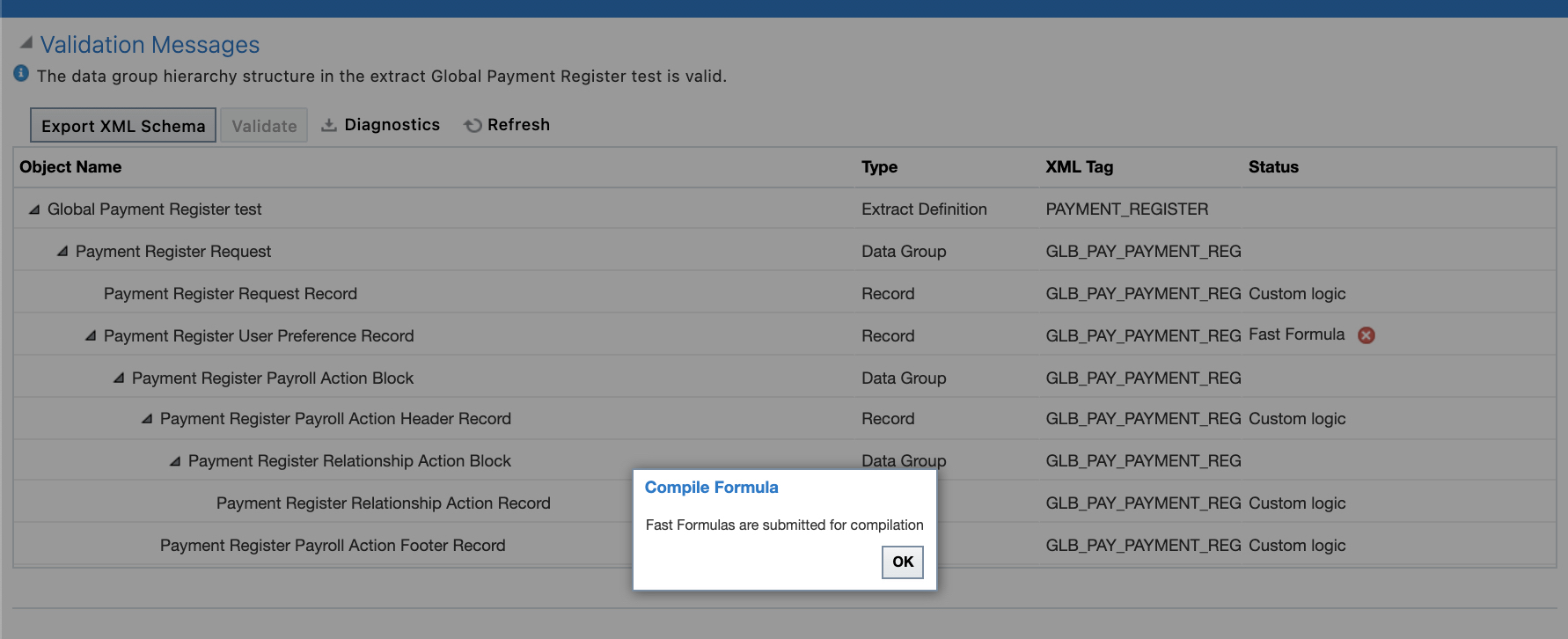

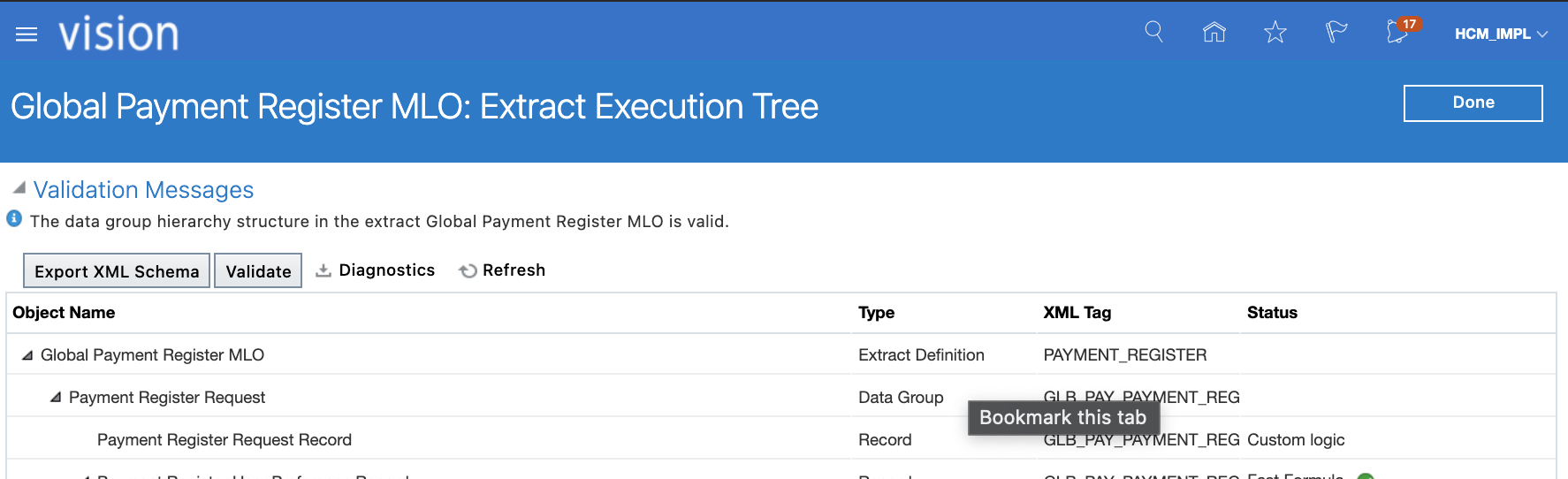

Figure 29: Refresh and confirm Fast Formula are valid.

Submitting the HCM Extract

Now that the HCM Extract is ready and data has been prepated, we can run the HCM Extract by submitting the corresponding Payroll Flow.

Manually Submit the HCM Extract

a)  Navigate to Home > My Client Group > Payroll

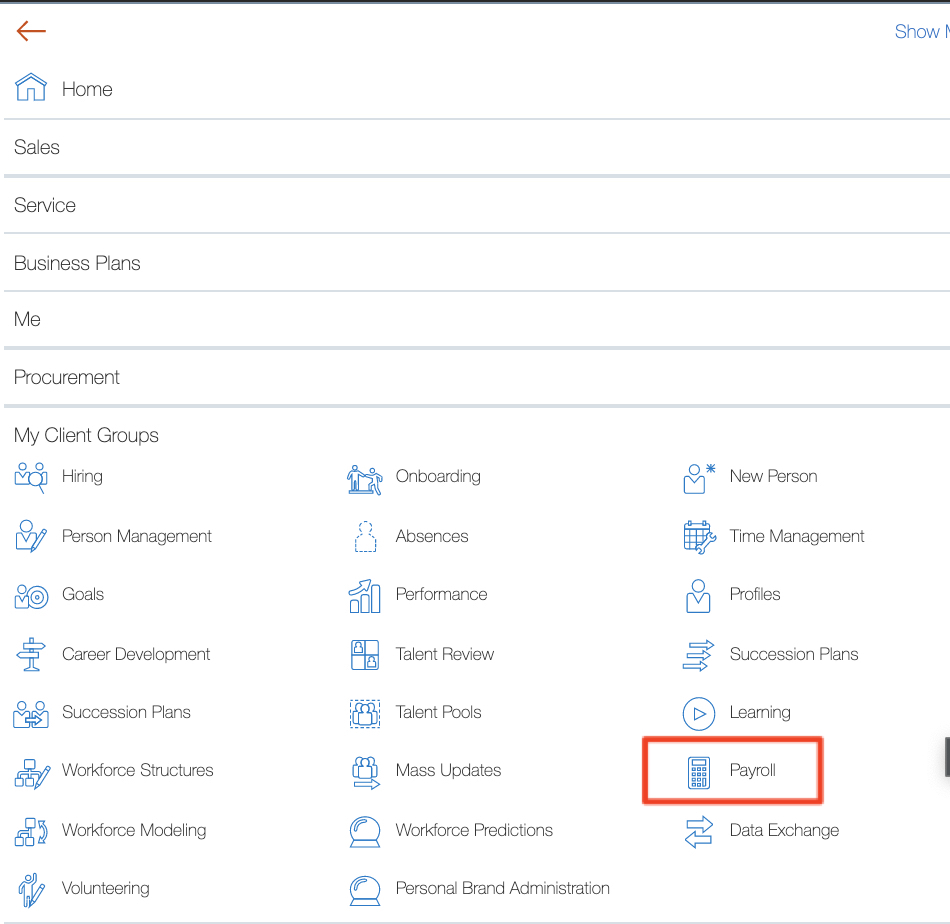

Figure 30 : Access Payroll

b)  Filter by word "Submit" and click on Submit a Flow

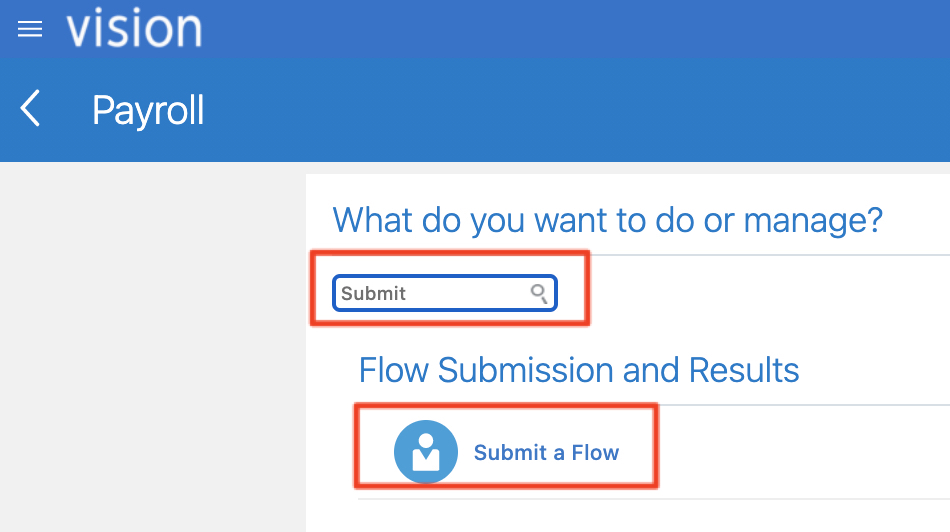

Figure 31 : Submit a Flow

c)  Filter by " Global" keyword and select Global Payment Register MLO flow

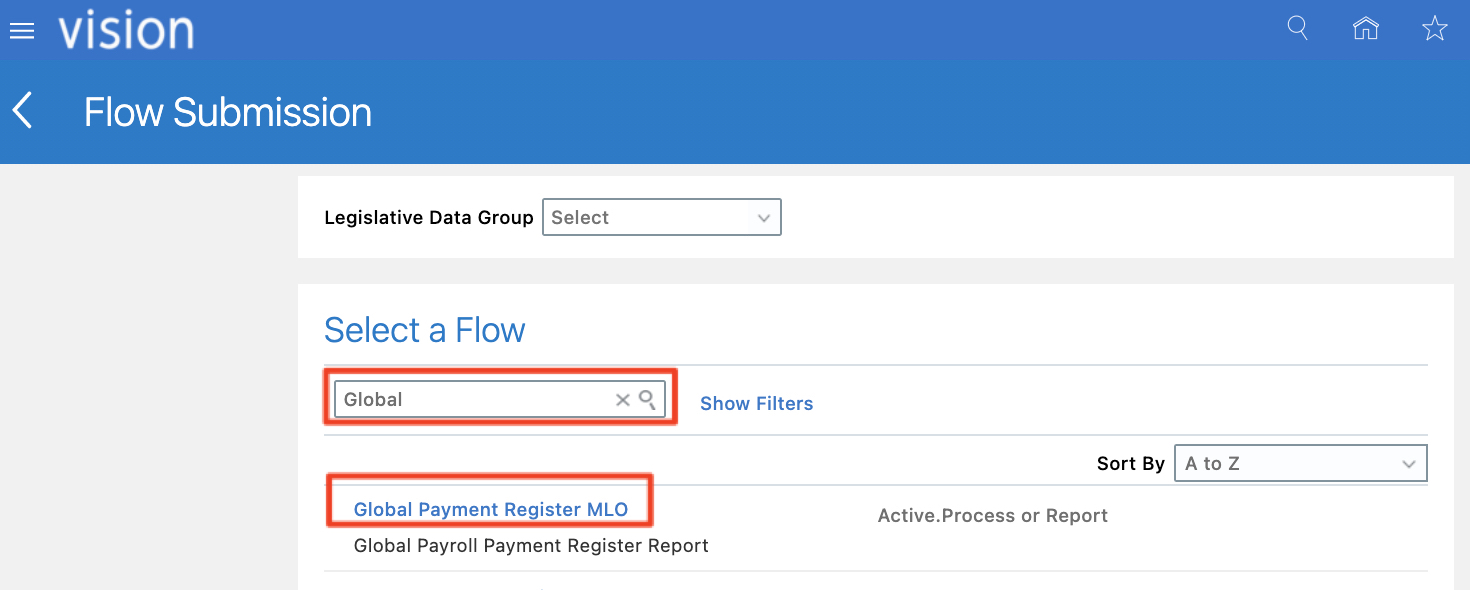

Figure 32 : Select Global Payment Register MLO Flow

d)  Enter the Flow details and make sure to choose a Person and Effective Date according to the data that has been prepared in previous section. Click Submit.

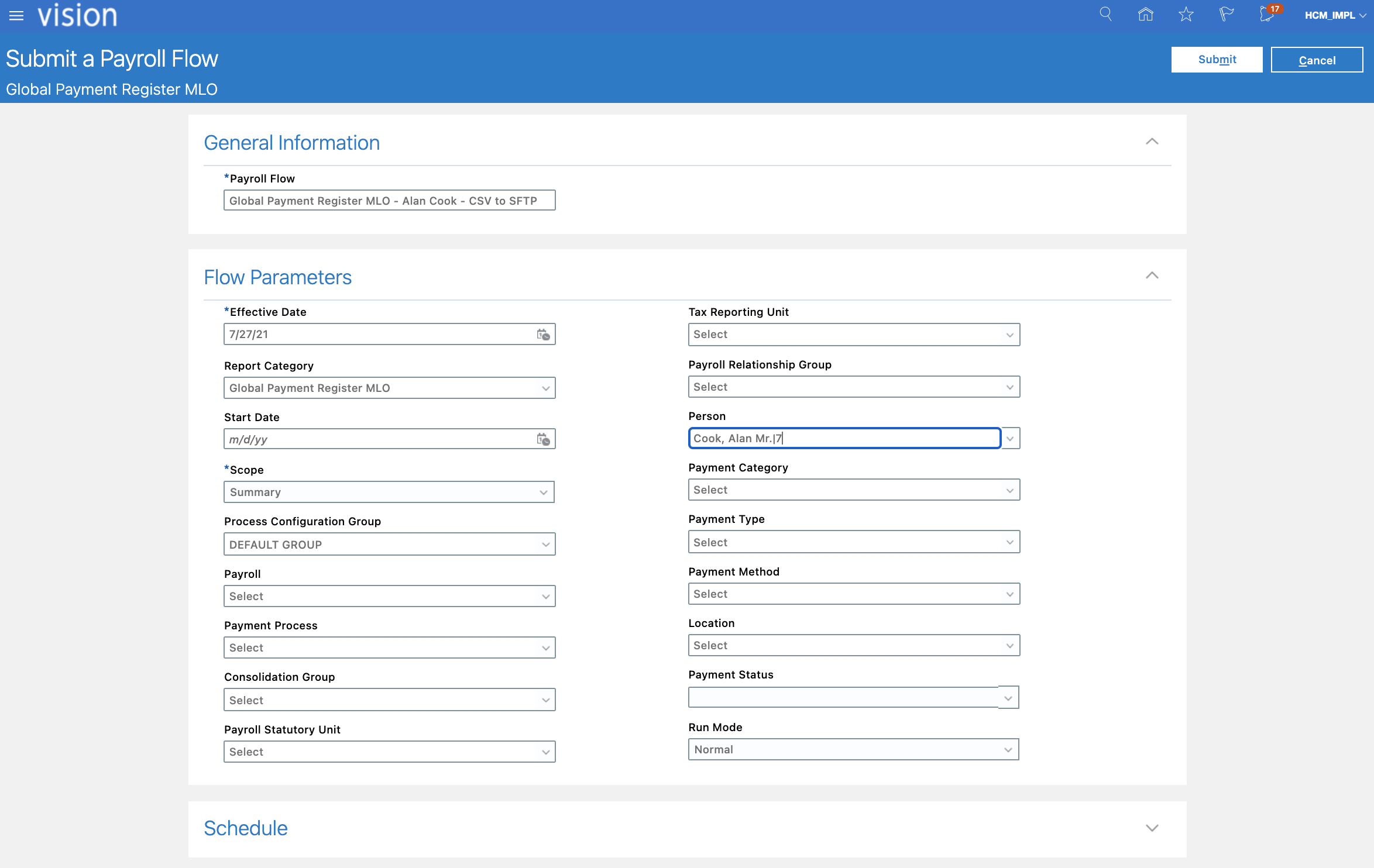

Figure 33 : Enter Flow details and Submit

e)  Wait for flow to complete

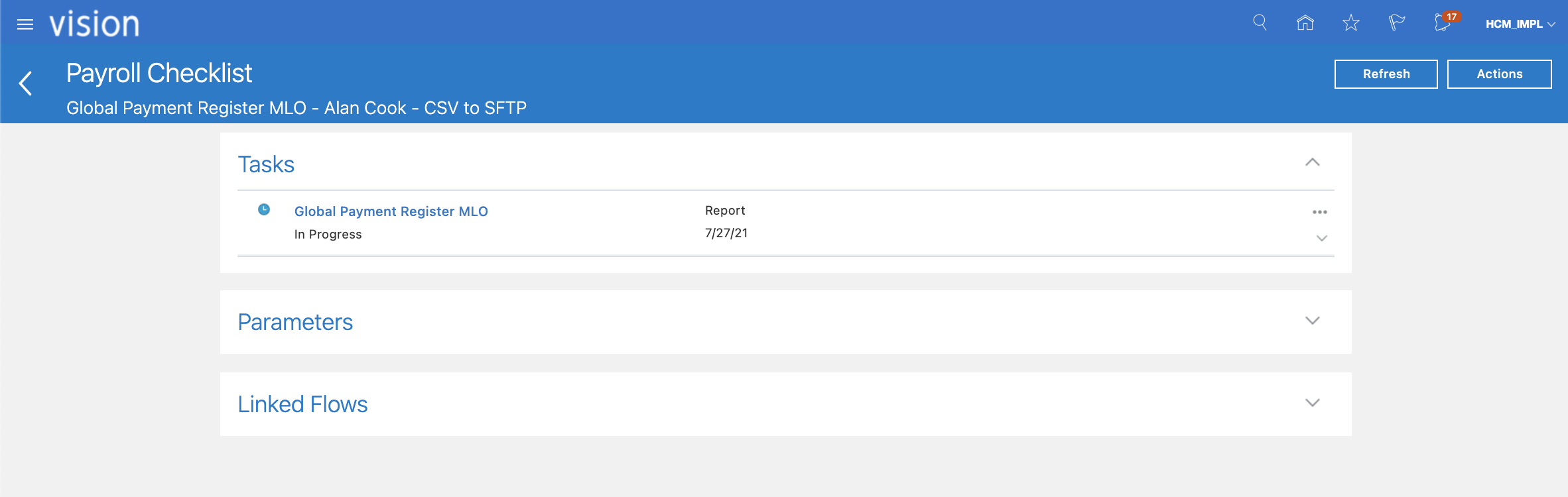

Figure 34 : Wait for Flow

f)  Once flow is completed, open the task to review

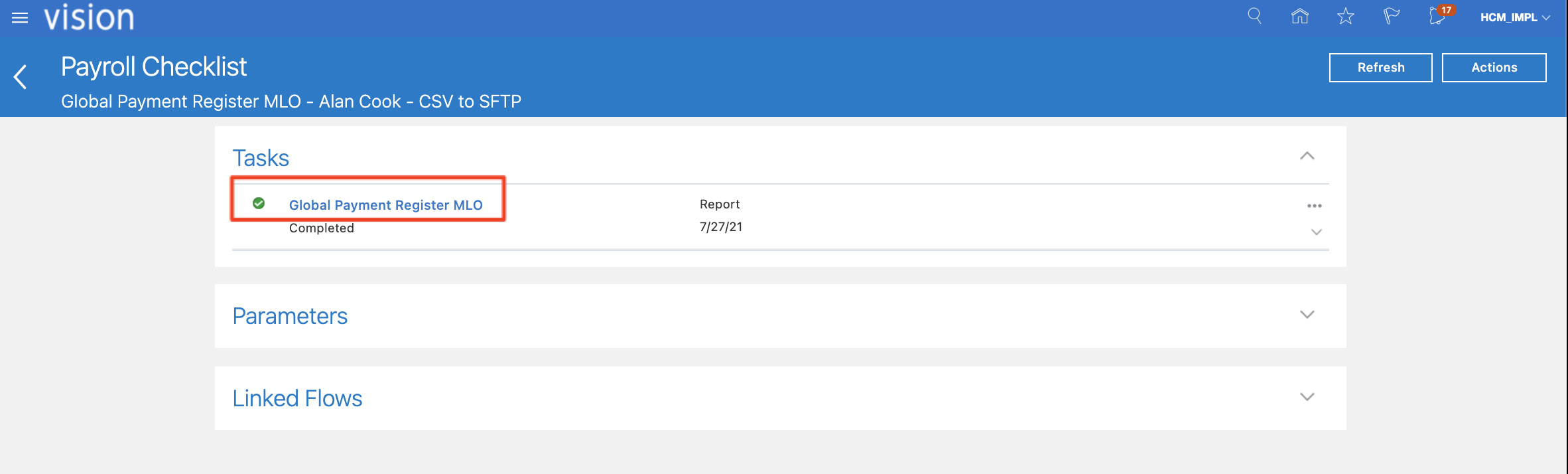

Figure 35 : Open Flow Task

g)  Review the Process Results

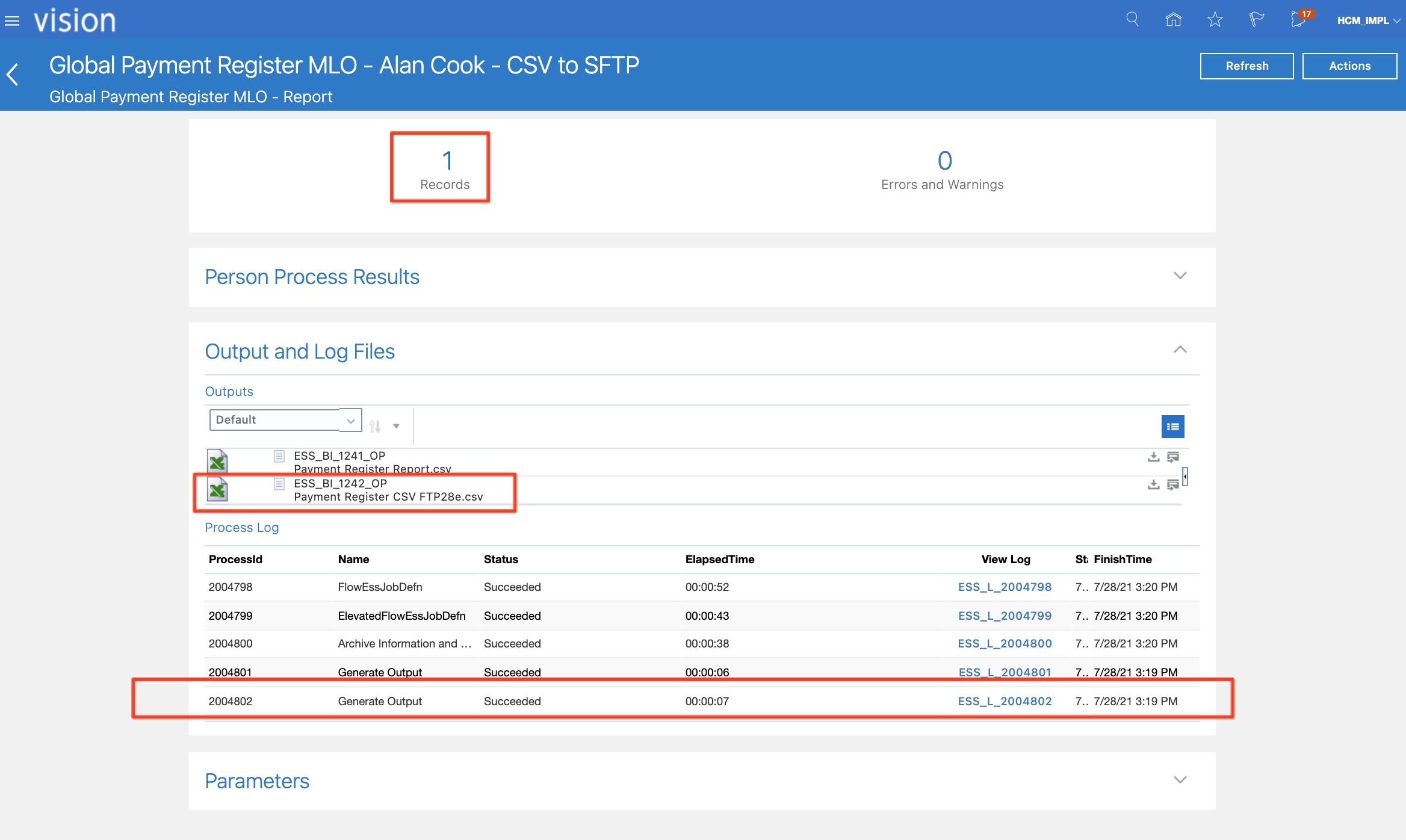

Figure 36 : Review Process Results

h)  Login to the ODI VM and verify that the HCM Extract file has been generated

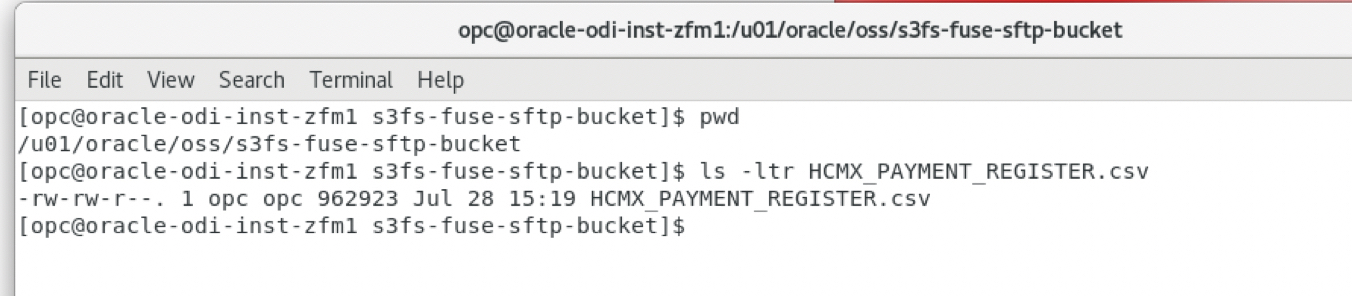

Figure 37 : Validate HCM Extract on ODI VM

i)  Navigate to the OCI Console and access the bucket that was configured during Part 1 blog.

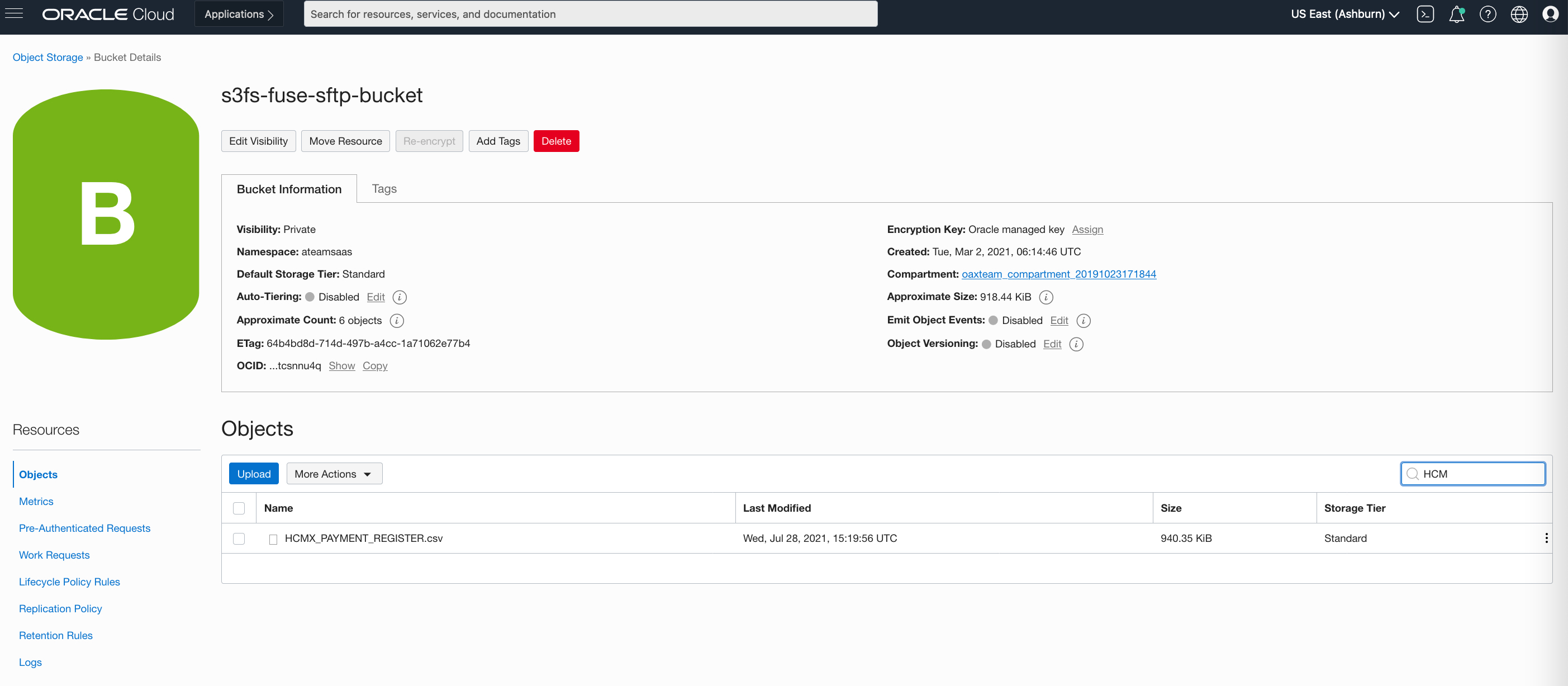

Figure 38 : Validate HCM Extract on OCI Console

This concludes the activities in this article.
