Use case

Most of the enterprise adapting to Multi Cloud and Hybrid Cloud strategy and their legacy/custom/cloud-native web applications are hosted on different cloud providers and on-prem datacentre. Instead of requiring all applications to add the OpenID Connect flows directly, API Gateway can enforce access in a standardised manner on the network. API gateway can act as centralised security module which implements OpenID connect flow so that the web applications can offload the security implementation to API Gateway. This will optimise the costs associated with implementation, maintenance and complexity.

This blog will discuss steps to secure any web application using the OIDC feature of OCI API Gateway along with logout functionality.

Overview of API Gateway

API gateway is a serverless fully-managed service in OCI that can be used to protect API endpoints and web applications. It provides many security functionalities like rate limiting, authorization enforcement, dynamic routing, SSL enforcement, and many more

Overview of OpenID Connect

The OpenID Connect (OIDC) protocol is a simple identity layer on top of the OAuth 2.0 protocol. OpenID Connect enables different types of applications, such as browsers, mobile applications, and desktop clients, to support authentication and identity management in a secure, centralised, and standardised way. Apps based on the OpenID Connect protocol rely on identity providers to securely handle authentication processes and verify user identities.

If you are interested, you can find more information about the OAuth standard and OIDC here.

Guide to Secure Web applications using OCI API Gateway OpenID authentication

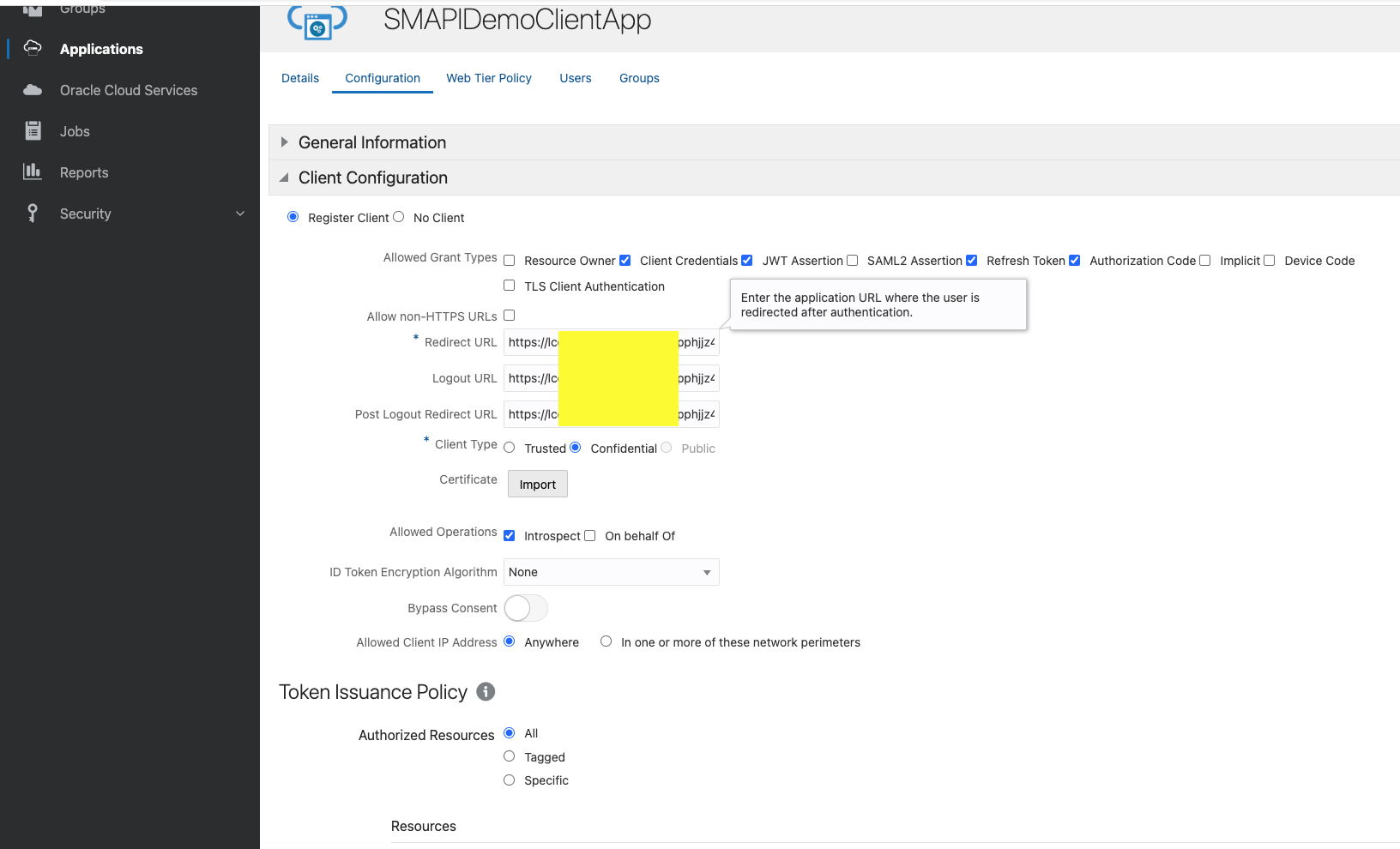

Oracle IDCS Domain Configuration

Please refer the blog and section “Identity Domain Configuration” for IDCS configuration.

Redirect URL:

https://lcoxxxxxxxxxxxjjz4.apigateway.us-ashburn-1.oci.customer-oci.com/ic/builder/rt/MasterDetailDetail/1.0/webApps/webapp1/

Logout URL:

https://lcoxxxxxxxxxxxjjz4.apigateway.us-ashburn-1.oci.customer-oci.com/ic/builder/rt/logout?postLogoutUrl=https://lco2mfhekpbuunh3f4mpphjjz4.apigateway.us-ashburn-1.oci.customer-oci.com/ic/builder/rt/home

Post Logout Redirect URL :

https://lcoxxxxxxxxxxxjjz4.apigateway.us-ashburn-1.oci.customer-oci.com/ic/builder/rt/home

Create Secret in OCI Vault

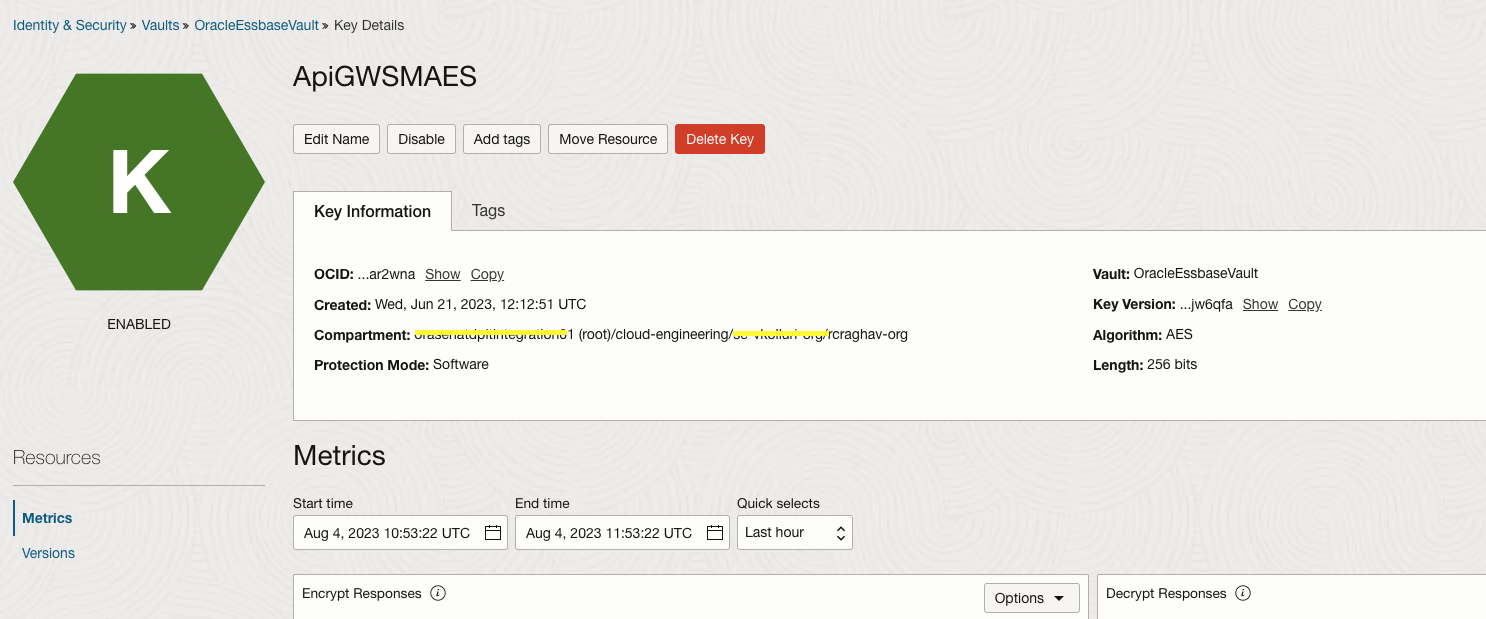

Step 1 : Create Master Key.

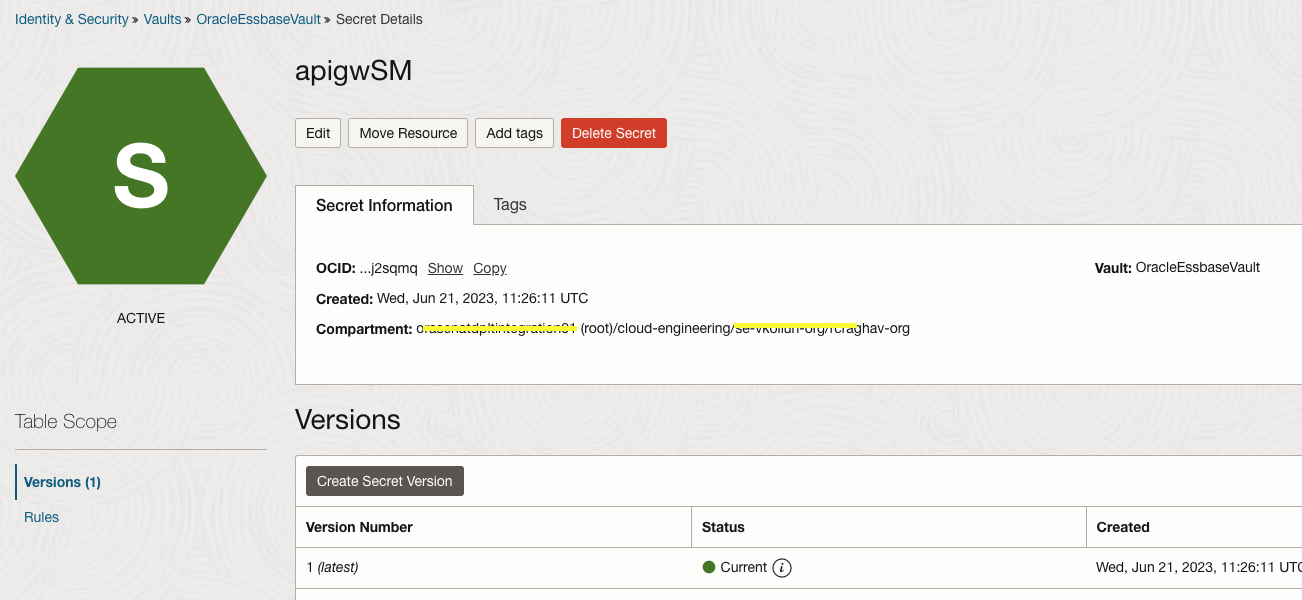

Step 2: Create a Secret

Create Policy:

Note: API gateway requires OIDC client ID and client secret. You have to store the client secret in the OCI vault and create an IAM policy so that the API gateway can read the secret

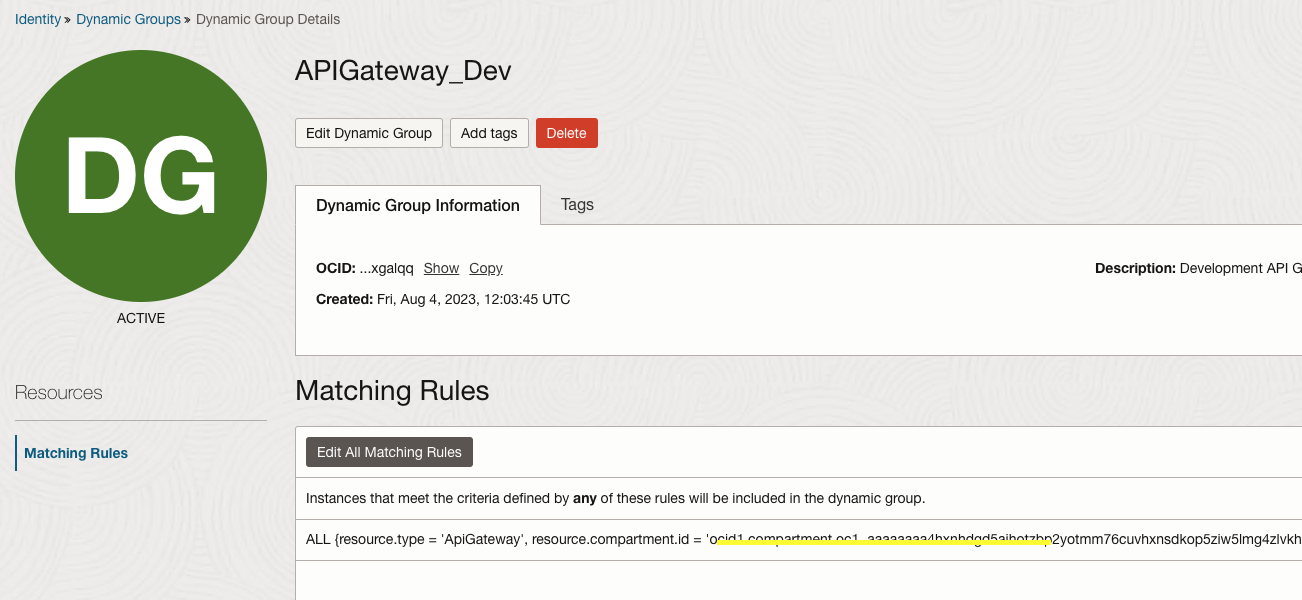

Step 1 : Create Dynamic Group

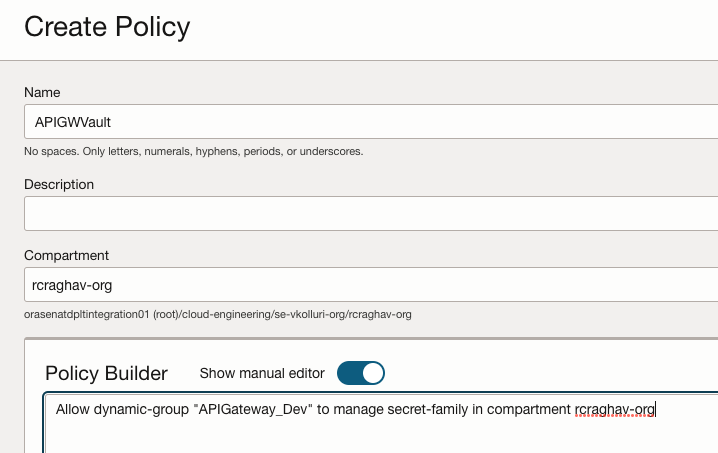

Step 2 : Create Policy

Allow dynamic-group “APIGateway_Dev” to manage secret-family in compartment rcraghav-org

API Gateway Deployment Configuration

You can follow the steps here to create an API gateway deployment.

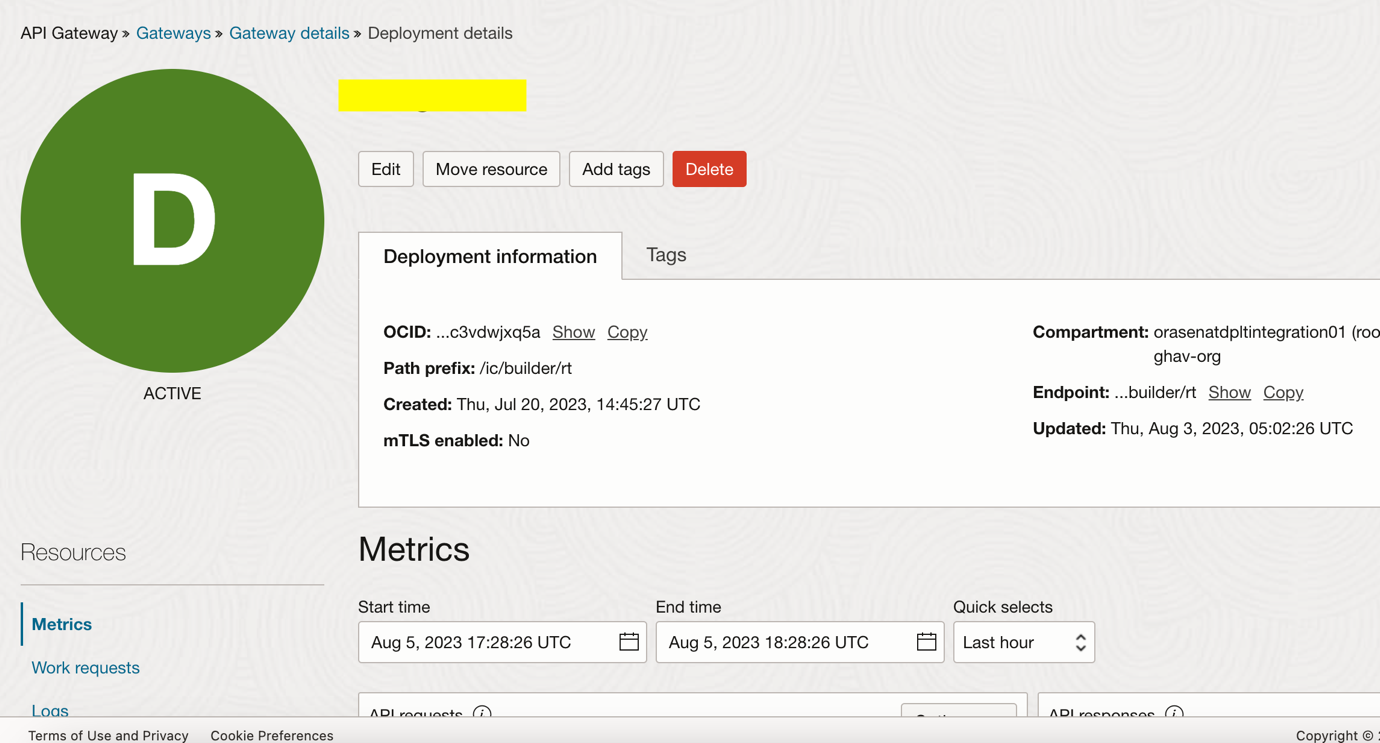

Step 1 : Edit deployment

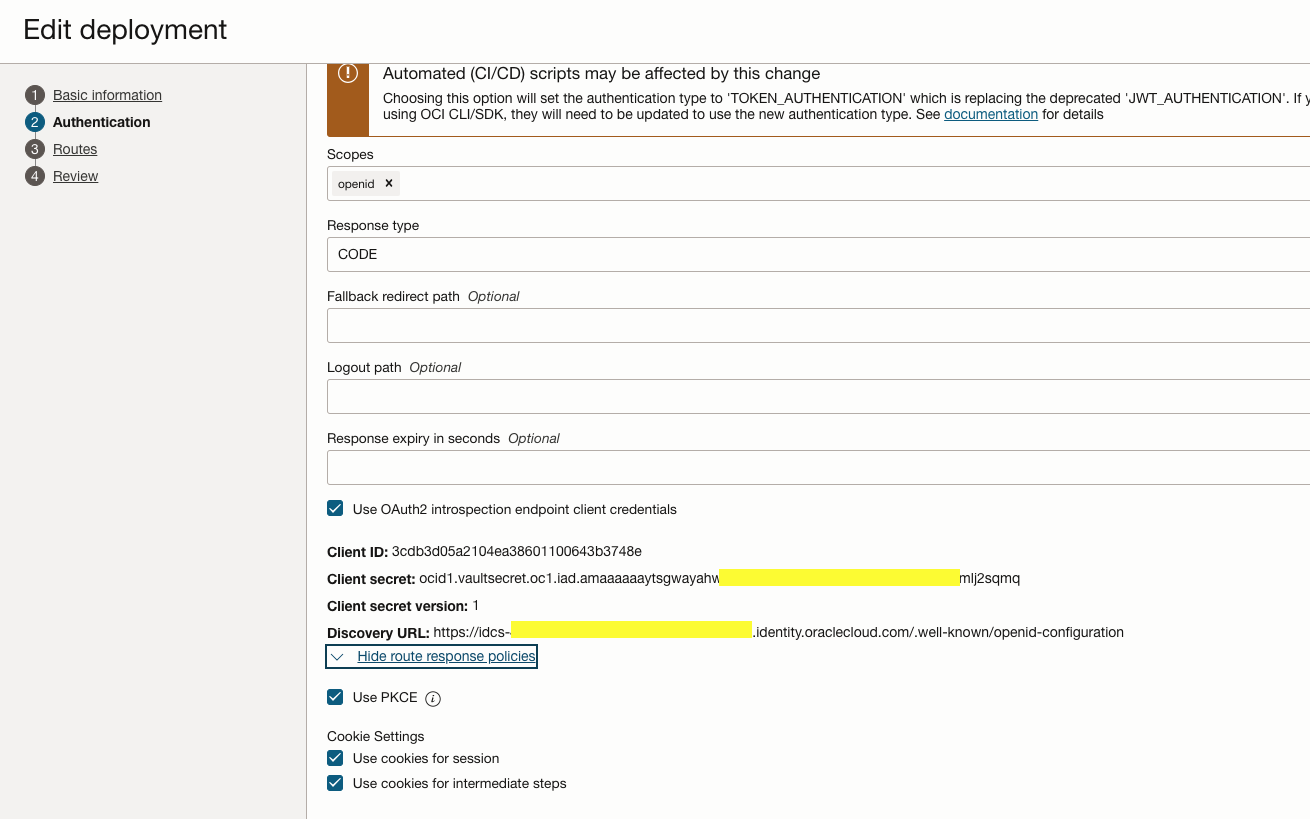

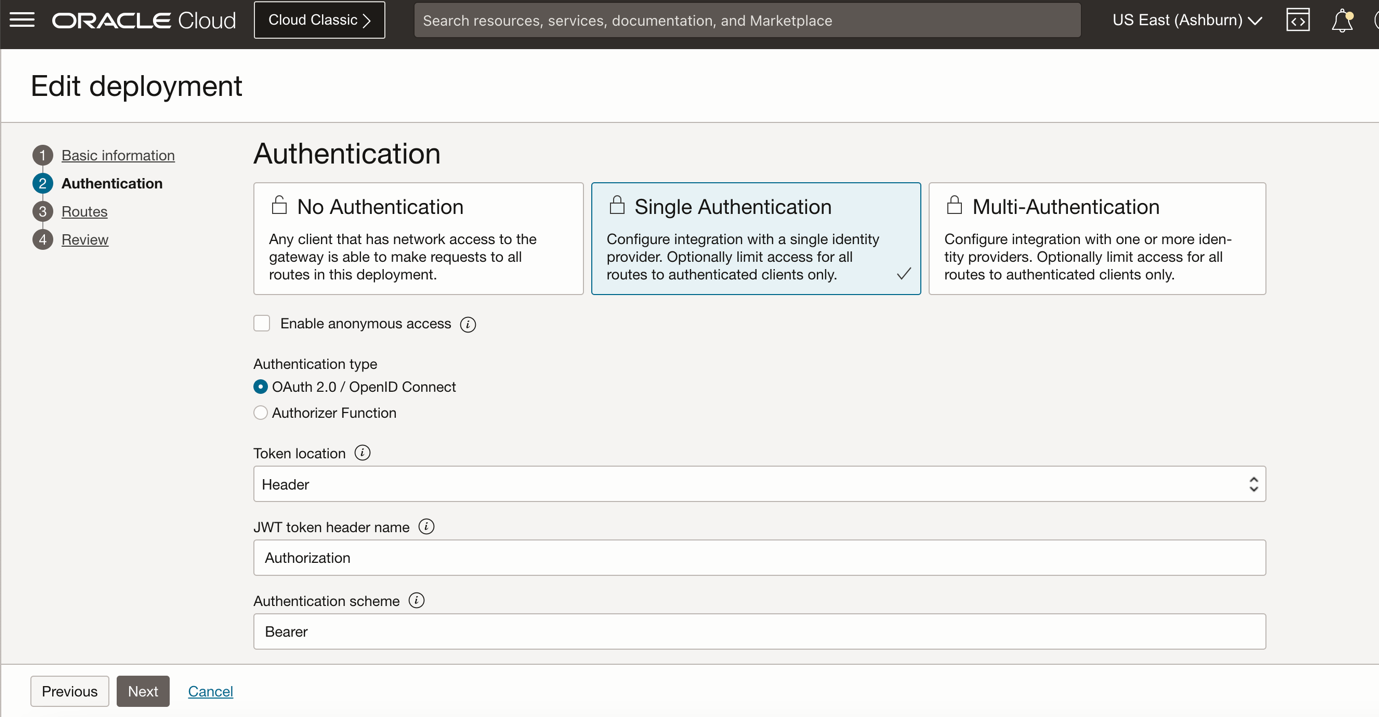

Step 2 : Configure the Authentication section as below.

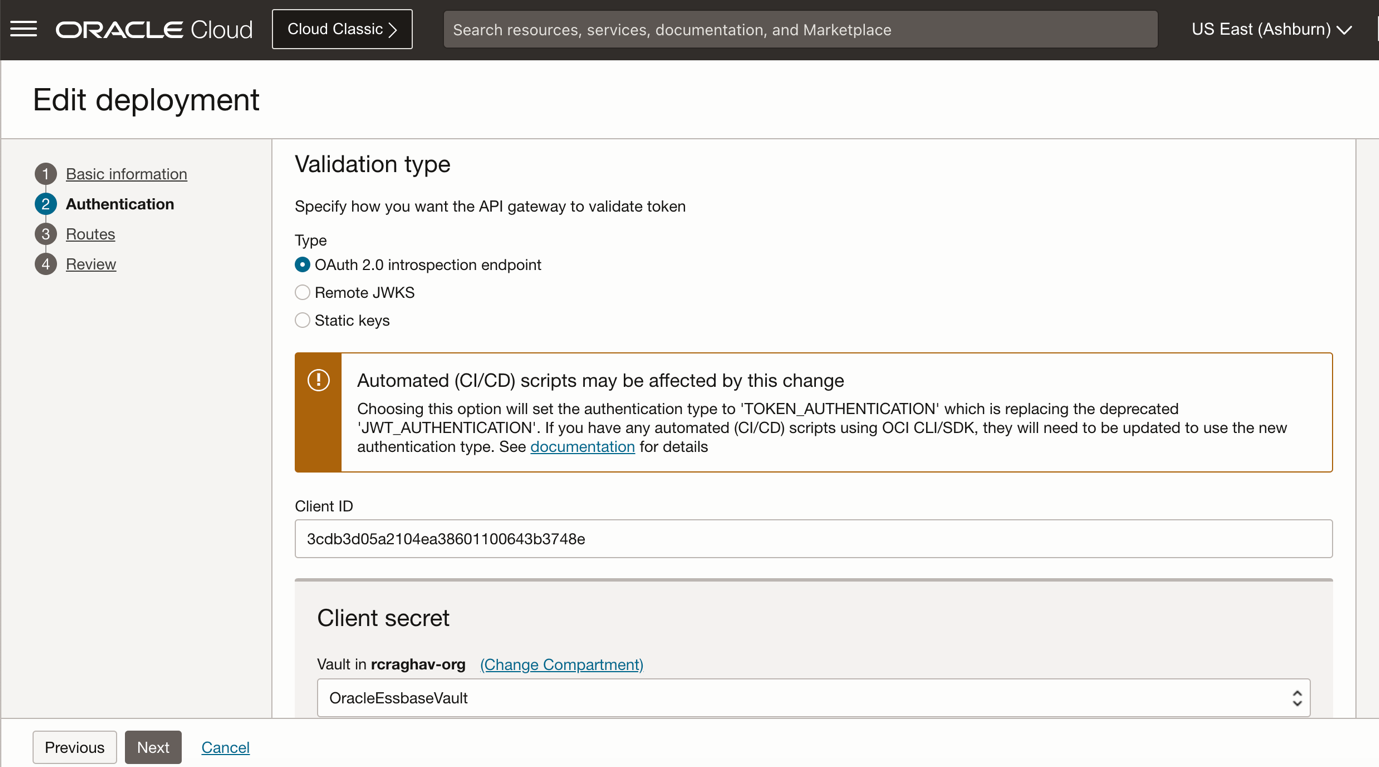

a) Use the Client ID generated from the IDCS configuration from the earlier step.

b) Select the secret that we just created.

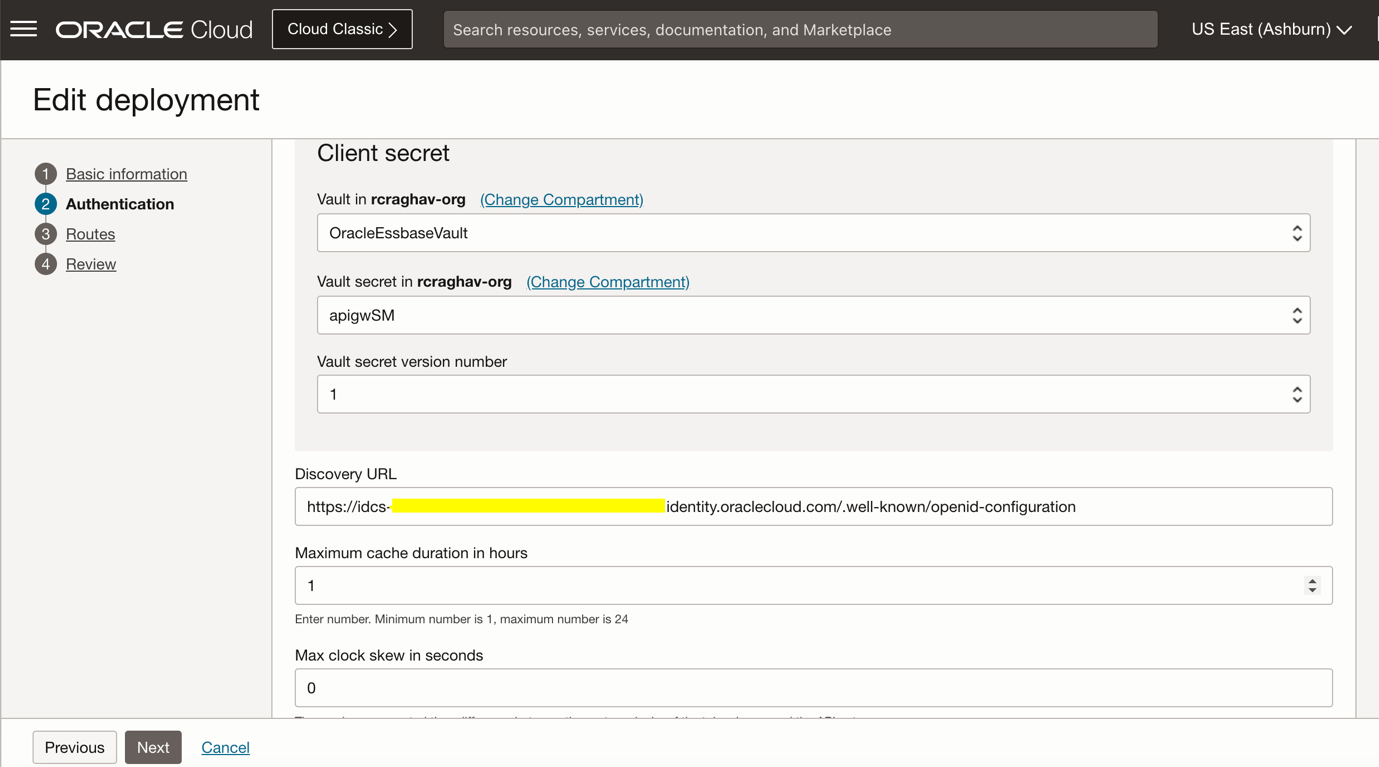

a) Configure the IDCS discovery url from your choice of Idp Provider.

https://idcs-4XXXXddcfabc52af290.identity.oraclecloud.com/.well-known/openid-configuration

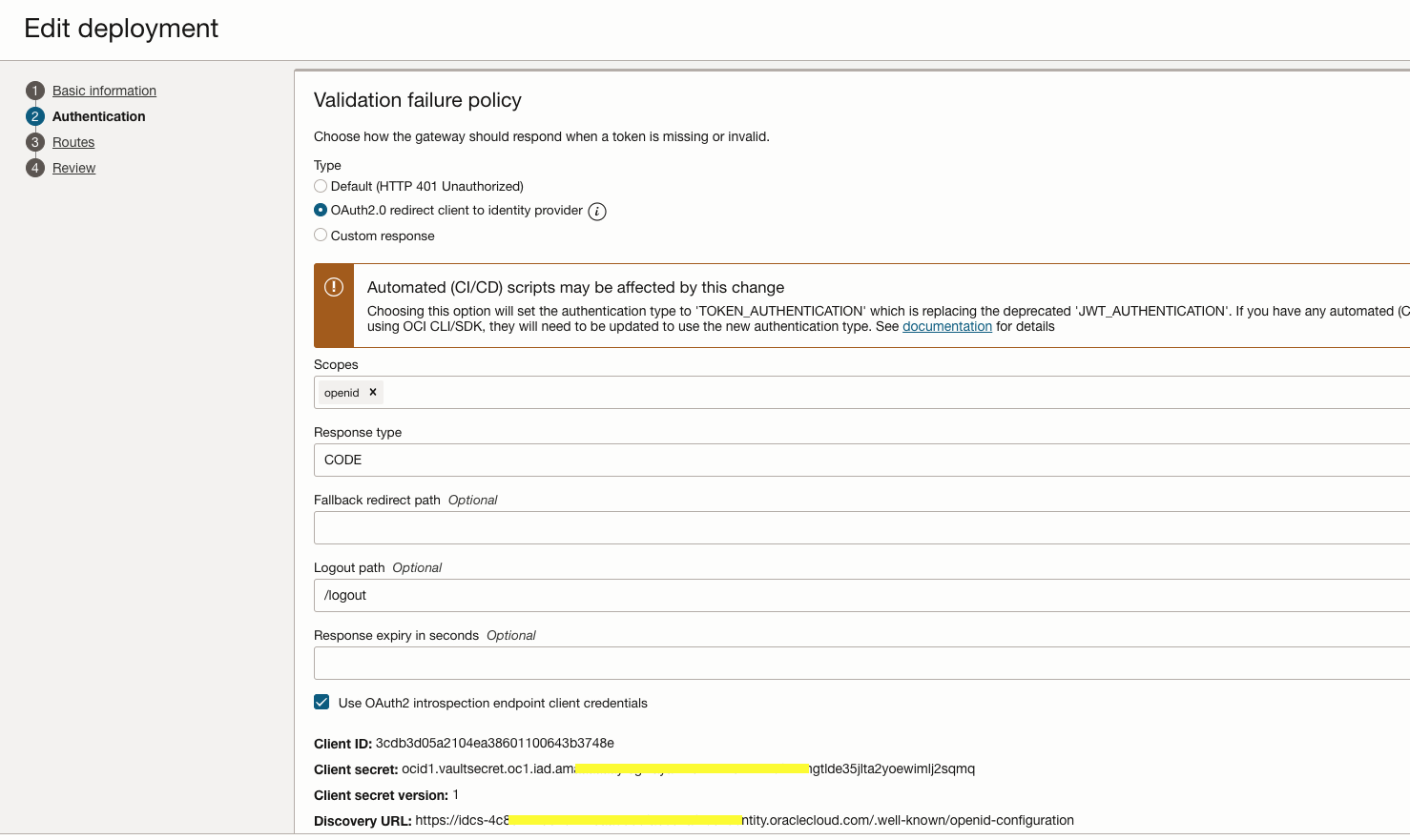

Select the validation failure policy to “OAuth2.0 redirect client to identity provider” and specify the logout path.

Enable to cookie settings and PKCE.

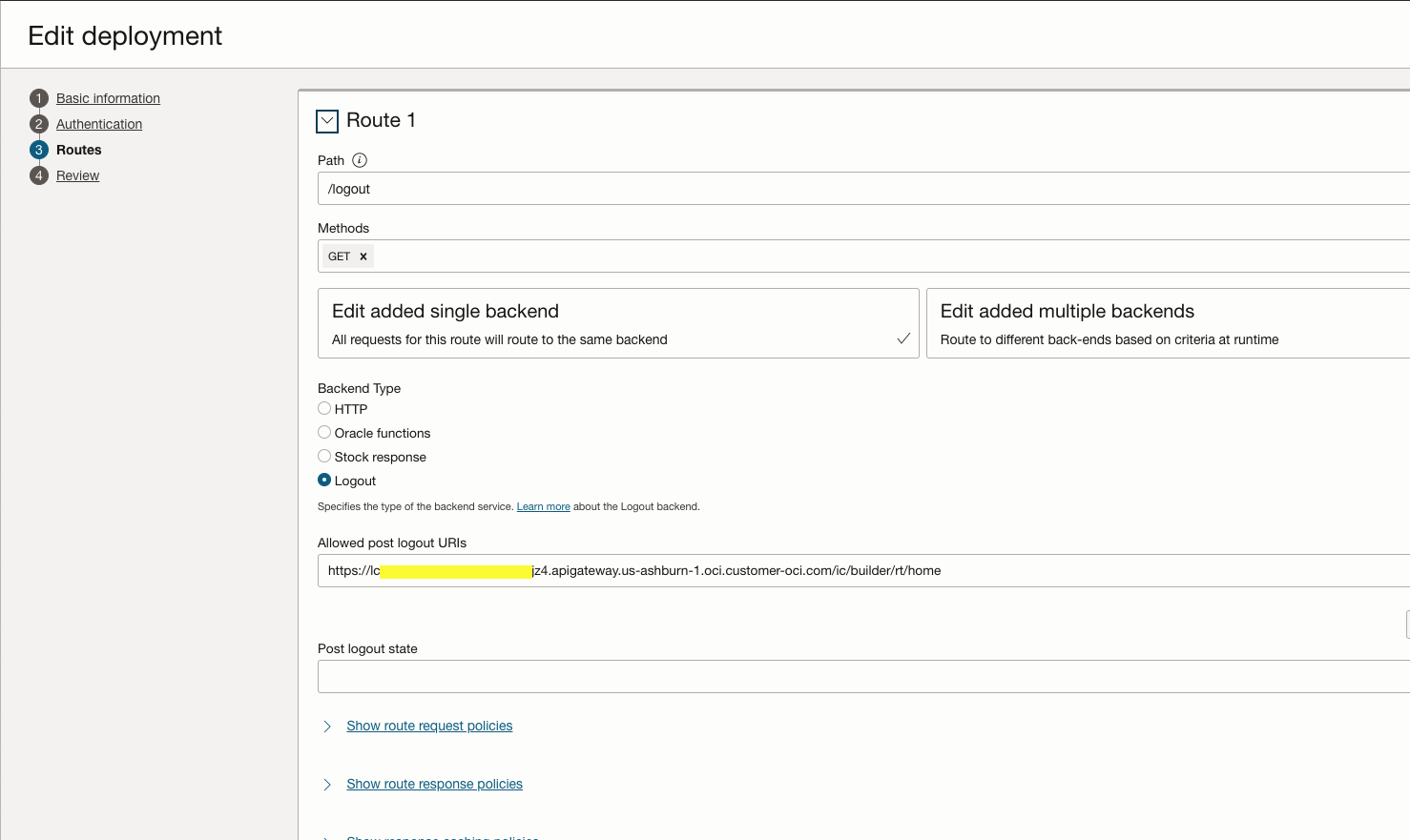

Step 3 : Configure the Route1 as below. This route will be executed for the logout request from the client.

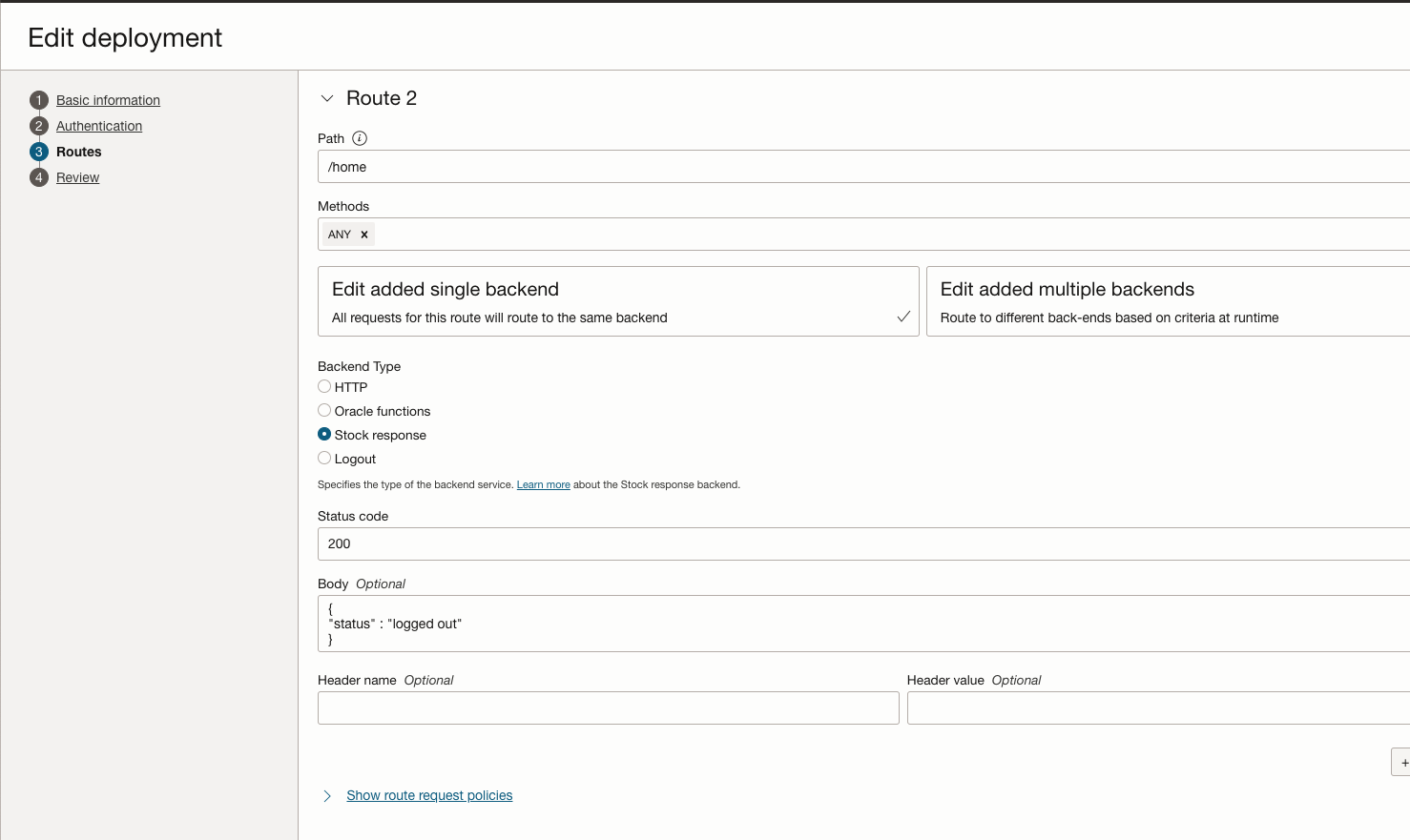

Step 4 : Configure the Route2 as below. This route will be executed on the successful logout of the user session.

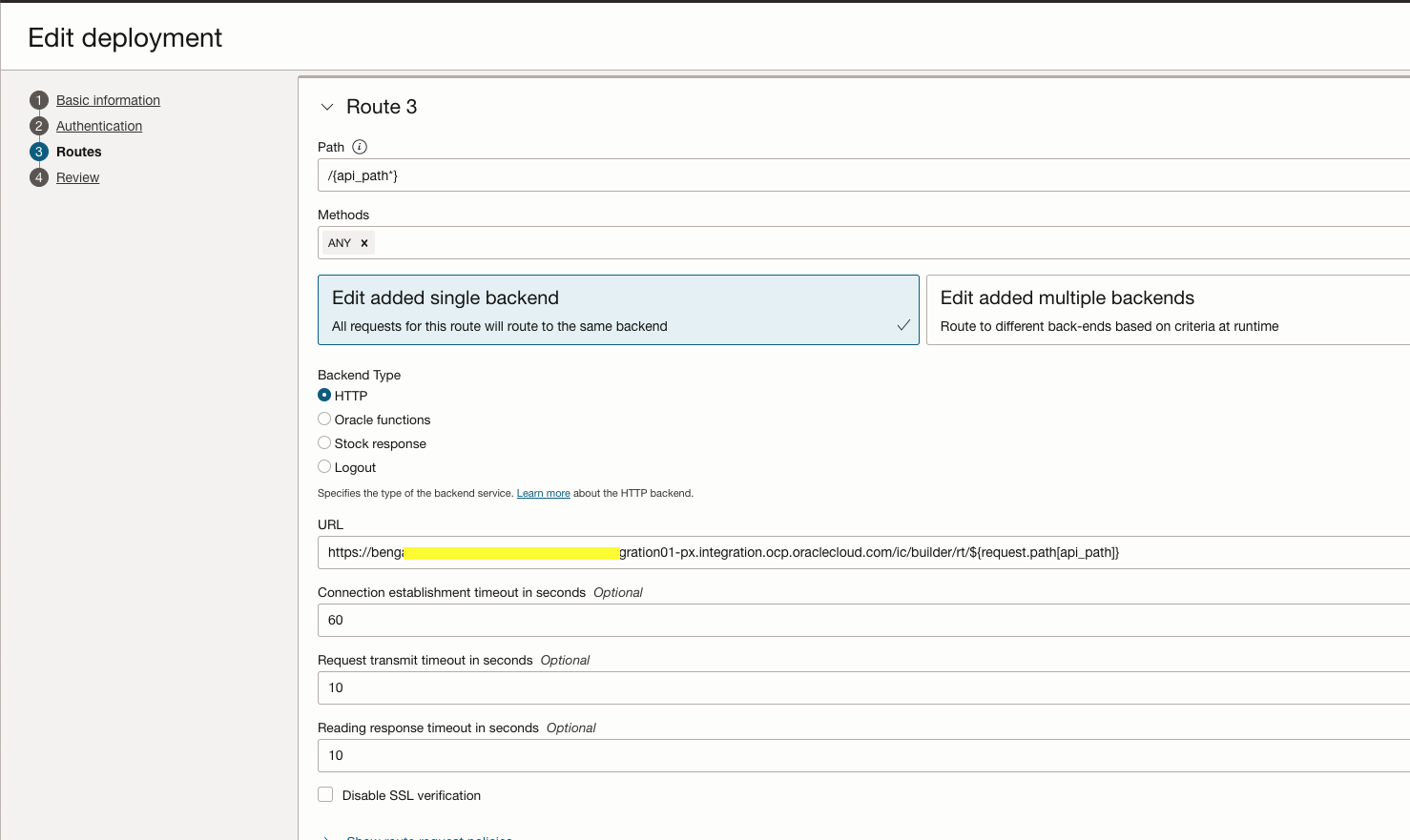

Step 5: Configure the Route3 as below. This route gives the web application access to the user on successful OpenID authentication.

Save the Deployment

Test:

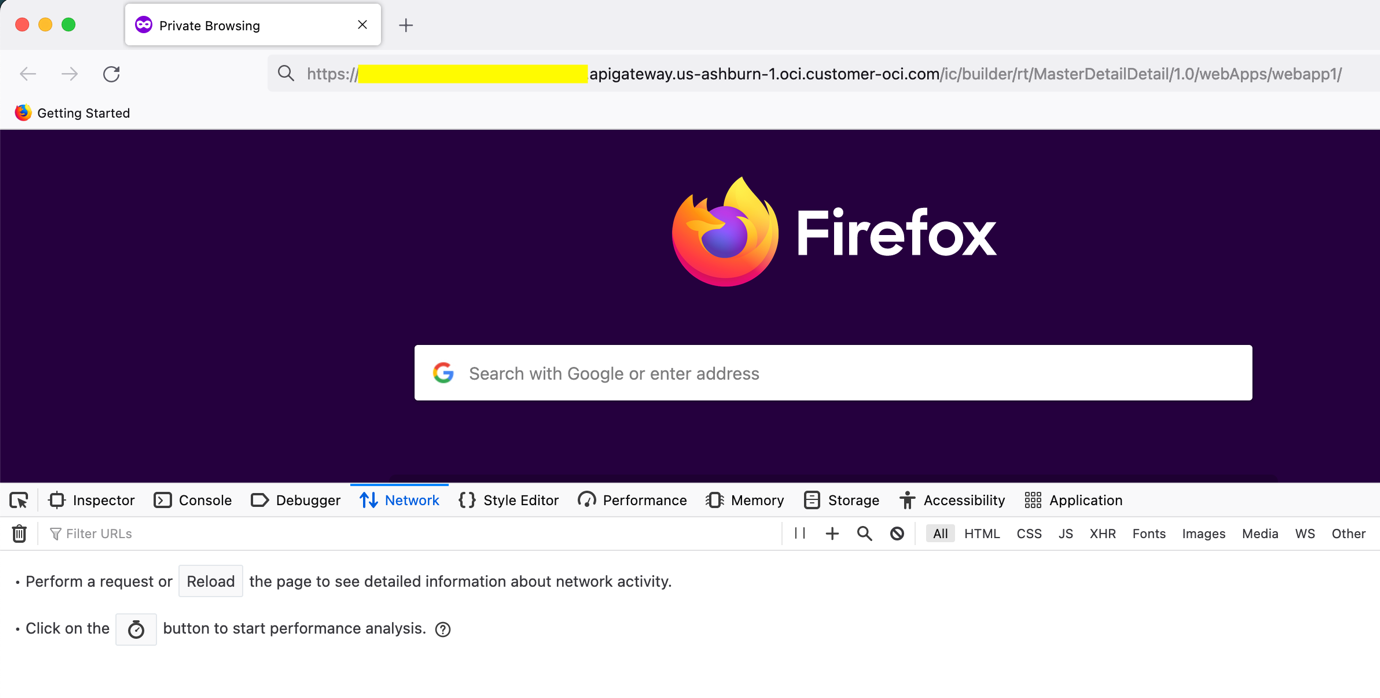

Step 1 : Replace the API gateway hostname in the applications web url and Open from browser.

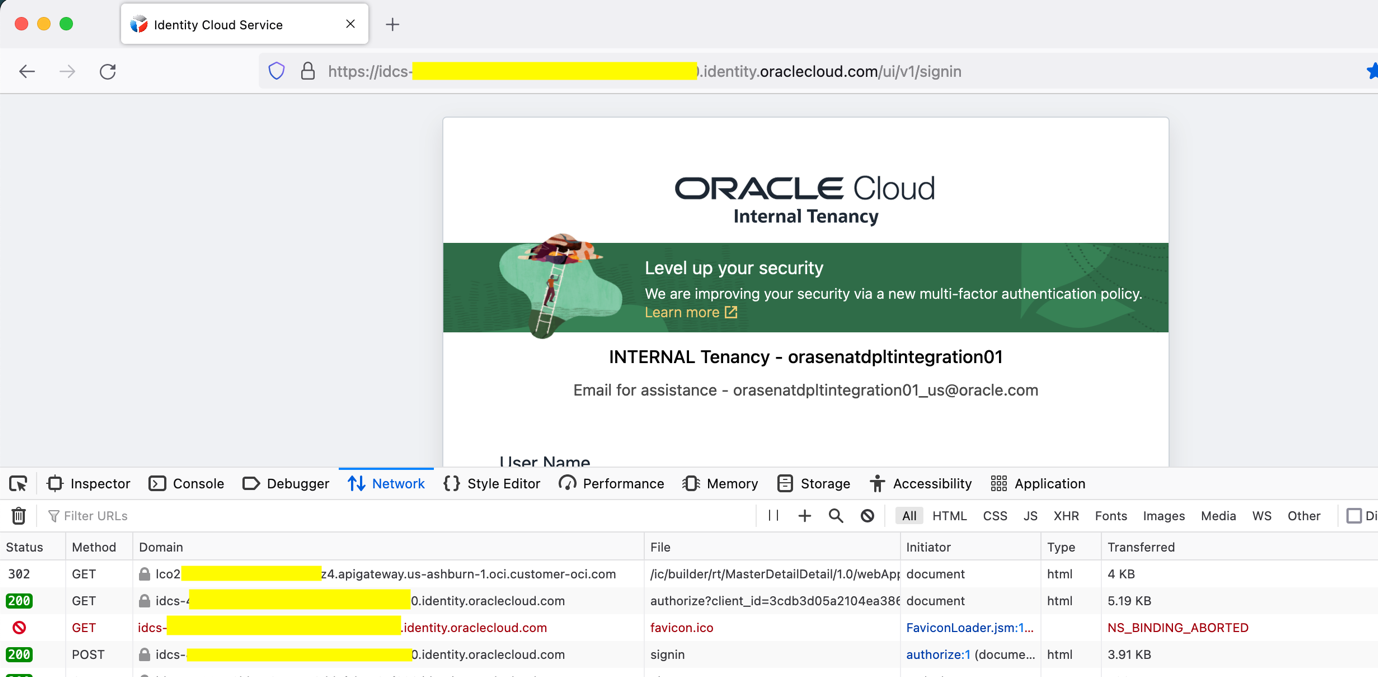

Step 2 : API Gateway redirect the user to IDCS login page as the initial validation fails.

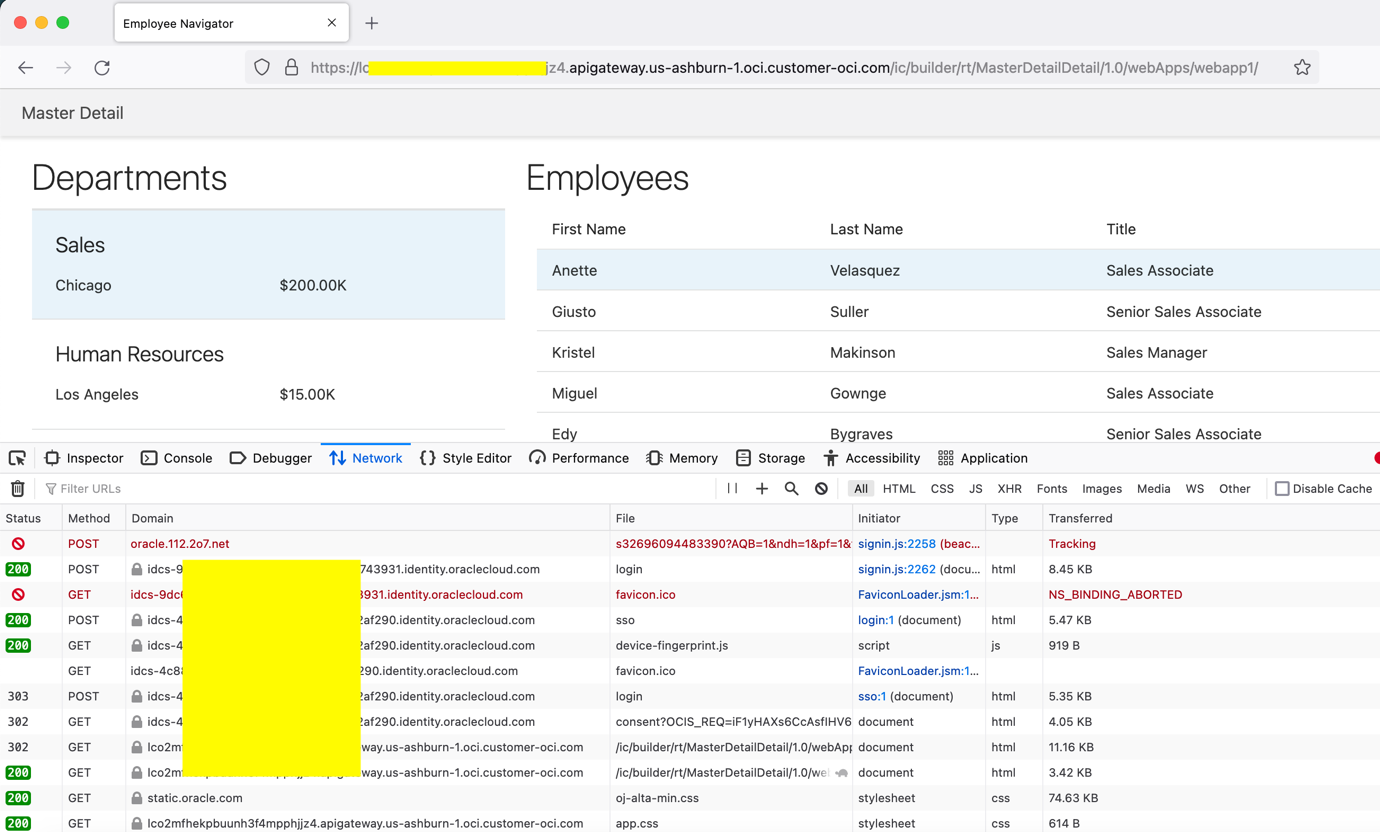

Step 3: User will be redirected to web application home page on successful login.

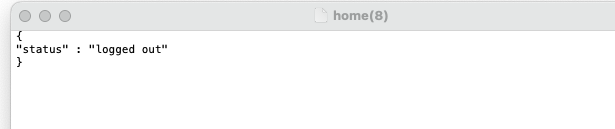

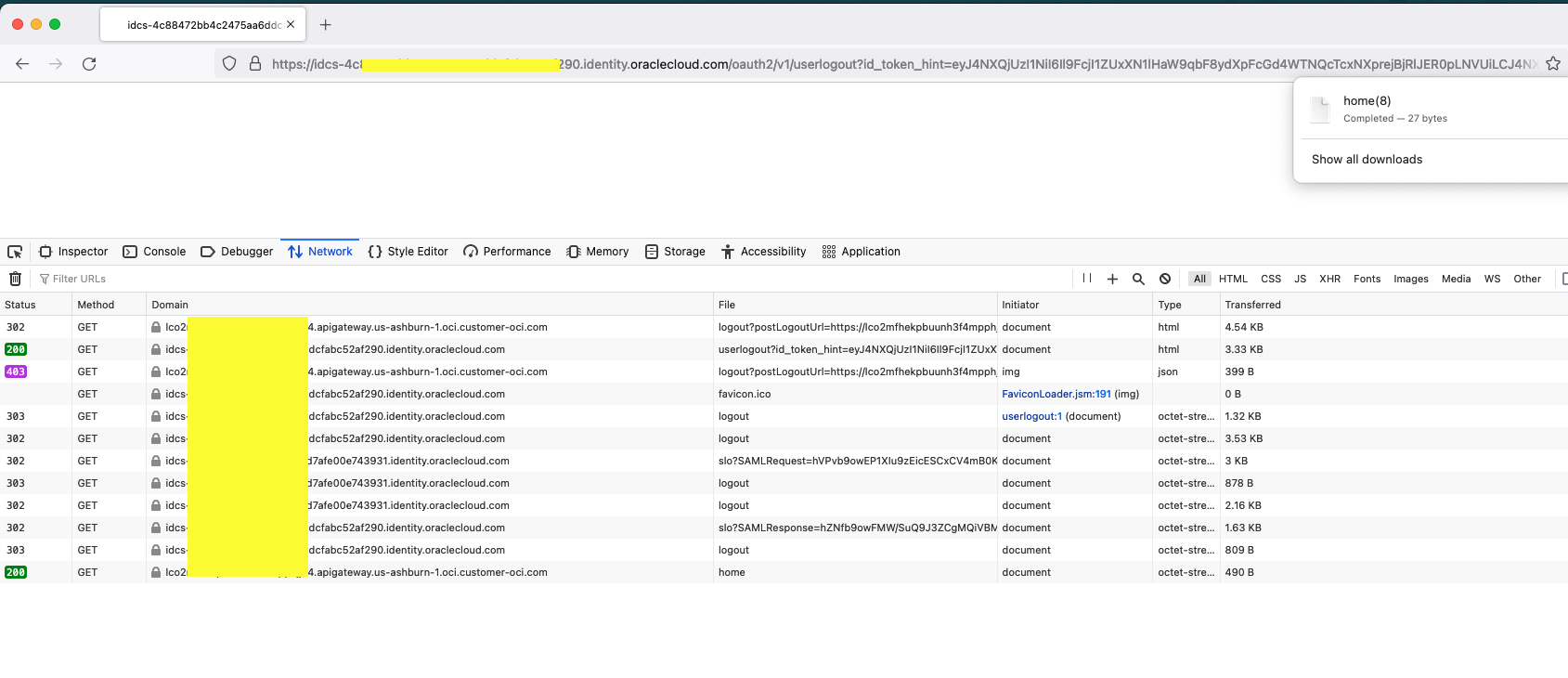

Step 4 : Run the Logout URL (refer IDCS configuration) from the browser . It invalidates the user session , cookies and redirects the page to Post Logout Redirect URL.
