Introduction

Oracle Fusion Applications generate extensive audit logs that capture every significant security and business event across your SaaS environment. These logs include user authentication events, authorization decisions, administrative changes, transaction-level activities, and platform-level operations.

OCI Log Analytics provides the ideal destination for Fusion Applications audit data, offering powerful exploration capabilities, correlation with other log sources, detection rules, and AI-powered analysis through LoganAI. By leveraging the REST API-based log collection method with OCI Management Agents, organizations can establish continuous, automated ingestion of Fusion audit logs without complex middleware or custom integrations.

Figure 1: Fusion Application Audit Logs Key Use Cases
Figure 1: Fusion Application Audit Logs Key Use Cases

Note: If you want to monitor the ESS jobs performance and status, I have published a blog post on the Fusion Enterprise Scheduler Service (ESS) job request logs collection using OCI Management Agent and REST API log collection, you can find it here.

However, accessing and collecting Fusion Application audit logs requires understanding the complex permission model and configuring the appropriate integration mechanisms. This blog post addresses the second part of the two critical aspects:

  1. Part 1: Understanding Required Permissions: What privileges and roles are needed to access Fusion audit log data, check the blog post here.
  2. Part 2: Setting Up Log Ingestion: Step-by-step configuration for Fusion Apps Audit Logs using OCI Management Agent and REST API log collection

Note: This guide focuses on Fusion Applications transaction and business object audit logs accessed via the Fusion Audit REST API. For IAM Identity Domain audit events (sign-in attempts, MFA challenges, session activity), these flow through OCI Audit and can be ingested via Service Connector – see Methods and Ways to Extract Session Information Using OCI Audit for that complementary approach.

Solution Design

Oracle Log Analytics enables continuous collection of Fusion Application audit logs through REST API-based log sources. The Management Agent acts as the collector, periodically invoking Fusion Applications REST APIs to fetch Fusion audit log data and forwarding it to Log Analytics for parsing, indexing, and analysis.

Reference Architecture:

Fusion Application Audit Logs Reference Architecture
Figure 2: Fusion Application Audit Logs Reference Architecture

Prerequisites

Before proceeding with the implementation, ensure you have:

  • An active OCI tenancy with appropriate IAM permissions
  • Access to Oracle Fusion Applications with administrative privileges
  • An OCI Compute instance (Oracle Linux) where the Management Agent will be installed
  • Network connectivity between the Management Agent host and your Fusion Applications instance
  • Understanding of your Fusion Applications POD URL and LOGIN URL (refer to Doc ID 2661308.1 in Oracle My Support)
  • Create a service account in Fusion Applications for the Management Agent to use

Part 2: Step-by-Step Setup for Ingesting Fusion Application Audit Logs

This section provides detailed step-by-step instructions for setting up Fusion Application audit log collection using the Management Agent and REST API log ingestion method.

Note: OCI Log Analytics provides pre-defined log sources and parsers for Fusion Applications audit logs.

  • Fusion Apps: SOA Audit Logs
  • Fusion Apps: Sign In – Sign Out Activity Logs
  • Fusion Apps: OPSS Audit Logs
  • Fusion Apps: ODI Audit Logs
  • Fusion Apps: OBIEE Audit Logs
  • Fusion Apps: MDS Audit Logs
  • Fusion Apps: HCM People Audit Logs
  • Fusion Apps: HCM Payroll Audit Logs

Prerequisites

Before you set up log ingestion for Fusion Application Audit logs, ensure the following prerequisites are met:

  • Review the Fusion Applications REST API documentation to understand how to use the Audit Logs APIs, available endpoints, supported log types, and query mechanisms.
  • Ensure you have valid Fusion Applications credentials (username and password) with sufficient privileges to access the Audit Logs REST API. Privileges are typically assigned via appropriate Fusion Applications roles.
  • Identify and note the required endpoints for your Fusion application instance:
    • login_url: The login URL for Fusion Applications (e.g., https://<fusion-pod>.fa.<region>.oraclecloud.com)
    • pod_url: The base URL for your Fusion Applications pod (e.g., https://<fusion-pod>.fa.<region>.oraclecloud.com)
    • proxy_url (Optional): If your environment requires access through a proxy, provide the proxy server URL (http(s)://<proxy-host>:<proxy-port>).
    • For more information on constructing and locating Fusion Application instance URLs, refer to Oracle My Support Doc ID 2661308.1.
    Note: Sign-in Sign-out REST API is deprecated and no longer available after Fusion Identity Upgrade, starting Oracle Fusion 25B or higher. You will have to use the OCI Audit feature as per KB181606
  • Ensure Fusion Applications REST API access is enabled for your environment:
    • Confirm that users or application clients have the necessary REST API security privileges and duty roles to access audit logs endpoints.
    • This includes role assignments such as FND_VIEW_AUDIT_HISTORY_PRIV and other relevant product/duty roles depending on the audit log type.
    • REST API access is typically controlled by user provisioning or within the Fusion Applications Security Console.
    • See Fusion Apps REST API Security Overview for details on configuring user access.
  • (Optional) If outbound network traffic from the Management Agent host to Fusion Applications must traverse a proxy, ensure the proxy URL and credentials are available. Verify network routing allows connections from your OCI environment to the Fusion Applications REST endpoints.

Step 1: Install and Configure Management Agent

  • Provision OCI Compute Instance:
    • Provision an OCI Compute instance with Oracle Linux image
    • Ensure the instance has HTTP/HTTPS access to your Fusion Applications POD URL
    • Note the instance name (e.g., mgmtagent-vm)
  • Enable Management Agent Plugin:
    • Navigate to OCI Console > Compute > Instances
    • Select your compute instance
    • Go to the Oracle Cloud Agent tab
    • Enable the Management Agent plugin
    • Ensure the Logging Analytics plugin is deployed during installation
    • Reference: Set Up Continuous Log Collection From Your Hosts
  • Fusion Applications Entity Creation:
    • An entity of type “Host (Linux)” will be automatically created in Log Analytics
    • Navigate to OCI Console > Observability & Management > Log Analytics > Administration > Entities
    • Verify the entity exists in the same compartment as your compute instance
    • Note the entity name (should match your instance name, e.g., mgmtagent-vm)
    • Create a new entity with the following details:
      • Name: fusion-apps-mgmtagent-vm
      • Entity Type: Oracle Fusion Applications
      • Management Agent Compartment: your_mgmtagent_compartment_name
      • Management Agent: Agent(mgmtagent-vm)
      • Properties:
        • Property Name: login_url
        • Property Value: The base URL of your Fusion Applications instance (e.g., https://<yourpod>.login.fa.us1.oraclecloud.com)
        • Property Name: pod_url
        • Property Value: The base URL of your Fusion Applications instance (e.g., https://<yourpod>.fa.us1.oraclecloud.com)
        • Property Name: proxy_url
        • Property Value: (Optional) The URL that sends a request to your proxy server
      • Agent Collection Properties:
        • Source Type: REST API
        • Historical Data: 30D (or your desired historical data fetching period)
        • Enable Filter Duplicate Records: true
        • Customized Schedule: FREQ=MINUTELY;INTERVAL=5 (5 mins or your desired schedule interval)
      • Click Create
        Figure 3: Fusion Applications Entity Creation

Step 2: Configure Management Agent Credentials

  • SSH to the Compute Instance:
    ssh opc@<your-mgmtagent-vm-compute-instance-ip>
  • Switch to Root User (if needed):
    sudo su -
  • Navigate to Management Agent Bin Directory:
    • For Management Agents running via Oracle Cloud Agent plugin:
      cd /var/lib/oracle-cloud-agent/plugins/oci-managementagent/polaris/agent_inst/bin
    • For manually installed Management Agents:
      cd /opt/oracle/mgmt_agent/agent_inst/bin
  • Create Credential JSON File: Navigate to the appropriate /bin directory for your setup to create the credential JSON file. The following example shows the values provided in the fapps.json file:
    cat > /tmp/FA-CREDS.json << EOF
    {
    "source": "lacollector.la_rest_api",
    "name": "FA-CREDS",
    "type": "HTTPSBasicAuthCreds",
    "description": "These are HTTPS (BasicAuth) credentials.",
    "properties": [
    {
    "name": "HTTPSUserName",
    "value": "USER"
    },
    {
    "name": "HTTPSPassword",
    "value": "PASS"
    }
    ]
    }
    EOF Replace your_service_account_username and your_service_account_password with your Fusion Applications service account credentials.
  • Insert Credentials into Agent Credential Store:
    cat fapps.json | ./credential_mgmt.sh -s logan -o upsertCredentials
  • Verify Credential Storage:
    ./credential_mgmt.sh -o listCredentials -s logan | grep FA-CREDS
    Reference: Management Agent Source Credentials

Step 3: Associate Source with Entity and Start Collection

  • Validate the Log Source Endpoint Configuration:
    • Navigate to OCI Console > Observability & Management > Log Analytics > Administration > Sources
    • Click on the log source (e.g., Fusion Apps: Sign In - Sign Out Activity Logs)
    • Click Customize
    • Click the endpoint … > View to inspect the endpoint configuration
  • Navigate to Entity Details:
    • Go to OCI Console > Observability & Management > Log Analytics > Administration > Entities
    • Click on your entity (e.g., fusion-apps-mgmtagent-vm)
  • Add Data Source:
    • Click Add Data
    • Select the entity (e.g., fusion-apps-mgmtagent-vm)
    • Click Next
  • Select Log Sources:
    • Search for Fusion Apps: to filter Fusion Applications sources
    • Select the log sources you want to collect (e.g., Fusion Apps: Sign In - Sign Out Activity Logs, Fusion Apps: OPSS Audit Logs, Fusion Apps: ESS Audit Logs)

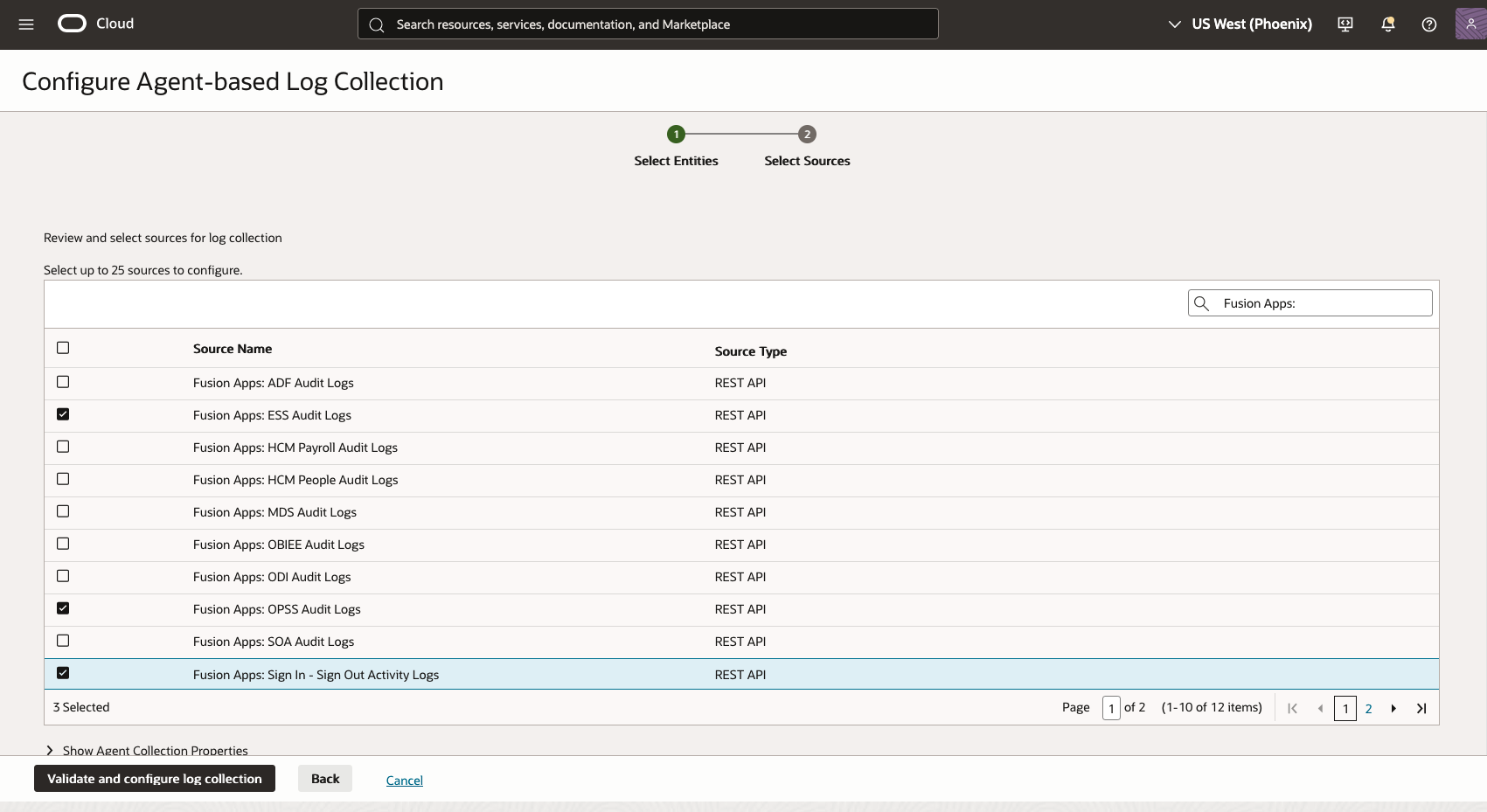

    • Figure 4: Log Analytics Fusion Apps Audit Select Log Sources
    • Figure 4: Log Analytics Fusion Apps Audit Select Log Sources
    • Verify the Agent Collection Properties are correctly configured
    • Select the correct log group to store log data for new association
    • Click Validate and configure log collection

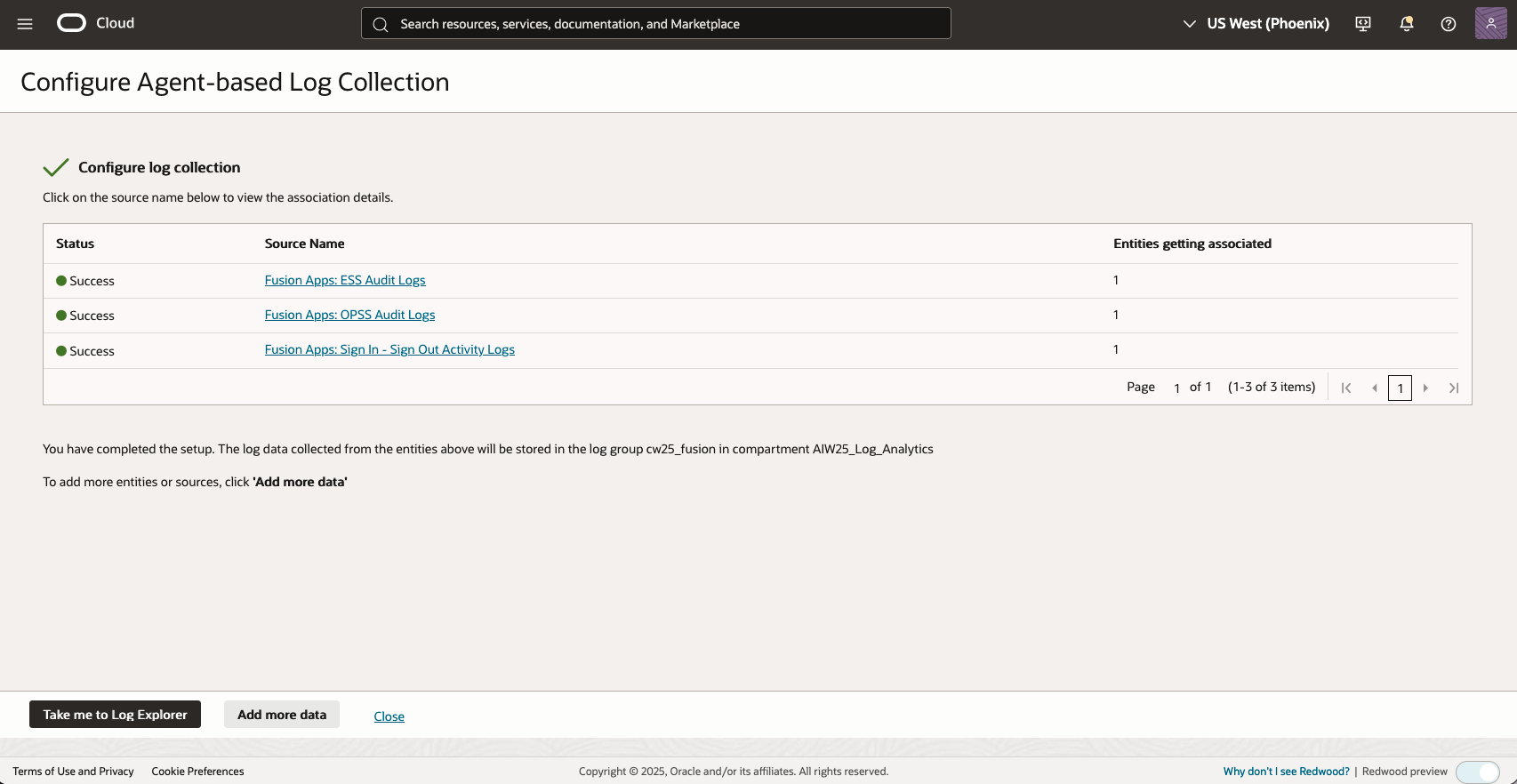

    • Figure 5: Log Analytics Fusion Apps Audit Validate and Configure Log Collection
    • Figure 5: Log Analytics Fusion Apps Audit Validate and Configure Log Collection
  • Start Collection:
    • Once configured, click Take me to Log Explorer to verify log ingestion

Step 4: Verify Log Ingestion

  • Navigate to Log Explorer:
    • Go to OCI Console > Observability & Management > Log Analytics > Log Explorer
    • Or use the link provided after configuration
  • Query Audit Logs:
    • In the search bar, enter a query to find Fusion Applications Sign-in/Sign-out activity logs:
      'Log Source' in ('Fusion Apps: ESS Audit Logs', 'Oracle Fusion Apps: OPSS Audit Logs', 'Fusion Apps: OPSS Audit Logs', 'Fusion Apps: MDS Audit Logs') | stats count as logrecords by 'Log Source' | sort -logrecords
    • To verify sign-in/sign-out activity (if enabled):
      'Log Source' = 'Fusion Apps: Sign In - Sign Out Activity Logs' | stats count as logrecords by 'Log Source' | sort -logrecords
    • Adjust the time range to see recent logs
    • Click Run Query

Step 5: Import Dashboards

  • Locate Dashboards on GitHub:
  • Import the Dashboard in OCI Log Analytics:
    1. Go to OCI Console → Observability & Management → Log Analytics → Dashboards.
    2. Click on Import dashboards.
    3. Browse to the downloaded dashboard .json file and select it.

Conclusion

This blog post provided comprehensive guidance on collecting Fusion Application audit logs into OCI Log Analytics using REST API log ingestion via the Management Agent. The two-part approach covered:

  • Security Monitoring: Detect suspicious activities, unauthorized access attempts, and potential security threats
  • Compliance Reporting: Generate audit reports for regulatory requirements and internal audits
  • Operational Insights: Understand user behavior patterns and system usage
  • Threat Detection: Identify anomalies and potential security incidents in real-time
