CIS OCI Landing Zone V1 requires a user with broad permissions at the tenancy level (typically a member of the Administrators groups) to be provisioned. These tenancy level permissions include the ability to manage IAM resources at the Root compartment level, like managing compartments, policies and groups. In some scenarios these permissions cannot be given to ordinary users, as it can give them a type of power they must not have. But it turns out that some ordinary user may need to provision the Landing Zone, which is especially prevalent in proof of concepts type of scenarios.
Released on July/2021, CIS OCI Landing Zone V2 adds the ability for a user without those broad permissions to also provision the Landing Zone.
This post goes through the available options for provisioning the Landing Zone in either way.
Throughout this post, we use the terms “admin” to refer to a user with the required IAM permissions at the tenancy level and “non-admin” to refer to a user without those IAM permissions.
V2 introduces options for deploying as a non-admin in such a way that V1’s provisioning experience is completely preserved when deploying as an admin.
These options are:
This is the default use case in V2.
Deploying the Landing Zone with the module’s default variables creates the following:
V2 adds options to change this behavior, by allowing admins to:
The variables settings for implementing this behavior are:
Deploying as a non-admin uses the same variables described above. However, two fundamental requirements MUST be satisfied: some IAM resources must be available in the Root compartment and an enclosing compartment must exist, as by design, provisioning the Landing Zone as a non-admin cannot be done directly in the Root compartment. While these requirements can be handled by the tenancy admin on his/her own, V2 provides a helper Terraform root module, the pre-config module, that should be executed previously. Refer to Tenancy Pre Configuration For Deploying CIS OCI Landing Zone as a non-Administrator for the details about executing the pre-config module.
With that basic requirement satisfied, a non-admin can then deploy the Landing Zone by setting up the above variables as:
Landing Zone can be deployed with Terraform CLI or with OCI Resource Manager. The general instructions are available at https://github.com/oracle-quickstart/oci-cis-landingzone-quickstart/blob/main/terraform.md. Next we show how to deploy the Landing Zone as non-admin using OCI Resource Manager.
Deploying with OCI Resource Manager is easier and is the recommended option for users that are not familiar with Terraform. Furthermore, OCI Resource Manager provides remote state management with locking, which is ideal if the Landing Zone is to be maintained by a team.

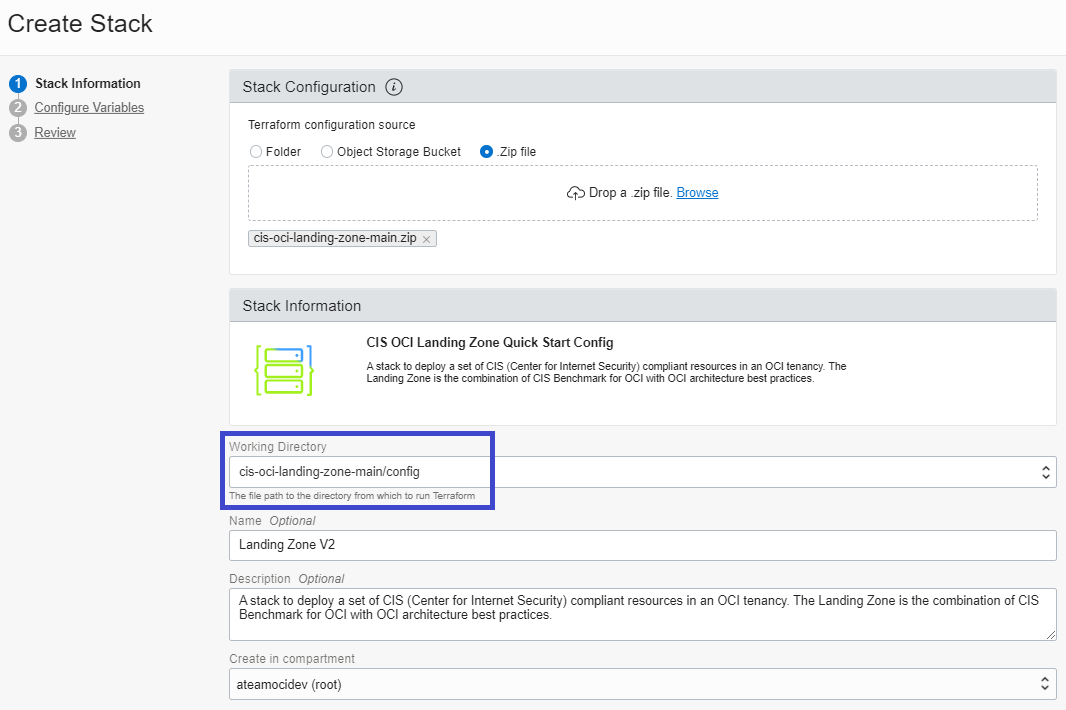

When creating the Resource Manager Stack, make sure to select the config folder in the Working Directory dropdown box:

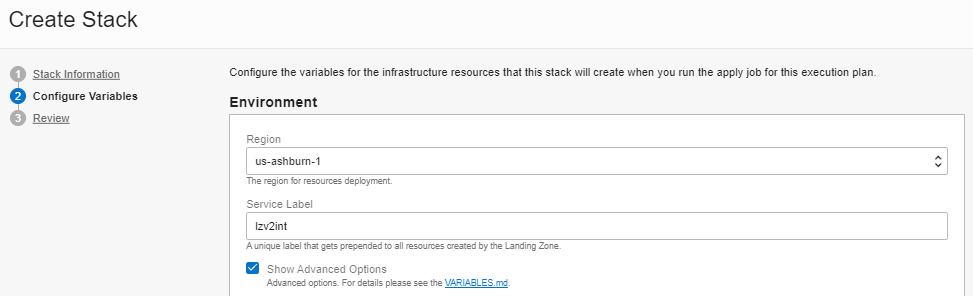

In the Configure Variables screen, pick a Region and enter a Service Label in the Environment area. The Service Label is a random string of your choice. The Landing Zone uses it as a prefix to all resource names. Make sure to check the Show Advanced Options for setting the environment options.

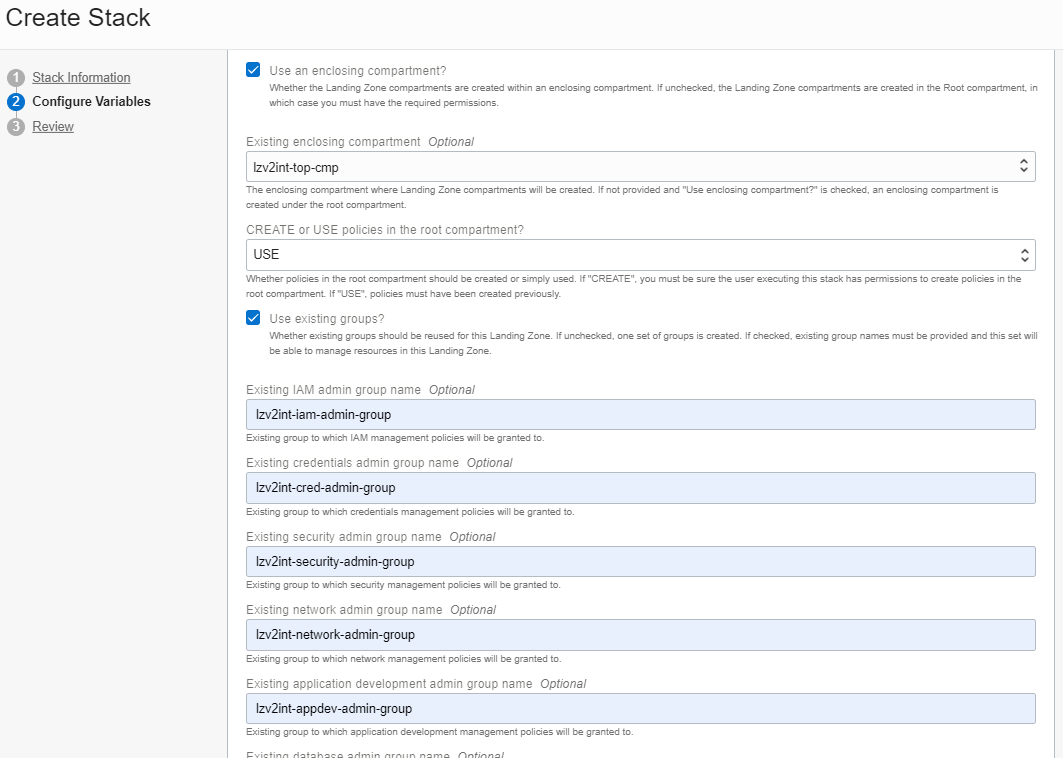

The environment options are displayed. Check Use an enclosing compartment? and select the Existing enclosing compartment in the tree-like structure in that dropdown box.
Select USE in CREATE or USE policies in the root compartment?
Check Use existing groups? box and provide the names of those existing groups in the fields that appear. You must provide all group names.

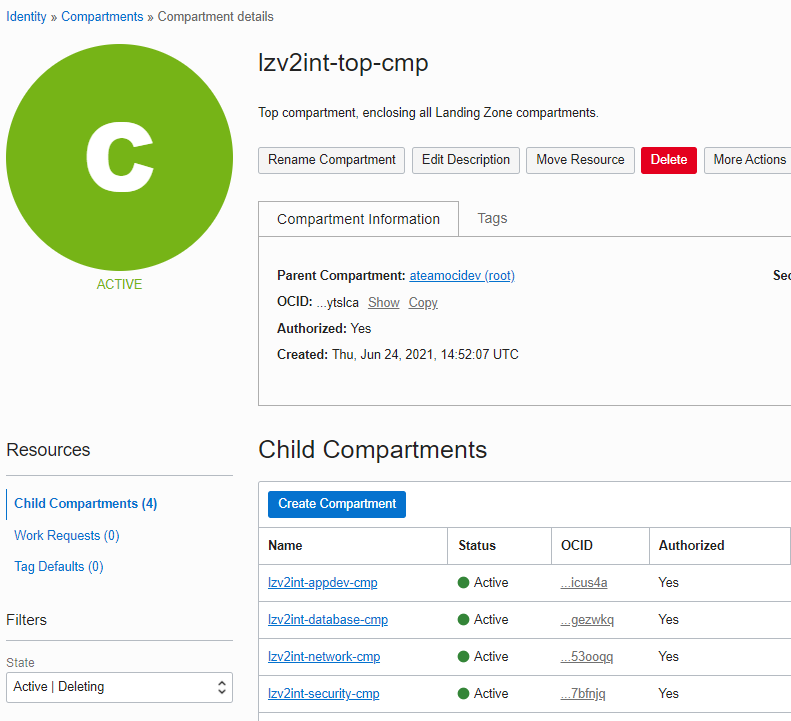

Once the Stack is applied, observe the compartment structure in the picture below. Four child compartments, namely lzv2int-appdev-cmp, lzv2int-database-cmp, lzv2int-network-cmp, lzv2int-security-cmp , are created under lzv2int-top-cmp, our Existing enclosing compartment selected above. It happens to exist under the tenancy Root compartment, as we can see in Parent Compartment.
Landing Zone resources are deployed in those four child compartments and policies are automatically applied on them, segregating duties for Landing Zone groups in accordance to the fundamental security principle of least privilege.

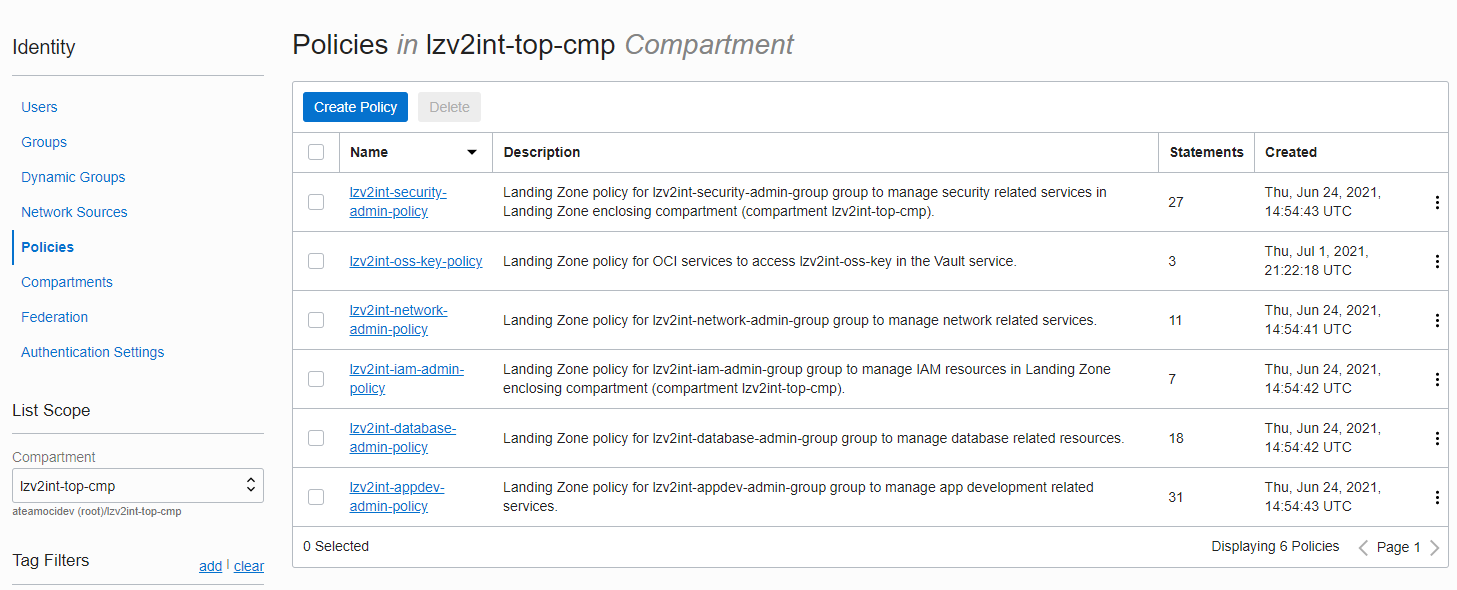

Look at the policies created in the enclosing compartment (lzv2int-top-cmp):
Now that you understand the available user deployment modes for the Landing Zone, look at the documentation for deploying the various services enabled by the Landing Zone.
