Introduction

OCI Audit is an OCI service that automatically records calls to all supported OCI APIs as events. OCI Audit offers the following benefits:

All audit data with multiple identity domains is available in one central place
Provides a single source of truth for all actions in your cloud
Tracking who did what, when, and from where
Data can be pushed to external systems such as SIEMs.
OCI Audit stores event data for a year

Please read blog – Methods and ways to extract OCI Events using OCI Audit and Integrate into external systems, to understand various options available & implementation details along with prerequisites, same would be used to extract Session Information – in our use case we will consider – Fusion Cloud Application hosted inside OCI.

In Current state for Fusion cloud applications, to get Fusion Session Login Information below API is used – Fusion Security: Using Sign In – Sign Out Audit REST API (Doc ID 2661308.1)

This provides login IP Address, type, login status, device (browser as user agent) etc…

However, post ongoing identity upgrade into OCI IAM, this method would no longer work.

Oracle Cloud Infrastructure Identity and Access Management Audit Events API’s which was earlier used for IAM identity domains will be deprecated

Therefore now we have standardization of Audit API’s for all OCI resources, going forward you will need to use the OCI Audit APIs instead.

This blog explores methods to extract session-related events (e.g., logins) for any application hosted on OCI, in this case – Fusion Cloud Applications —and integrate the data into external systems like SIEM for enhanced visibility and security.

Details

Below are choices of how Session information can be extracted for given compartment ID, in our use case we will consider compartment where Fusion Application is hosted, we will discuss all this in detail.

Examples of events associated with IAM Activities are listed here, We will use them to track Fusion Application Session information which is residing in Fusion Application IAM domain.

OCI Events which are interest to us are grouped under – IdentitySignOn events

Event Name	Description
IdentitySignOn.VerifyMfaToken	Multi-Factor Authentication (MFA) token verified successfully for a user session.
IdentitySignOn.TokenRequest	User or application requested an access token to authenticate with OCI services.
IdentitySignOn.SupportAccountSamlRequest	SAML request initiated to access a support account (cross-account or delegated access).
IdentitySignOn.ModifySSOSession	A user’s session was modified, such as extending duration or updating session state.
IdentitySignOn.InteractiveLogin	A user initiated an interactive login, typically via UI (console, federated login, etc.).
IdentitySignOn.FederatedInteractiveloginattempt	A user attempted to log in via a federated identity provider (e.g., Okta, Azure AD).
IdentitySignOn.FactorMfa	A specific MFA factor (like OTP, push notification) was triggered or used.
IdentitySignOn.DeleteSession	User session was explicitly terminated or logged out.
IdentitySignOn.ChangePassword	User changed their password through self-service or admin action.
IdentitySignOn.AuthcodeRequest	Authorization code request initiated during OAuth2 flow (before token exchange).
IdentitySignOn.AccessApp	User accessed an OCI-integrated application or service via identity federation.

Listing few Important attributes that can be extracted out of IdentitySignOn events JSON response

data.additionalDetails

Event Name	Description
actorDisplayName	rats_monitor
clientIp	X.X.X.X
eventid	sso.session.delete.success
ssoIdentityProvider	UserNamePassword
compartmentId	ocid1.tenancy.oc1
compartmentName	XXX
eventName	DeleteSession
message	DeleteSession succeeded
response. Status	200
responseTime	2025-08-01T09:57:57.699Z
type	com.oraclecloud.IdentitySignOn.DeleteSession

data.identity

Attributes Name	Example
ipAddress	X.X.X.X
principalId	ocid1.user.oc1..
principalName	casey.brown
tenantId	ocid1.tenancy.oc1…
userAgent	Mozilla/5.0 (Windows NT 10.0; Win64; x64)

We will use below options for extracting and processing Fusion Session Information.

OCI CLI/SDK
1. OCI Logging search API (SearchLogsDetails)
2. OCI Audit API (list_call_get_all_results)
Service Connector
1. Stream logs to Oracle Streaming
2. Export logs to Object Storage
3. Topics for Notifying
OCI Logging UI
1. Saved Search
2. OCI Dashboard
OCI REST API
1. OCI Logging search (/20190909/search)
2. OCI Audit API (/ 20190901/auditEvents)

1. OCI CLI/SDK

Connecting to OCI REST APIs using an SDK involves leveraging language-specific libraries provided by Oracle to interact with OCI services programmatically. This approach simplifies API calls by handling authentication, request signing, and response parsing.

OCI CLI commands wrapped inside scripts or Python code that run as serverless functions (OCI Functions). These functions can be triggered via API Gateway endpoints, enabling external systems to call them easily over REST APIs.

We will use Oracle Cloud Infrastructure SDK for Python

Below two methods can be used to fetch Audit logs –

1.1 OCI Logging search API (SearchLogsDetails)

Invoke oci.loggingsearch.models.SearchLogsDetails to perform log queries, as we search in OCI Logging UI Search.

Refer example – Export OCI Audit Logs in CSV format for a custom time range

You need to pass query statement as you can query in Logging UI along with start time & end time

Query variable contains – Compartment ID, User Principle, Events, Event Attributes etc., same way you query in Logging UI, this search provides more flexibility for adhoc searches.

Sample Code –

Below is Sample code how to extract event from API, you need to extend this method to write as file in Object Storage & then use it inside Oracle Functions to be called Via REST API or whatever ways you need to consume it.

import oci
from datetime import datetime, timedelta, timezone

# Load OCI config from default location (~/.oci/config) and default profile
config = oci.config.from_file()

# Optional: print config to confirm it's loading correctly
# print(config)

# Initialize LogSearchClient
client = oci.loggingsearch.LogSearchClient(config)

# Replace this with your compartment OCID (tenancy or sub-compartment)
compartment_id = config["tenancy"]

# Time range: last 1 day
# Use explicit time range (example: last 1 hour)
end_time = datetime.now(timezone.utc)
start_time = end_time - timedelta(hours=1)

# Convert to ISO 8601 string with 'Z' for UTC
iso_start = start_time.strftime("%Y-%m-%dT%H:%M:%S.%f")[:-3] + "Z"
iso_end = end_time.strftime("%Y-%m-%dT%H:%M:%S.%f")[:-3] + "Z"
# Print to verify
print(f"Query Time Range:\nStart: {iso_start}\nEnd:   {iso_end}")

# Query to Pass for selected compartment and identity events

query = f'search "{compartment_id}/_Audit" "{compartment_id}" | where upper(data.eventName) in (\'ACCESSAPP\', \'INTERACTIVELOGIN\', \'MODIFYSSOSESSION\', \'VERIFYMFATOKEN\', \'TOKENREQUEST\', \'SUPPORTACCOUNTSAMLREQUEST\', \'FEDERATEDINTERACTIVELOGINATTEMPT\', \'FACTORMFA\', \'DELETESESSION\', \'CHANGEPASSWORD\', \'AUTHCODEREQUEST\') | sort by datetime desc'

print(query)

# Prepare search request
search_details = oci.loggingsearch.models.SearchLogsDetails(
    time_start=start_time,
    time_end=end_time,
    search_query=query,
    is_return_field_info=False
)

# Execute search

print("Execute search.")

response = client.search_logs(search_logs_details=search_details)
print("Status Code:", response.status)
#print("Headers:", response.headers)
#print("Data:", response.data)

results = response.data.results

if results:
    for item in results:
     #   print(item)
      continue  # Skip non-matching domains
else:
    print("No results found or query failed.")

# Define expected fields
fields = [
    "actorName", "eventId", "httpResponseStatus",
    "ssoLocalIp", "domainDisplayName", "domainName", "actorType",
    "message", "userAgent", "authType", "callerId", "callerName",
    "credentials", "ipAddress", "principalName"
]

# Print header
print("|".join(fields))

# Iterate through each result
for item in response.data.results:
    log_data = item.data.get("logContent", {}).get("data", {})
    additional = log_data.get("additionalDetails", {})
    identity = log_data.get("identity", {})

    row = [
        str(additional.get("actorName", "")),
        str(additional.get("eventId", "")),
        str(additional.get("httpResponseStatus", "")),
        str(additional.get("ssoLocalIp", "")),
        str(additional.get("domainDisplayName", "")),
        str(additional.get("domainName", "")),
        str(additional.get("actorType", "")),
        str(log_data.get("message", "")),
        str(identity.get("userAgent", "")),
        str(identity.get("authType", "")),
        str(identity.get("callerId", "")),
        str(identity.get("callerName", "")),
        str(identity.get("credentials", "")),
        str(identity.get("ipAddress", "")),
        str(identity.get("principalName", ""))
    ]

    print("---------")
    print("|".join(row))

Response variable will return JSON Payload response as per Audit REST API Schema.

1.2 OCI Audit API (list_call_get_all_results)

Automatically fetches more data from the service until the no more records are available

Use oci.pagination.list_call_get_all_results to fetch complete results efficiently

Refer pagination API Sample Code using oci-python-sdkYou need to pass Compartment ID (tenancy ID), start time & end time & it will return all information till all pages are fetched recursively, this way you can export entire audit logs for provided time range.

Sample Code –

Below is Sample code how to extract event from API, you need to extend this method to write as file in Object Storage & then use it inside Oracle Functions to be called Via REST API or whatever ways you need to consume it.

import oci

from datetime import datetime, timedelta, timezone

config = oci.config.from_file("~/.oci/config", "DEFAULT")

audit_client = oci.audit.AuditClient(config)

#print(config["region"])

# Set compartment OCID

compartment_id = config["tenancy"]

# Define time range (last 1 hour)

end_time = datetime.now(timezone.utc)

start_time = end_time - timedelta(hours=10)

# Get ALL events,

response = oci.pagination.list_call_get_all_results(

    audit_client.list_events,

    compartment_id=compartment_id,

    start_time=start_time,

    end_time=end_time

)

# Print header

print("event_time | event_id | principal_name | domain | Action | Device | IP | Event")

print('#####')

# Track if any logs matched

matched = False

count = 0

# Filter and display

for event in response.data:

    data = event.data

    #print(data)

    identity = getattr(data, "identity", None)

    additional_details = getattr(data, "additional_details", None)

    domain = additional_details.get("domainDisplayName", "-") if additional_details else "-"

# FILTER: Only show events with domain = exfhtest

    if domain != "XX":

       continue  # Skip non-matching domains

    # EXCLUDE: Skip if principal name or event contains 'rats_monitor'

    if "rats_monitor" in (getattr(identity, "principal_name", "").lower()):

        continue  # Skip events triggered by rats_monitor

    #print(data)

    print('---------------------------------------------------------------------------')

    FulleventId = additional_details.get("eventId", "-") if additional_details else "-"

    #resource_name = getattr(event, "resource_name", "-")

    action = getattr(data, "event_name", "-")

    principal_name = getattr(identity, "principal_name", "-") if identity else "-"

    user_agent= getattr(identity, "user_agent", "-")

    ip_address= getattr(identity, "ip_address", "-")

    print(f"{event.event_time} | {event.event_id} | {principal_name} | {domain}  | {action} | {user_agent} | {ip_address} | {FulleventId}")

    matched = True

    count += 1

    if count >= 100:

        break  # STOP after 100 rows

# If no logs matched, print a message

if not matched:

    print(f"\nNo logs found for domain 'exfhtest' between {start_time} and {end_time}.")

Response variable will return JSON Payload response as per Audit REST API Schema.

2 Using Service Connector

Service Connector in OCI Logging is used to stream log data from one OCI service (like Logging or Audit) to another destination (like Object Storage, Streaming, Functions, Topics, Monitoring, etc.)

We will use Standard Source – _Audit log group provided by OCI Audit.

We will cover below targets , you can refer for more scenarios

2.1 Stream logs to Oracle Streaming for real-time processing or alerting.

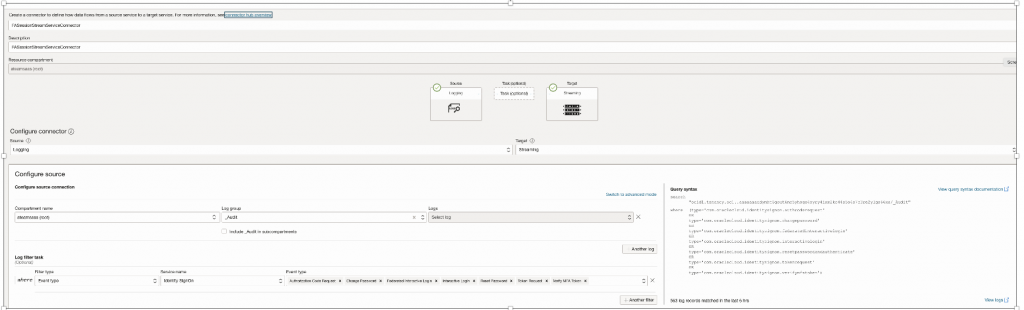

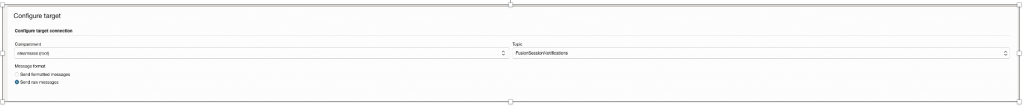

Create Connector, Source as Log group – _Audit , Target as StreamFilter on OCI Service Name & OCI Event Type which you want to capture.Select All Event Types for Service – Identity SignOn.

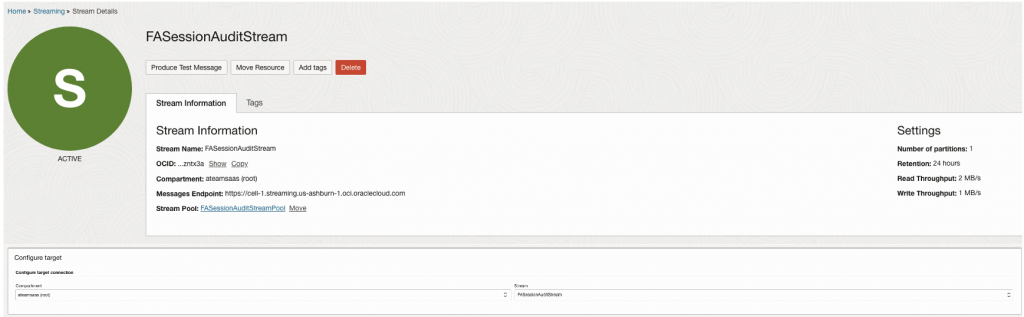

Define Oracle Stream & use that as Target

Create Policies so that Connector can Access Target to Stream data.

Script to test if Stream is working –

import oci

import base64

import time

# Load config from ~/.oci/config (or specify config_path, profile_name)

config = oci.config.from_file()

# Replace with your actual values

stream_ocid = "ocid1.stream. "

# your stream endpoint

stream_endpoint = "https://<XXX>.streaming.us-ashburn-1.oci.oraclecloud.com"

# Create StreamClient with custom endpoint

stream_client = oci.streaming.StreamClient(config, service_endpoint=stream_endpoint)

# Create a cursor to read messages

cursor_details = oci.streaming.models.CreateCursorDetails(

    partition="0",  # assuming 1 partition

    type="TRIM_HORIZON"

)

cursor = stream_client.create_cursor(stream_ocid, cursor_details).data

# Read messages

get_messages_result = stream_client.get_messages(stream_ocid, cursor.value, limit=10)

print("Read messages:")

for msg in get_messages_result.data:

    print("Key:", msg.key, "Value:", base64.b64decode(msg.value).decode())

2.2 Export logs to Object Storage for long-term retention and analysis.

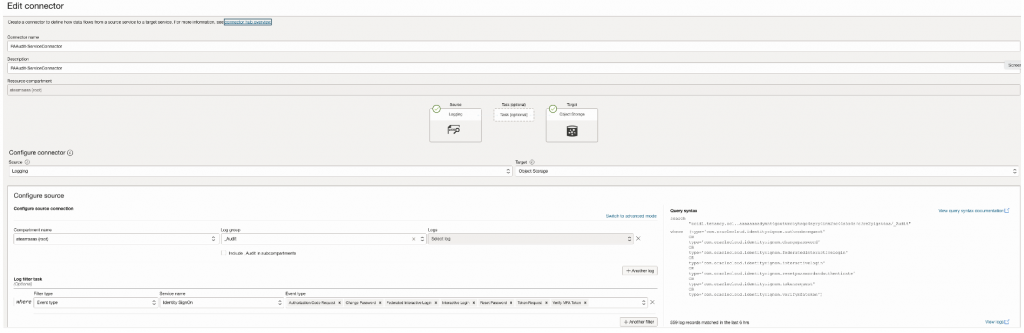

Create Connector, Source as Log group – _Audit , Target as Object Storage.

Filter on OCI Service Name & OCI Event Type which you want to capture.

Select All Event Types for Service – Identity SignOn

Define Object Storage Bucket & use that as Target

Create Policies so that Connector can Access Target to Write files to Object Storage.

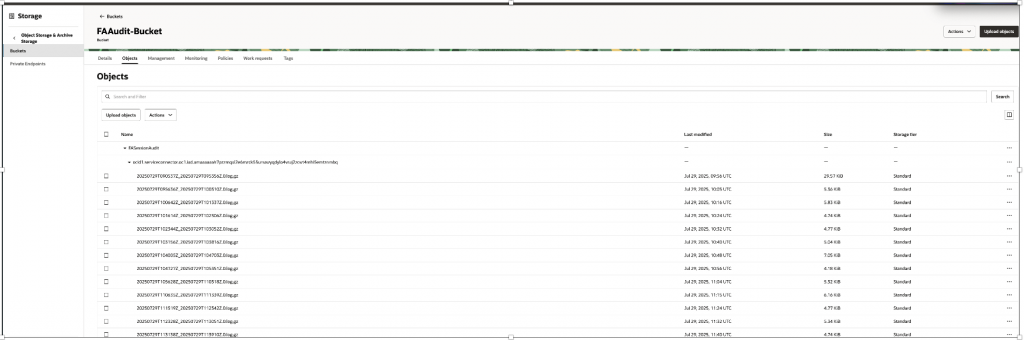

After Connector is activated it will start writing files frequently –

2.3 Using Topics for Notifying external receipting using – Email, Slack, SMS

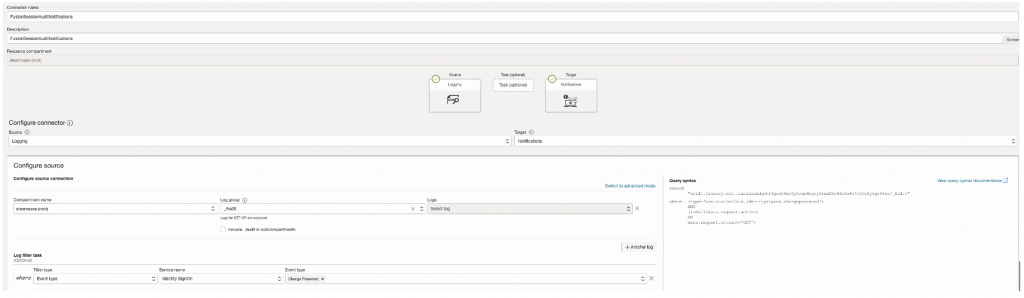

Create Connector, Source as Log group – _Audit , Target as Stream

Filter on OCI Service Name & OCI Event Type which you want to capture.

Select Event Types for Service – Identity SignOn in which you want to be notified, in below case I have used event – Change Password Event.

Define Topic & use that as Target

Create Policies so that Connector can Access Target to Send Notification to Topic.

Check if mail Notification is received after Event occurred.

3.Using OCI Logging UI

3.1 Saved Search

OCI Logging Saved Search – A predefined query in OCI Logging that filters and retrieves log data based on custom criteria for quick access and analysis

Create Saved Searches and build custom dashboards to visualize and monitor audit events interactively.

In our case refer Search query being used, this uses Identity SignOn Events.

Search Query –

Change <ocid1.tenancy.oc1..XXXXX> to your tenancy ID
Change <IdentityDomainDisplayName> to Identity Domain Name of Fusion Application

search "<ocid1.tenancy.oc1..XXXXX>"

| sort by datetime desc | where upper(data.eventName)

in ('ACCESSAPP', 'INTERACTIVELOGIN', 'MODIFYSSOSESSION', 'VERIFYMFATOKEN', 'TOKENREQUEST', 'SUPPORTACCOUNTSAMLREQUEST', 'FEDERATEDINTERACTIVELOGINATTEMPT', 'FACTORMFA', 'DELETESESSION', 'CHANGEPASSWORD', 'AUTHCODEREQUEST') and (data.additionalDetails.actorName != 'rats_monitor') and (data.additionalDetails.domainDisplayName ='<IdentityDomainDisplayName>')

| select data.additionalDetails.domainDisplayName as Domain, data.additionalDetails.actorDisplayName as User, data.additionalDetails.actorName as Login, data.additionalDetails.eventId as "Success/Failure", data.additionalDetails.ssoRp as Application, data.identity.ipAddress as "IP Address", data.identity.userAgent as "User Agent",time_format(datetime, 'yyyy-MM-dd hh:mm:ss z') as Date

However this UI method has limitations , You can only query for 14 days range & It renders limited data (Rows within 500 to 1000) , anything beyond that , UI will not render all data & show this warning message –

In this case to Extract data OCI Logging Search API with pagination controls should be used as explained in Section – 4.2 OCI Logging Search API as REST Method OR 1.1 OCI Logging search API (SearchLogsDetails) as SDK method.

3.2 OCI Dashboard

OCI Dashboard – A customizable visual interface in OCI that displays metrics, logs, and saved searches in a unified, interactive view for monitoring and insights

Refer this working example how to create Dashboard report from Saved Search – Generate Identity and Access Management Reports from Oracle Cloud Infrastructure Audit

4 Using OCI REST API via Middleware (e.g., Oracle Integration Cloud)

OCI provides two mechanisms to access audit data Via REST : the Audit REST API for authoritative extraction and the Logging Search API for query-based analysis of recent events, this we have already discussed in Main Blog – – Methods and ways to extract OCI Events using OCI Audit and Integrate into external systems with Use Case Characteristics, refer section (Using OCI REST API via Middleware (e.g., Oracle Integration Cloud)

We will explain how to get Fusion Session information using those APIs.

4.1 OCI Audit REST API

Bulk Export of OCI Audit

API Document – https://docs.oracle.com/en-us/iaas/api/#/en/audit/20190901/AuditEvent/ListEvents

Operation – GET

EndPoint – https://audit.us-ashburn-1.oraclecloud.com/20190901/auditEvents?compartmentId=<ocid1.tenancy.oc1..> &startTime=2025-09-20T00:00:00Z&endTime=2025-09-21T00:00:00Z

Replace <ocid1.tenancy.oc1..> with your tenancy ID & StartTime, EndTime as desired.

End Point URL Depends on OCI region, please check accordingly .

https://docs.oracle.com/en-us/iaas/api/#/en/audit/20190901/

Since parameters are limited to compartment ID, start time & end time, Post Processing of records is required to filter records over Identity Domain & IdentitySignOn events.

4.2 OCI Logging Search API

Search Audit Log for specific Query

API Document – https://docs.oracle.com/en-us/iaas/api/#/en/logging-search/20190909/SearchResult/SearchLogs

Operation – POST

EndPoint – https://logging.us-ashburn-1.oci.oraclecloud.com/20190909/search

End Point URL Depends on OCI region, please check accordingly .
https://docs.oracle.com/en-us/iaas/api/#/en/logging-search/20190909/

Request Body : Query to Get Login/Logout Session Information over Fusion Domain.

Replace – Tenancy OCID with <ocid1.tenancy.oc1..>
Identity Domain Display Name with <IdentityDomainDisplayName>

{

"timeStart": "2025-12-08T18:32:34.862Z",

"timeEnd": "2025-12-20T19:32:34.862Z",

"isReturnFieldInfo": false,

"searchQuery": "search \"<ocid1.tenancy.oc1..>/_Audit\" | sort by datetime desc | where (data.additionalDetails.eventId = 'sso.session.create.success' or data.additionalDetails.eventId = 'sso.authentication.failure' or data.additionalDetails.eventId = 'sso.session.delete.success') and (data.additionalDetails.actorName != 'rats_monitor') and (data.additionalDetails.domainDisplayName = ‘<IdentityDomainDisplayName>')",

"limit": 100

}

This Log Search API would work between 14 days gap (from timeStart to timeEnd ).

Pagination – You can apply Pagination controls using response header that will contain parameter – opc-next-page, If this header exists, more data is available, continue sending requests with additional header (opc-next-page: eyJvZmZzZXQiOjUwMH0=) received from last response until opc-next-page header is absent in response, which means you have reached end of result.
Refer Pagination – https://docs.oracle.com/en-us/iaas/Content/API/Concepts/usingapi.htm#nine

Since Oracle Cloud Infrastructure (OCI) REST APIs do not support Basic Authentication (username/password) — you must use OCI Signature-based authentication, Oracle Integration Cloud (OIC) Gen 3 and other OCI services enforce OCI Signature Version 1.

You need to setup OCI API keys for the user based on which REST APIs will connect to the OCI tenancy.

Use the REST Adapter with OCI Signature-based authentication to programmatically retrieve audit events into workflows or third-party tools.

Refer OCI Gen3 Connection Method – OCI Signature Version 1

Refer Oracle Cloud Infrastructure – REST APIs (Postman Workspace) to test run OCI Audit & Log Search API’s.

https://www.postman.com/oracledevs/oracle-cloud-infrastructure-rest-apis/overview

Conclusion

Each method for accessing and analyzing OCI Audit logs offers distinct advantages based on use case, scalability, and integration needs

Need / Scenario	Methods
Ad-hoc search and filtering of audit or session events	OCI Logging Search via CLI/SDK (SearchLogsDetails) OR REST (POST /20190909/search)
Bulk download of audit events programmatically	OCI Audit API via CLI/SDK (list_call_get_all_results) OR REST (GET /20190901/auditEvents)
Near-real-time log delivery or long-term archival	OCI Service Connector Hub targeting OCI Streaming or Object Storage
Dashboards and saved reports for audit or security teams	OCI Logging UI using Saved Searches and Dashboards

Align the choice of method with your organization’s operational model, tooling maturity, and compliance requirements.

Methods and ways to extract Session Information using OCI Audit and Integrate into external systems

Introduction

Details

1. OCI CLI/SDK

1.1 OCI Logging search API (SearchLogsDetails)

1.2 OCI Audit API (list_call_get_all_results)

2 Using Service Connector

2.1 Stream logs to Oracle Streaming for real-time processing or alerting.

2.2 Export logs to Object Storage for long-term retention and analysis.

2.3 Using Topics for Notifying external receipting using – Email, Slack, SMS

3.Using OCI Logging UI

3.1 Saved Search

3.2 OCI Dashboard

4 Using OCI REST API via Middleware (e.g., Oracle Integration Cloud)

4.1 OCI Audit REST API

4.2 OCI Logging Search API

Conclusion

References

Ranveer Tiwari

Consulting Solution Architect | A-Team - Cloud Solution Architects

Methods and ways to extract OCI Events using OCI Audit and Integrate into external systems

Configure the DNS resolution for Oracle Database at AWS

Methods and ways to extract Session Information using OCI Audit and Integrate into external systems

Introduction

Details

1. OCI CLI/SDK

1.1 OCI Logging search API (SearchLogsDetails)

1.2 OCI Audit API (list_call_get_all_results)

2 Using Service Connector

2.1 Stream logs to Oracle Streaming for real-time processing or alerting.

2.2 Export logs to Object Storage for long-term retention and analysis.

2.3 Using Topics for Notifying external receipting using – Email, Slack, SMS

3.Using OCI Logging UI

3.1 Saved Search

3.2 OCI Dashboard

4 Using OCI REST API via Middleware (e.g., Oracle Integration Cloud)

4.1 OCI Audit REST API

4.2 OCI Logging Search API

Conclusion

References

Authors

Ranveer Tiwari

Consulting Solution Architect | A-Team - Cloud Solution Architects

Methods and ways to extract OCI Events using OCI Audit and Integrate into external systems

Configure the DNS resolution for Oracle Database at AWS
