Multicloud is the new normal. In addition to OCI, enterprises often run workloads on platforms such as AWS and need secure access across cloud boundaries. In these scenarios, OCI Identity Domain acts as an enterprise-grade identity provider, enabling OCI workloads to authenticate to AWS using standards-based OpenID Connect and short-lived tokens, instead of creating IAM users or managing long-lived credentials.

This blog explains how to configure OCI Identity Domain as an OIDC identity provider and use it to assume an AWS IAM role using AWS STS AssumeRoleWithWebIdentity.

Step 1: Create an Integrated Application in OCI Identity Domain

Navigate to:

Identity & Security → Domains → Your Domain → Integrated Applications

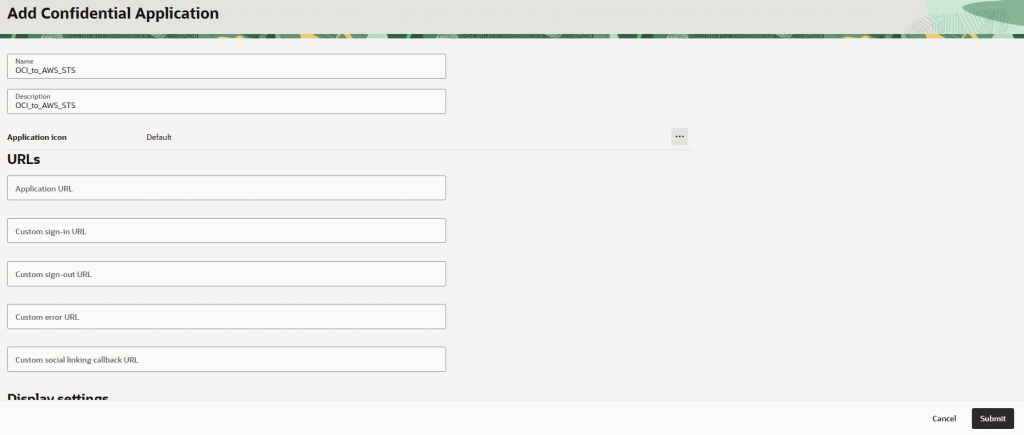

Create a Confidential Application and enable OAuth.

Step 2: Configure Resource Server and OAuth Client

This step has two required parts. The resource server must be configured before the client.

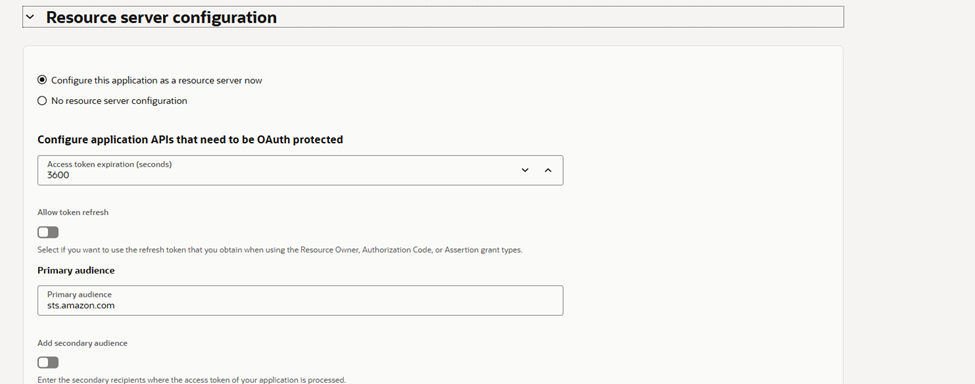

2.1 Configure Resource Server

Inside the application:

  1. Go to OAuth Configuration and click Edit OAuth configuration
  2. Click on Configure this application as a resource server now
  3. Set Primary Audience to: sts.amazon.com

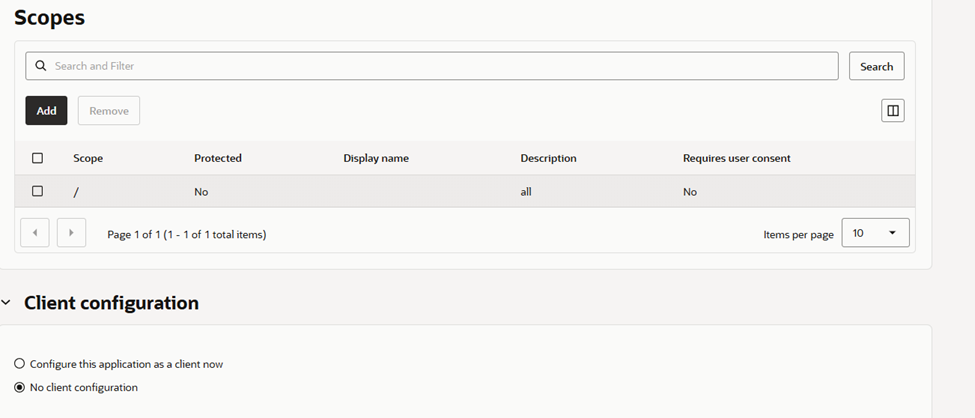

  1. Under Scopes, add: / under scope and description all

Why this matters:

  • AWS STS validates the aud claim
  • sts.amazon.com (or any value that will be used in AWS IAM Role Trust Policy) must appear in the token audience
  • The / scope is required for client credentials flow
  • Submit.

2.2 Configure OAuth Client

Now configure the client side.

  1. Go to OAuth Client Configuration -> click Edit OAuth configuration -> Configure this application as a client now

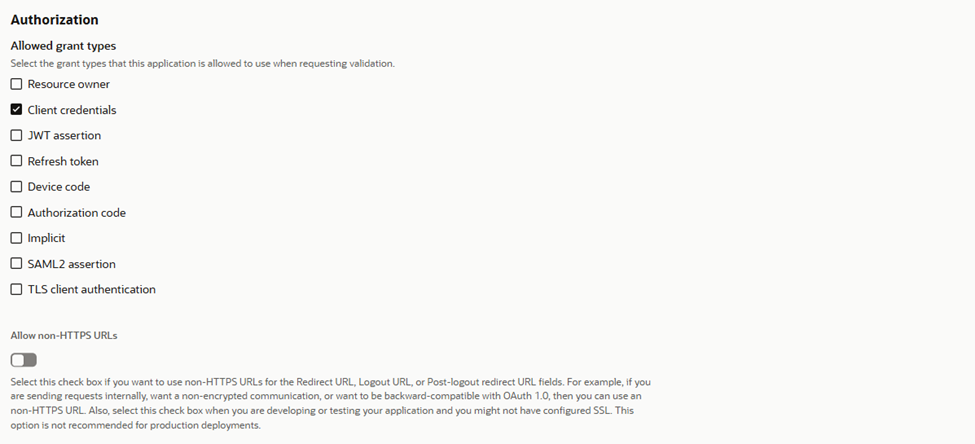

  2. Enable Client Credentials grant

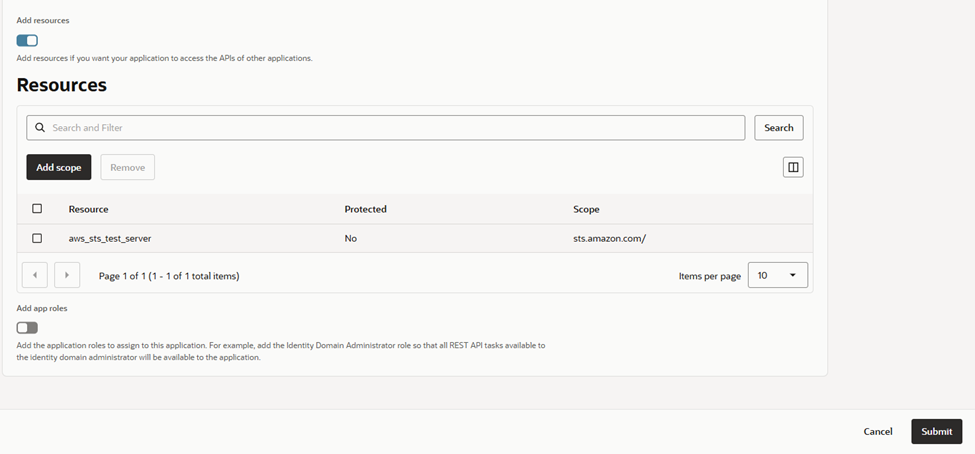

  1. Under Resources:
    • Enable Add Resources
    • Select the resource server you created in the previous step

This explicitly binds the client to the resource server that issues tokens for AWS.

2.3 Activate the Application

Once both configurations are complete:

  • Activate the application

Step 3: Update Domain OAuth Token Issuance Policy

Navigate to:

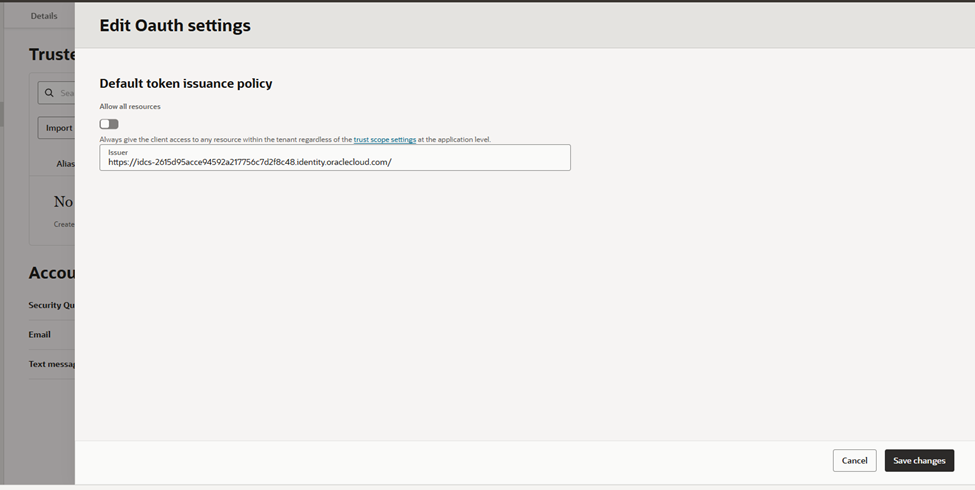

Domain → Security → OAuth Settings → Default Token Issuance Policy

Update the Issuer value.

What to change

  • Change issuer from: identity.oraclecloud.com
  • Change issuer to: https://idcs-<domain-id>.identity.oraclecloud.com

This value becomes the JWT iss claim.

Why this matters

  • AWS validates the JWT iss claim and uses it to discover the OpenID configuration and JWKS endpoint.
  • The default identity.oraclecloud.com issuer will not work

Step 4: Domain Settings

Navigate to:

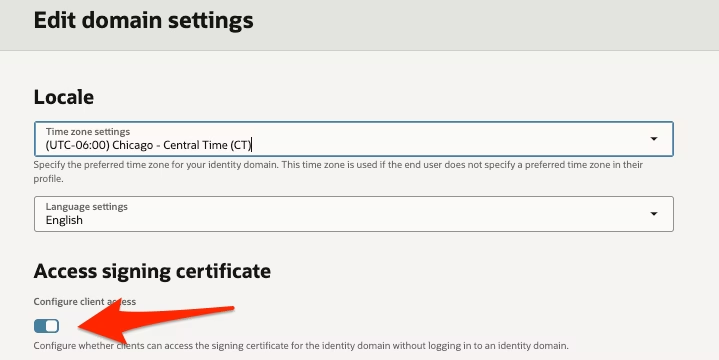

Domain → Settings → Domain Settings

Make sure:

  • Configure client access is enabled

Step 5: Create AWS IAM Role Trust Policy

Use this trust policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::<account-id>:oidc-provider/idcs-<domain-id>.identity.oraclecloud.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "idcs-<domain-id>.identity.oraclecloud.com:aud": "sts.amazon.com"
        }
      }
    }
  ]
}

The aud condition must match what you configured in the OCI resource server.

Step 6: Generate OAuth Token from OCI

Use client credentials flow:

curl -X POST \
  -u "<client_id>:<client_secret>" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&scope=/" \
  https://idcs-<domain-id>.identity.oraclecloud.com/oauth2/v1/token

Save the returned access_token as a file, for example:

echo "<access_token>" > idtoken.jwt

Step 7: Call AWS STS

aws sts assume-role-with-web-identity \
  --role-arn arn:aws:iam::<account-id>:role/<role-name> \
  --role-session-name oci-oidc-test \
  --web-identity-token file://idtoken.jwt \
  --duration-seconds 900

AWS returns temporary credentials if everything is correct.

Common Breakpoints

  • Resource server not configured → token rejected
  • Wrong issuer → AWS rejects JWT
  • Incorrect audience Claim value or multiple values → STS fails

Every step here is required. Skipping any one will fail.

Conclusion

This setup gives you:

  • Short-lived AWS credentials
  • No static secrets
  • Centralized identity in OCI
  • Standards-based OIDC integration

This pattern scales well and applies to other clouds and SaaS platforms that support OIDC.
